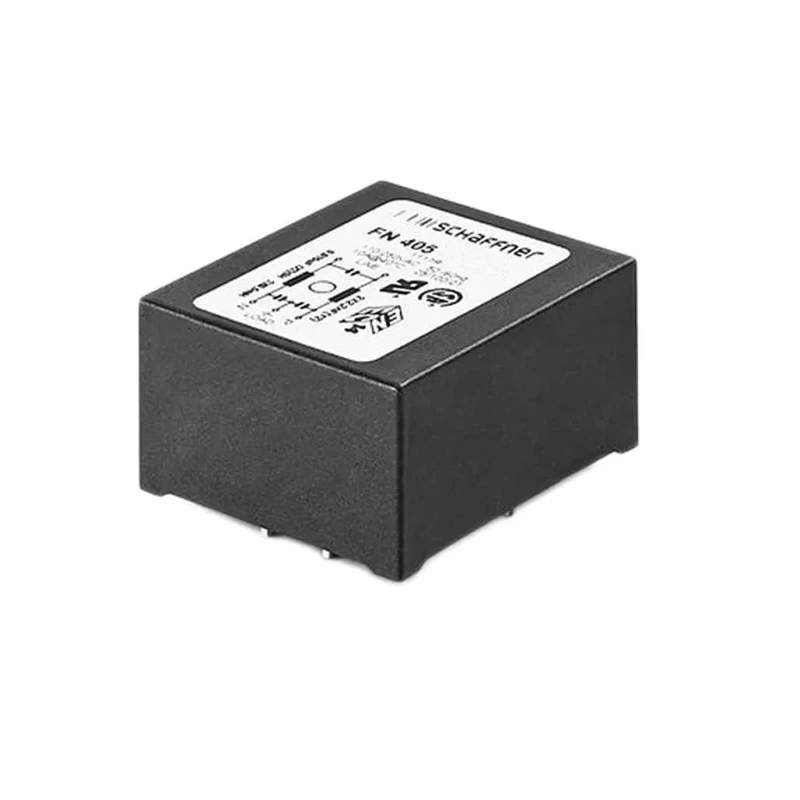

Schaffner Single-Phase PCB EMI Filter 3A 250V AC 400Hz Pin Termination FN405

Schaffner FN405 is a single-phase PCB EMI filter designed to provide efficient filtering for electrical and electronic equipment. This filter supports a maximum current of 3A and operates at 250V AC with a frequency of 400Hz, making it suitable for applications requiring reliable EMI suppression on single-phase power lines. With pin termination and PCB through-hole mounting, it ensures easy and secure installation on printed circuit boards.

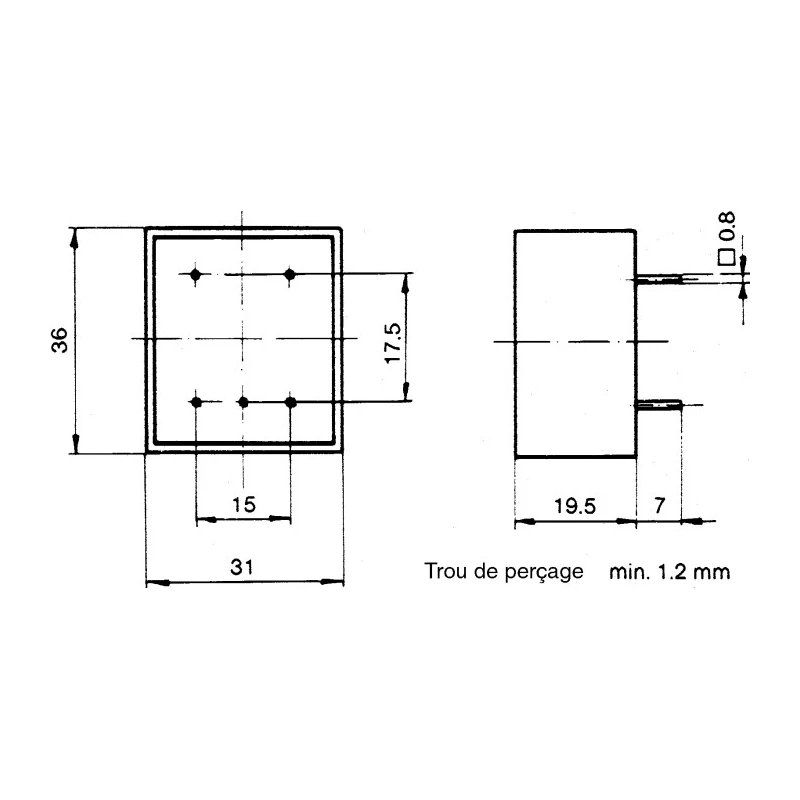

The filter features a robust plastic housing with a low profile, measuring 36mm in length, 31mm in depth, and 19.5mm in height, making it compact enough for integration into small to medium-sized machines, household appliances, switch-mode power supplies, and test & measurement instruments. It operates safely in a temperature range from -25°C to 100°C, demonstrating excellent thermal stability.

Performance-wise, the FN405 series utilizes chokes with high saturation resistance to maintain good conducted attenuation and excellent thermal behavior. The filter's capacitance of 15nF and inductance of 2mH effectively reduce electromagnetic interference, with a leakage current of 373μA ensuring electrical safety and compliance.

The product is UL recognised and CSA certified, reflecting its adherence to important international standards. It is ideal for industrial, laboratory, electronic manufacturing, and electrical equipment applications where EMI filters are critical to maintaining signal integrity and regulatory compliance.

Designed for single-phase PCB mounting applications. Capacitance of 15nF and inductance of 2mH provide effective EMI attenuation. Operating temperature from -25°C to 100°C for versatile environments. Plastic housing with low profile supports space-constrained designs.

Pin termination style for reliable mechanical and electrical connections. Leakage current limited to 373μA for enhanced safety. Compact dimensions enable integration in various equipment types. UL recognised and CSA certified for quality assurance.

This EMI filter is a dependable component for enhancing electronic device performance by minimizing electromagnetic interference, helping maintain device functionality and prolong equipment lifespan. Browse other EMI Filters and electronic components at EnvMart for complementary solutions.
