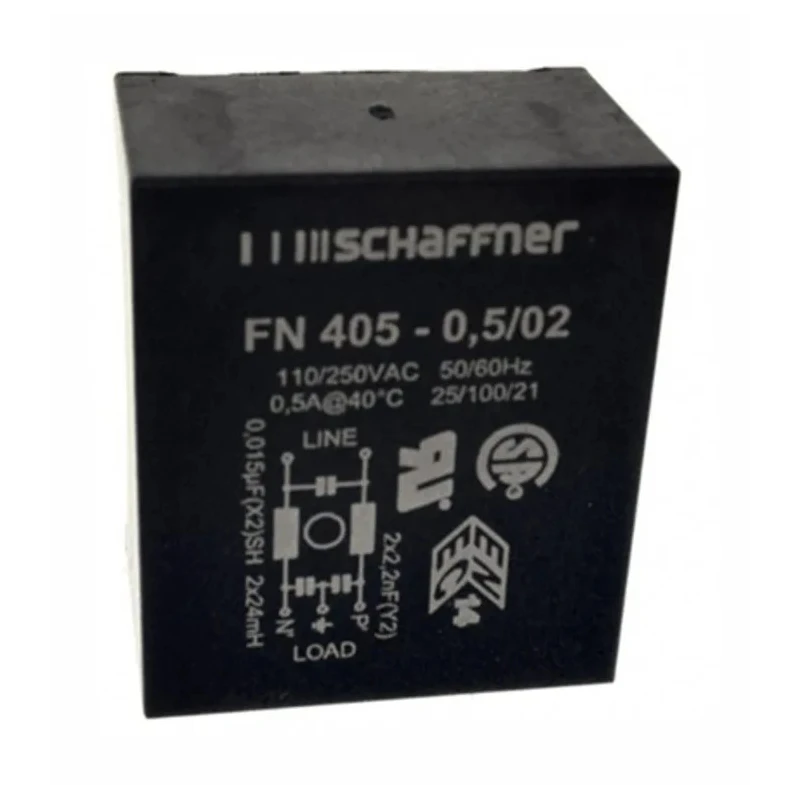

Schaffner PCB EMI Filter FN405 500 mA 250V AC 400Hz Single Phase Pin Termination FN405

Free Delivery in India | Lowest Global Shipping Charges

Schaffner PCB EMI Filter FN405 500 mA 250V AC 400Hz Single Phase Pin Termination FN405

Name: Schaffner PCB EMI Filter FN405 500 mA 250V AC 400Hz Single Phase Pin Termination FN405
Brand: Schaffner
SKU: 191053
Price: 19.29 USD
Availability: InStock



Category Power Line Filters Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	19.5mm
Length	36mm
Model	FN405
Depth	31mm
Mount Type	PCB
Operating Frequency	400Hz
Series	FN405
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	15nF
Minimum Operating Temperature	-25°C
Maximum Current	500mA
Number of Phases	1
Leakage Current	373μA
Maximum Voltage	250V ac
Inductance	24mH
Termination Style	Pin

Key Features

Designed for easy and fast PCB mounting.
Provides effective EMI filtering with 15nF capacitance and 24mH inductance.
Operates within a temperature range of -25°C to 100°C for reliable performance.

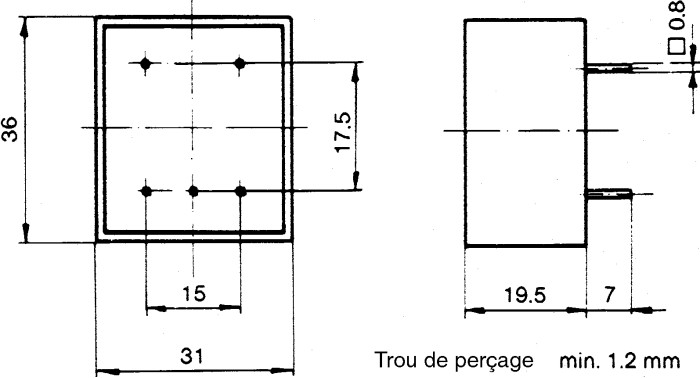

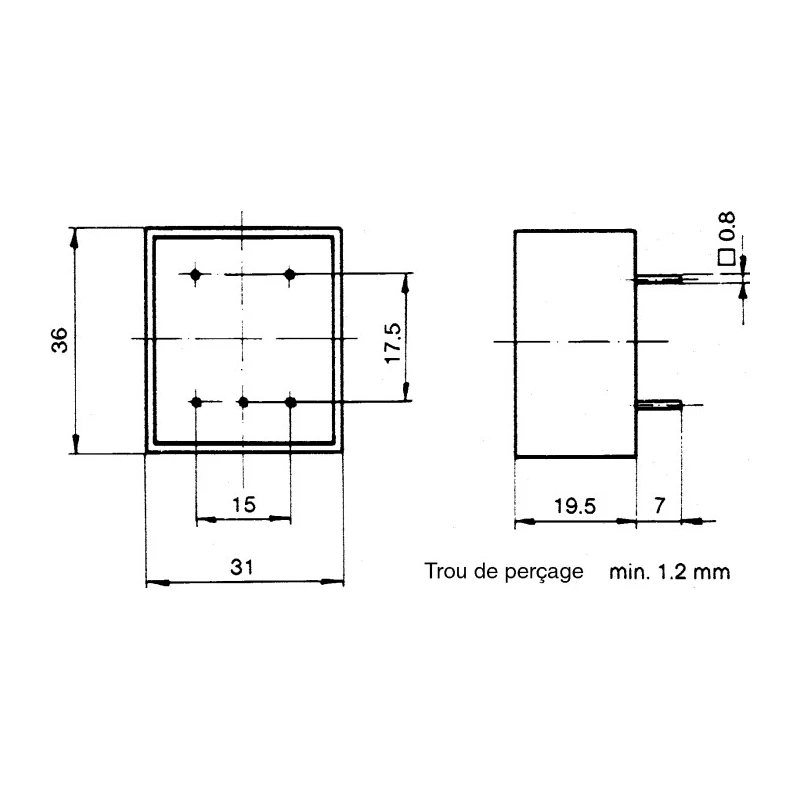

Compact size with dimensions 36mm length, 31mm depth, and 19.5mm height.
Suitable for electrical & electronic equipment including switch-mode power supplies and test instruments.
Features low-profile plastic housing and good conducted attenuation.
High saturation resistance chokes ensure excellent thermal behavior.
Single-phase two-line filter for various applications.

Product Description

Schaffner FN405 PCB EMI Filter is a specialized single-phase filter designed to be mounted easily on printed circuit boards. This filter supports a maximum current of 500 mA and a maximum voltage rating of 250V AC at an operating frequency of 400Hz, making it ideal for precise EMI noise suppression in sensitive electronic circuits.

The filter includes a capacitance of 15nF and an inductance of 24mH, offering excellent noise attenuation and protection against electromagnetic interference. It operates reliably in harsh temperature environments ranging from -25°C to 100°C. The compact dimensions of 36mm length, 31mm depth, and 19.5mm height enable easy integration into small to medium sized electronic assemblies.

The robust two-line filter design utilizes chokes with high saturation resistance and superior thermal behavior combined with a durable low-profile plastic housing. Termination is via pin type suitable for PCB through-hole mounting, facilitating quick and efficient board assembly.

This power line filter is well suited for applications in electrical and electronic equipment, switch-mode power supplies, test and measurement instruments, and single-phase power supplies. It helps improve the electromagnetic compatibility of devices, enhancing overall reliability and performance in industrial, laboratory, and manufacturing environments.

While there are no listed approvals or certifications, the filter is designed for quality and durability in general electronic applications where EMI reduction is critical. Easy PCB mounting with pin termination. Compact dimensions for efficient board space usage.

500 mA current capacity at 250V AC for single-phase circuits. Effective EMI attenuation with 15nF capacitance and 24mH inductance. Wide operating temperature range from -25°C to 100°C. Low-profile sturdy plastic housing design.

High saturation resistance chokes for improved thermal performance. Suitable for electrical equipment and test instruments. Operates at 400Hz frequency ideal for specialized applications. Explore more top-quality EMI filters and power line filter solutions in the Electronics Components category on EnvMart for industrial, laboratory, and commercial uses.
