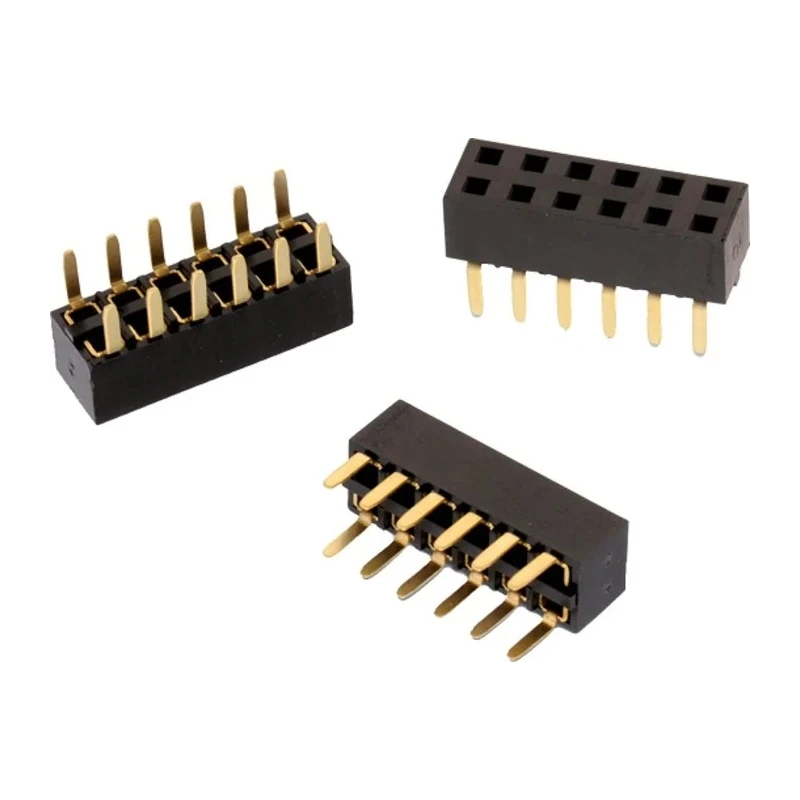

Wurth Elektronik WR-PHD Series Bottom Entry Through Hole PCB Socket 12-Contact 2 Row 2.54 mm Pitch Solder 61301225721
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Bottom Entry |
| Current | 3A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Connector System | Board-to-Board |
Key Features
- The socket features a 2.54 mm pitch for standard PCB layouts.
- It has a current rating of 3A suitable for moderate power applications.
- Constructed from copper alloy contacts with gold plating for enhanced conductivity and corrosion resistance.
- Designed for through hole mounting with bottom entry orientation to facilitate secure connections.
- Withstands operating voltages up to 500V AC for safe electrical performance.
- Supports a wide operating temperature range from -40°C to 105°C for versatile environments.
- Durability ensured by 25 mating cycles for repeated use in industrial and electronics assembly.
- RoHS compliant, meeting environmental and safety standards.
Product Description
Wurth Elektronik 61301225721 is a high-quality bottom entry through hole PCB socket from the WR-PHD series designed for electrical and electronic circuit interconnections. This 12-contact, 2-row socket features a 2.54 mm pitch which fits standard PCB layouts, making it ideal for board-to-board connector systems in industrial, laboratory, and manufacturing environments.
Constructed using copper alloy contacts with gold plating, the socket ensures excellent electrical conductivity and corrosion resistance. It supports current up to 3A and withstands voltages as high as 500V AC. The robust design allows operation within temperature extremes from -40°C up to 105°C, suitable for a variety of demanding applications including electronics production, prototyping, and industrial equipment assembly.
With through hole mount type and bottom entry orientation, the connector system provides secure solder connections and easy installation. The socket guarantees durability with a rated 25 mating cycles, ensuring long service life in repeated use scenarios. Additionally, the product is RoHS compliant, underscoring its adherence to environmental and safety guidelines.
The socket features a 2.54 mm pitch for standard PCB installations. Current rating of 3A to handle moderate electrical loads. Gold-plated copper alloy contacts for reliable electrical performance. Designed for through hole mounting with bottom entry orientation.
Operating voltage of up to 500V AC for safe use. Wide temperature rating from -40°C to 105°C for diverse conditions. Capability for 25 mating cycles ensures durability. RoHS compliant, confirming environmental safety. Manufactured in Taiwan by Wurth Elektronik.
Suitable for industrial, electronics manufacturing, commercial, laboratory, and PCB assembly applications. Explore more PCB Sockets and connectors on EnvMart for advanced connectivity solutions tailored to your precise requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3A, making it suitable for moderate power applications.
It can withstand operating voltages up to 500V AC, ensuring safe electrical performance.
The socket features a pitch size of 2.54 mm, compatible with standard PCB layouts.
This model has 12 contacts, arranged in 2 rows.
The contacts are made from copper alloy and are gold plated for enhanced conductivity and corrosion resistance.
It operates within a wide temperature range from -40°C to 105°C, suitable for diverse environments.
This socket is designed for through hole mounting with a bottom entry orientation, facilitating secure connections.
The socket is rated for 25 mating cycles, ensuring durability for repeated use.
Yes, this model is RoHS compliant, meeting environmental and safety standards.
It uses solder termination, which is standard for secure connections in PCB applications.
The socket is manufactured in Taiwan.
It is suitable for industrial, electronics manufacturing, commercial, laboratory, and PCB assembly applications.
