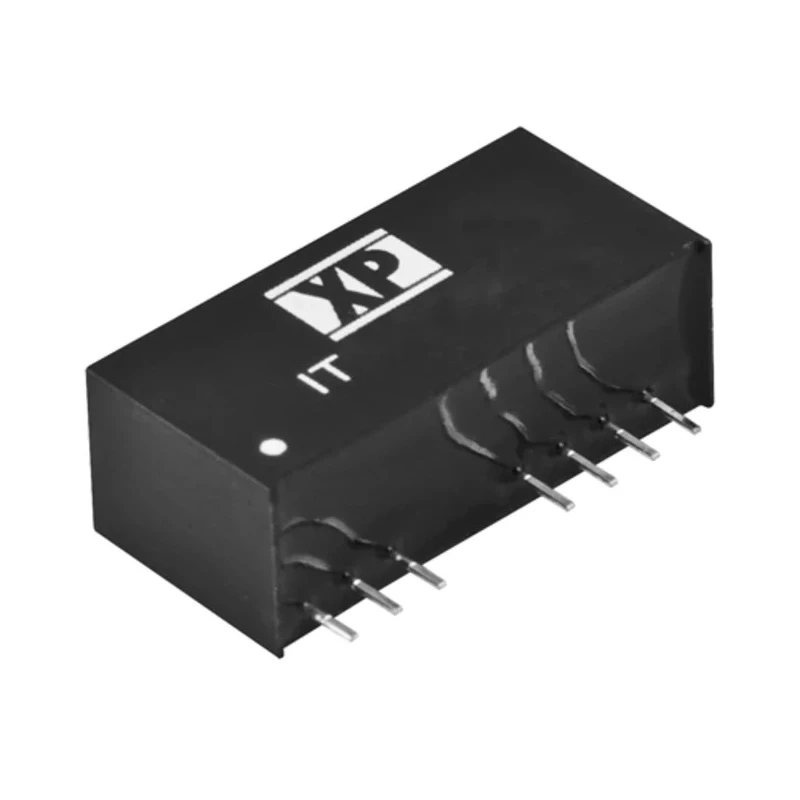

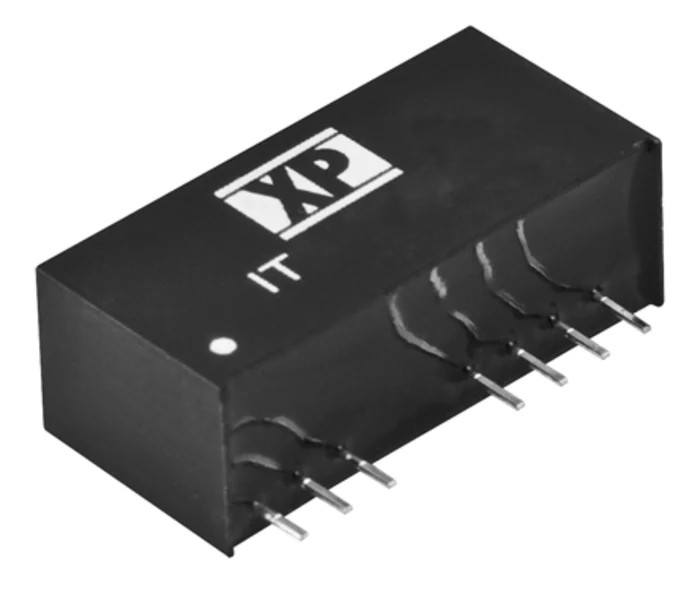

XP Power IT Series DC/DC Converter 12V DC Output, 250mA, 36V DC Max Input, 9V Min Input, 3W Power, Through Hole SIP IT2412SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IT DC/DC Converter, 12V dc/ 250 mA, 36V d |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 26mm |
| Model | IT2412SA |
| Depth | 12.5mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IT |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 4 | 1 input range |
Key Features
- Provides high efficiency up to 85% for energy saving operation.
- Features 1500 VDC isolation for safe electrical separation.
- Supports a wide operating temperature from -40°C to +100°C for reliable performance in harsh environments.
- Compact SIP package with 7 pins, measuring 26mm length, 9.2mm width, and 12.5mm depth.
- Rated MTBF of 1,100,000 hours for high reliability and durability.
- Includes remote on/off control functionality for convenient system integration.
- Output current of 250mA suitable for low power DC applications.
- Ideal for industrial, electronic power supply, and embedded system applications.
Product Description
XP Power IT2412SA is a high-reliability DC/DC converter from the IT Series, offering a regulated single output of 12V DC at 250mA with an output power of 3W. The unit accepts a wide input voltage range from 9V to 36V DC and features through-hole mount design in an industry-standard SIP package, ensuring easy PCB installation.
This converter provides electrical isolation of up to 1500 VDC, enhancing safety in power supply designs. Its high efficiency of 85%, combined with an excellent mean time between failures (MTBF) of 1,100,000 hours, guarantees long-term stable operation in demanding environments.
The device operates reliably over a broad temperature range from -40°C to +100°C, making it suitable for harsh industrial and electronic applications requiring robust performance. The 7-pin SIP package is compact, with dimensions of 26mm length, 9.2mm width, and 12.5mm depth, facilitating integration into space-constrained systems.
Key features include a 2:1 input ratio allowing flexibility for various input sources and remote on/off control for efficient power management. This DC/DC converter is ideal for use in industrial automation, instrumentation, telecommunications, and embedded systems requiring isolated, reliable power conversion.
Regulated 12V DC output at 250mA current. Wide 9V to 36V DC input voltage range with 2:1 ratio. 1500 VDC isolation voltage for safety. High efficiency of 85% maximizes energy savings. Robust operating temperature range from -40°C to +100°C.
Compact 7-pin SIP through-hole package. Mean time between failures (MTBF) of 1,100,000 hours ensures durability. Suitable for industrial, instrumentation, and embedded applications.
XP Power products are engineered for quality and reliability, ensuring your system receives stable and isolated DC power conversion. Explore our range of DC/DC Converters for various power and voltage requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XP Power IT2412SA provides a regulated output voltage of 12V DC with an output current of 250mA.
This unit accepts a wide input voltage range from 9V to 36V DC.
The converter features a high efficiency rating of 85%, optimizing energy savings during operation.
It offers an isolation voltage of 1500 VDC, enhancing safety in power supply designs.
The SIP package measures 26mm in length, 9.2mm in width, and 12.5mm in depth.
It operates reliably within a temperature range of -40°C to +100°C, suitable for harsh environments.
This model has one regulated output.
The MTBF for the IT2412SA is rated at 1,100,000 hours, indicating high reliability.
It features a through-hole mount design, facilitating easy installation on PCBs.
Yes, it includes remote on/off control functionality for convenient system integration.
This converter is ideal for industrial automation, instrumentation, telecommunications, and embedded systems.
It has a 2:1 input ratio, allowing flexibility for various input sources.
