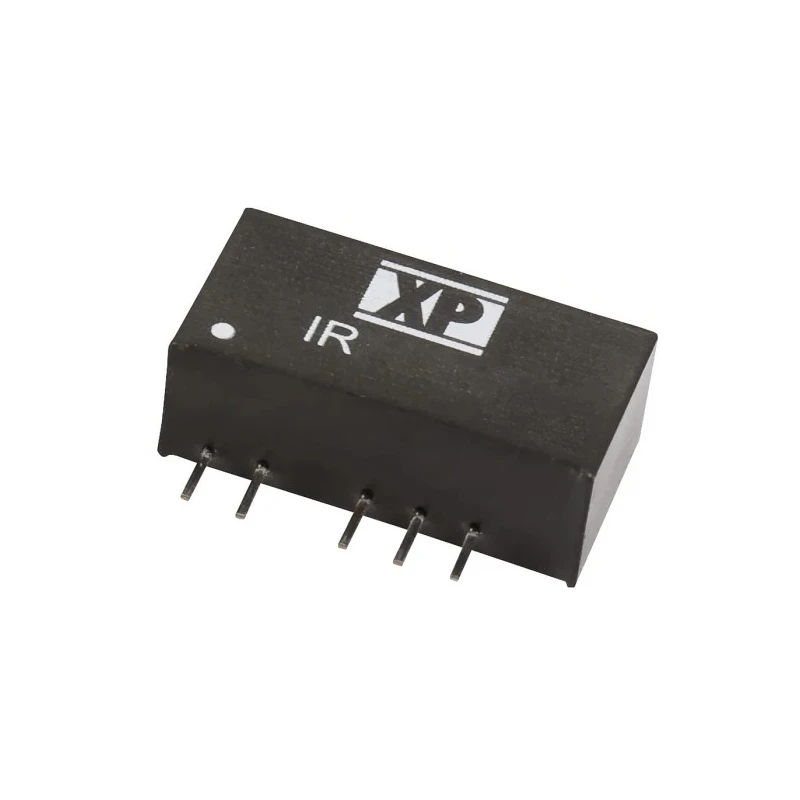

XP Power Isolated DC/DC Converter 5V DC 600mA Output 9V-10.8V Input 3W Through Hole SIP Package IR1205S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IR DC/DC Converter, 5V dc/ 600 mA, 9V Inp |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 19.5mm |
| Model | IR1205S |
| Depth | 10mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IR |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 9V |
| Minimum Input Voltage | 10.8V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact SIP through hole mounting package ensures easy PCB integration.
- Provides galvanic isolation with 1000 VDC isolation voltage for safety.
- Supports dual output configuration for versatile applications.
- Operates reliably across temperature range from -40 °C to +85 °C.
- High efficiency of 85% reduces power loss and thermal dissipation.
- Offers 7-pin configuration compatible with standard layouts.
- Long mean time between failures of 1,100,000 hours ensures reliability.
- Suitable for industrial, communications, and instrumentation power conversion.
Product Description
XP Power IR1205S is a high reliability isolated DC/DC Converter designed to provide a regulated 5V DC output at 600mA from an input voltage range of 9V to 10.8V DC. The device can deliver up to 3W output power, housed in a compact SIP through hole mounting package, which facilitates easy integration into circuit boards.
Featuring galvanic isolation rated at 1000 VDC, the IR1205S ensures electrical isolation between input and output circuits, enhancing safety and noise immunity. The converter offers dual output capability with a 2:1 input voltage ratio, making it adaptable to various power supply requirements.
This converter maintains a high efficiency of 85% minimizing energy loss and heat generation, suitable for use in environments with ambient temperatures ranging from -40 °C to 85 °C. The compact dimensions (19.5mm length, 7.2mm width, 10mm depth) and 7-pin SIP package suit space-constrained designs.
Ideal for use in industrial control systems, communications, medical, and instrumentation applications, the IR series stands out for its robust design and long MTBF of 1,100,000 hours, offering dependable performance over extended lifetimes. This model is manufactured in Taiwan, Province of China and complies with no specific certifications but meets industrial power conversion standards.
Compact SIP through hole packaging for PCB mounting. 1000 VDC galvanic isolation enhances safety. Dual output with 2:1 input voltage ratio. Wide operating temperature range from -40 °C to +85 °C. High efficiency at 85% reduces power consumption.
7-pin configuration allows versatile connectivity. MTBF of 1,100,000 hours ensures long service life. Suitable for industrial, communications, and instrumentation. Explore XP Power products and converters on EnvMart for reliable power solutions in your industrial and electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 5V DC, and it can deliver a maximum output current of 600mA.
The IR1205S operates with an input voltage range of 9V to 10.8V DC.
This model has an efficiency rating of 85%, which helps to minimize power loss and thermal dissipation.
The XP Power IR1205S features a galvanic isolation voltage of 1000 VDC, enhancing safety and noise immunity.
The dimensions of this model are 19.5mm in length, 7.2mm in width, and 10mm in depth.
The maximum operating temperature for the IR1205S is 85°C.
This DC/DC converter has two outputs, allowing for versatile applications.
The IR1205S has a long mean time between failures (MTBF) of 1,100,000 hours, indicating its reliability.
This model utilizes a through hole mounting type, making it suitable for easy PCB integration.
It is suitable for use in industrial control systems, communications, medical, and instrumentation applications.
The package type for this converter is SIP (Single Inline Package), which is compact and designed for through hole mounting.
The input ratio for the IR1205S is 2:1, allowing it to adapt to various power supply requirements.
