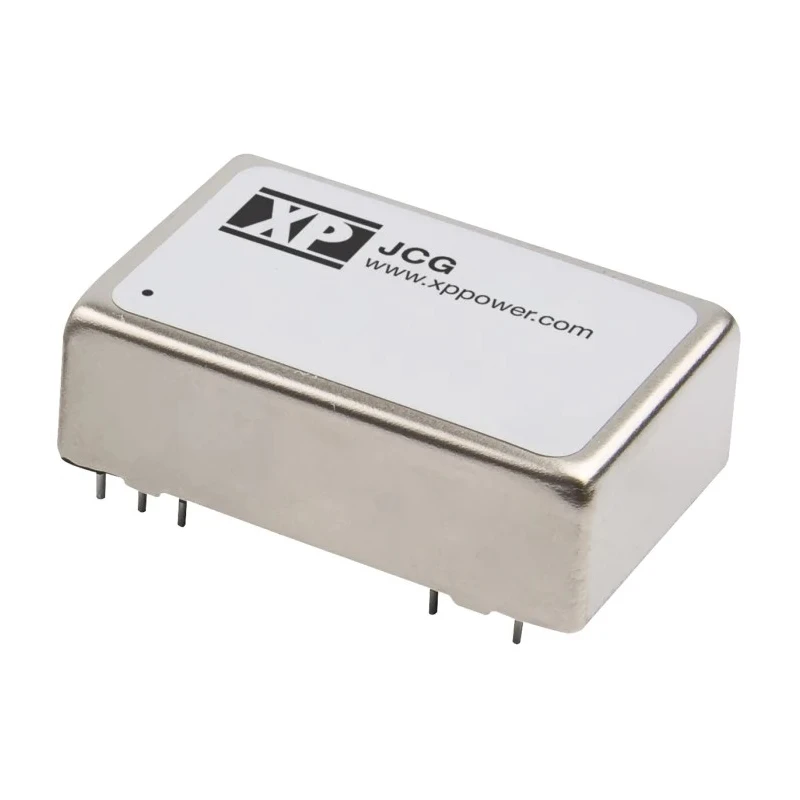

XP Power Isolated DC-DC Converter Through Hole 15V dc Output 500 mA 36V dc Max Input 18V Min Input 15W JCG1524D15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCG DC/DC Converter, 15V dc/ 500 mA, 36V |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 31.75mm |
| Model | JCG1524D15 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCG |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This through hole mounted converter operates with input voltages ranging from 18V to 36V DC.
- Product features a compact DIP package measuring 31.75mm length, 20.32mm width, and 10.16mm depth.
- Designed for reliable use in industrial and electronic applications with operating temperature from -40°C to 100°C.
- Offers high isolation voltage of 1.6kV DC and 89% efficiency ensuring safe and efficient power conversion.
- Equipped with 24 pins and conforms to RoHS standards for environmental compliance.
- This dual-output model belongs to the JCG series known for high power density and robust performance.
Product Description
XP Power JCG1524D15 is a high-performance isolated DC-DC converter designed to deliver reliable 15V DC output voltage at a current of 500 mA and maximum output power of 15W. It supports a wide input voltage range from 18V to 36V DC, enabling versatile usage in various power supply applications.
Housed in a compact dual in-line package (DIP) with dimensions 31.75mm (L) x 20.32mm (W) x 10.16mm (D), this through hole mount converter features 24 pins for easy PCB integration. It achieves isolation voltage of up to 1.6kV DC, suitable for industrial environments needing reliable electrical isolation.
The device maintains operation across a broad temperature range from -40°C to 100°C, ensuring durability in harsh conditions. With an efficiency rating of 89%, it facilitates energy-efficient conversion reducing heat generation.
Part of the XP Power JCG series, this DC-DC converter offers a 2:1 input ratio, providing flexibility and high power density within a standard footprint. The module is RoHS compliant, confirming adherence to environmental and safety regulations.
The dual output nature enhances its application scope in electrical panels, industrial equipment, communication systems, and embedded electronics requiring isolated power rails. This through hole mounted converter operates with input voltages ranging from 18V to 36V DC.
Product features a compact DIP package measuring 31.75mm length, 20.32mm width, and 10.16mm depth. Designed for reliable use in industrial and electronic applications with operating temperature from -40°C to 100°C. Offers high isolation voltage of 1.6kV DC and 89% efficiency ensuring safe and efficient power conversion.
Equipped with 24 pins and conforms to RoHS standards for environmental compliance. This dual-output model belongs to the JCG series known for high power density and robust performance.
Ideal for industrial electronics, telecommunications, power supplies, and embedded systems, the XP Power JCG1524D15 is engineered to meet stringent performance and reliability requirements.
Explore more DC/DC Converters and related electronic components at EnvMart to find optimum power solutions for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This converter provides a 15V DC output voltage at a current of 500 mA.
The maximum output power of this model is 15W.
The dimensions of this through hole mounted converter are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
The efficiency rating of this converter is 89%.
This unit features an isolation voltage of 1.6kV DC.
It operates within a temperature range of -40°C to 100°C.
The JCG1524D15 is equipped with 24 pins for easy PCB integration.
This model uses a through hole mounting type.
Yes, this converter conforms to RoHS standards for environmental compliance.
This model is part of the JCG series, known for high power density.
The maximum operating temperature for this converter is 100°C.
