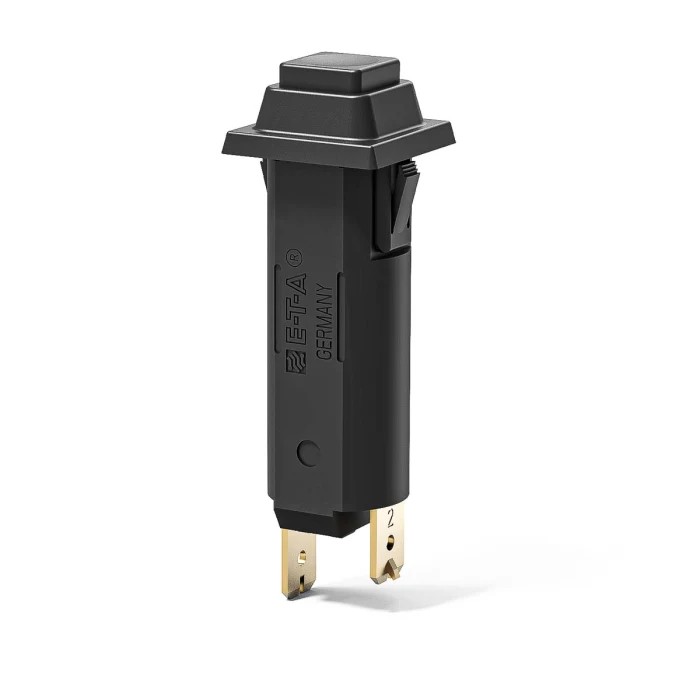

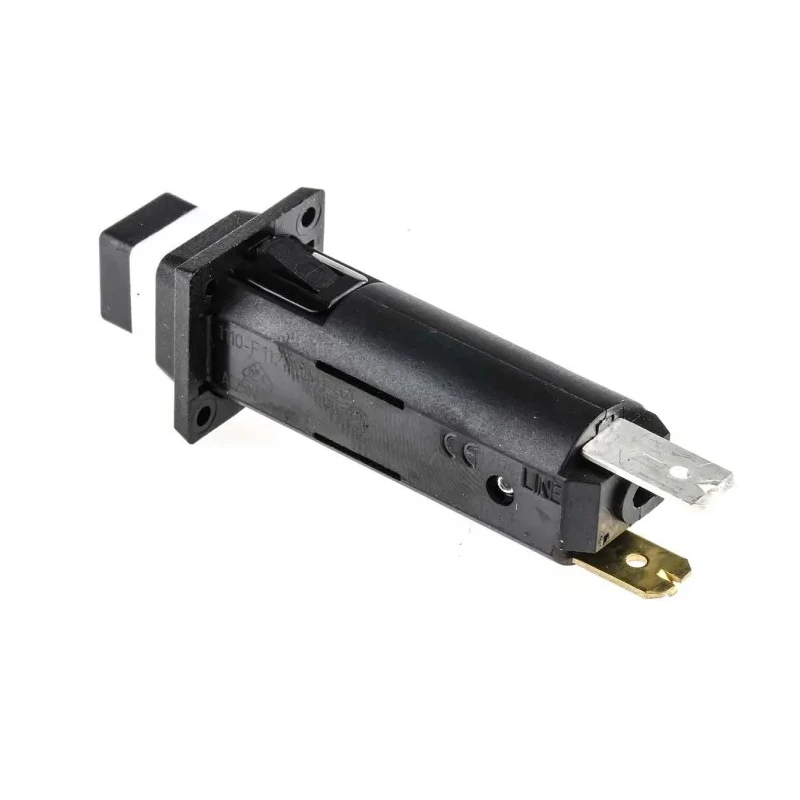

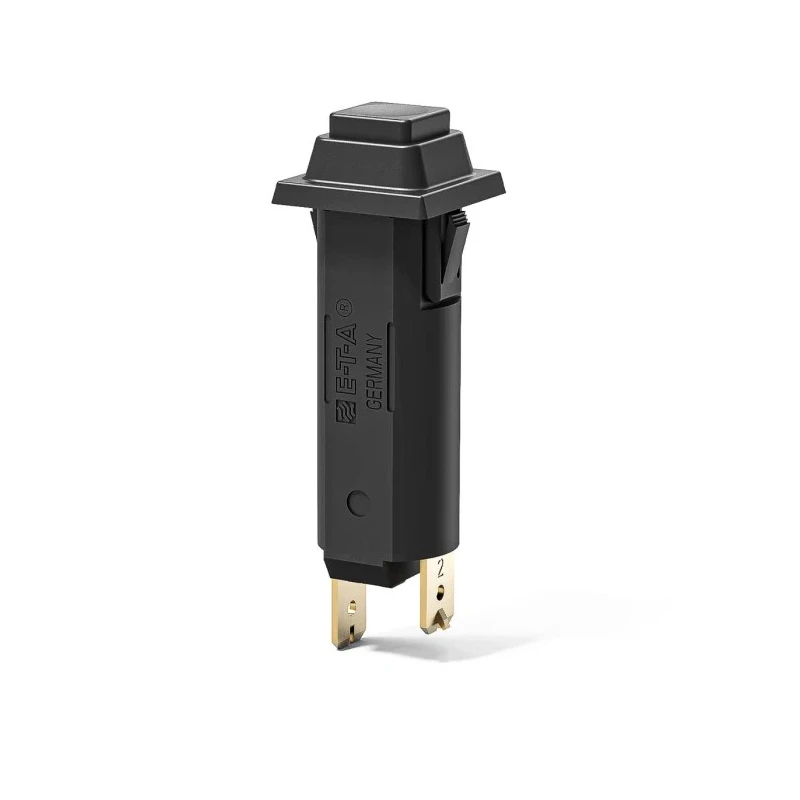

ETA Thermal Circuit Breaker 5A Current Rating 1-Pole Panel Mount 1110-F112-P1M1-5A



Category Circuit Breakers Brand ETA Condition New

Specifications

Country of Origin	India
Brand	ETA
Height	50.3mm
Model	1110-F112-P1M1-5A
Width	19mm
Mount Type	Panel Mount
Current Rating	5A
Series	1110
Terminal type	Blade
Breaking Capacity	25A
Number of Poles	1
Standards/Approvals	RoHS, CE
Rated AC Voltage	250V ac
Rated DC Voltage	50V dc
Tripping Characteristics	Type R
Tripping Mechanism	Thermal
Reset Actuator Type	Button
Break Time	Medium
CBC,thermal,panel mount,indicating,5ABrand	TE Connectivity

Key Features

Panel mount design with 19mm width for convenient installation.
Thermal tripping mechanism with Type R tripping characteristics.
Equipped with a button reset actuator for easy manual reset.
Rated for 250V AC and 50V DC operation with 25A breaking capacity.
Features a tease free/trip free mechanism with visual tripped position indication.
Blade terminal type ensures secure electrical connections.
Medium break time with typical trip response in 20 to 30 seconds at twice nominal current.
Complies with RoHS and CE standards for safety and environmental protection.

Product Description

ETA 1110-F112-P1M1-5A Thermal Circuit Breaker is a high-quality switching device designed to protect electrical circuits from overcurrent conditions. It is a 1-pole thermal circuit breaker with a rated current of 5A suitable for panel mounting. With a compact width of 19mm and height of 50.3mm, it fits seamlessly into standard fuse holder cut-out dimensions.

The circuit breaker uses a thermal tripping mechanism characterized by Type R tripping characteristics, providing a medium break time and reliable protection for motors, transformers, and power supplies. It operates at rated voltages of 250V AC and 50V DC and offers a breaking capacity of 25A.

The device features blade terminals (6.3-0.8mm) ensuring secure electrical connections, and a black square pushbutton reset actuator facilitates easy manual resetting. The mechanism is designed to be tease free and trip free, with typical response times between 20 to 30 seconds at twice the nominal current rating, and provides a visual indication when tripped or off for quick status checks.

Designed in compliance with RoHS and CE standards, this circuit breaker also meets IEC Classification S/TO and has approvals from UL, CSA, and VDE, assuring high-quality and safety standards.

This breaker is mainly used in industrial and electrical panels for motor protection and automation applications. Its robust design supports a typical operational life of approximately 300 operations at twice the nominal current rating, ensuring durability and reliability in demanding applications.

Panel mount design with 19mm width for convenient installation. Thermal tripping mechanism with Type R tripping characteristics. Equipped with a button reset actuator for easy manual reset. Rated for 250V AC and 50V DC operation with 25A breaking capacity.

Features a tease free/trip free mechanism with visual tripped position indication. Blade terminal type ensures secure electrical connections. Medium break time with typical trip response in 20 to 30 seconds at twice nominal current.

Complies with RoHS and CE standards for safety and environmental protection. Typical operational life of 300 operations at twice nominal current rating. Explore the extensive range of Circuit Breakers at EnvMart for quality and performance.
