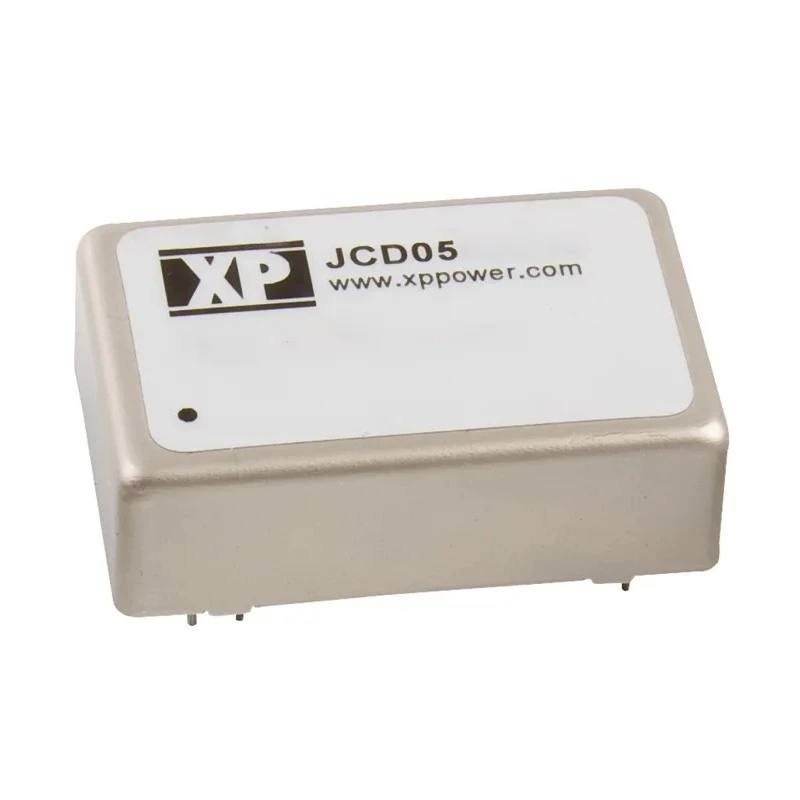

XP Power DC/DC Converter Through Hole 5 V DC, 1 A, 5 W Power, 18V-36V Input Voltage, 100°C Max Temp JCD0524S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 5V dc/ 1 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 80% |
| Length | 31.75mm |
| Model | JCD0524S05 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers a wide input voltage range from 18V to 36V for versatile applications.
- Delivers 5 watts of output power with high efficiency up to 80%.
- Features 1600 VDC isolation voltage for safe and stable operation.
- Operates reliably within temperature range of -40°C to 100°C for industrial environments.
- Compact DIP package with 24 pins and dimensions 31.75mm x 20.32mm x 10.4mm.
- Designed for long life with an MTBF of 1,100,000 hours and continuous short circuit protection.
- RoHS compliant, suitable for environmentally conscious projects.
- Ideal for use in power supply and distribution circuits requiring isolated DC/DC conversion.
Product Description
XP Power JCD0524S05 is an industrial-grade DC/DC converter designed to provide isolated 5V DC output at 1 Ampere from a wide input voltage range of 18V to 36V. Packaged in a through hole DIP configuration with 24 pins, it fits standard PCBs for straightforward integration in industrial and electronic applications.
This model offers a maximum output power of 5 watts and maintains high efficiency performance of approximately 80%, ensuring energy-efficient operation. The device features a 2:1 input voltage ratio and 1600 VDC isolation to guarantee safe electrical separation and reduce interference risks.
Operating reliably from -40°C up to +100°C, the JCD0524S05 is suitable for demanding environments including industrial machines, power supplies, telecommunications, and other related fields. Its robust design includes continuous short circuit protection and a remarkable MTBF of over 1.1 million hours, providing extended service life.
Compact dimensions of 31.75 mm length, 20.32 mm width, and 10.4 mm depth make it well-suited for space-constrained designs. Fully RoHS compliant, this converter supports environmentally responsible manufacturing.
Wide input voltage range of 18V to 36V DC for flexible power sources. Single isolated 5V output at 1A current in compact DIP package. High isolation voltage of 1600 VDC ensuring safe operation. High efficiency reaching up to 80% to minimize waste heat.
Robust operating temperature range from -40°C to 100°C. Continuous short circuit protection for enhanced device safety. Long MTBF rating supports reliable industrial use. Compliant with RoHS environmental standards.
This XP Power JCD series DC/DC Converter is ideal for use in power management, renewable energy systems, industrial equipment, and communication devices. Its reliable performance characteristics provide a trusted solution for isolated voltage conversion needs.
Explore the extensive range of XP Power converters and related electronic components in EnvMart’s Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range is from 18V to 36V DC.
This model delivers a maximum output power of 5 watts.
It has an efficiency rating of up to 80%.
The isolation voltage is 1600 VDC, ensuring safe electrical separation.
The dimensions are 31.75 mm in length, 20.32 mm in width, and 10.4 mm in depth.
It operates reliably within a temperature range of -40°C to 100°C.
This unit provides a single output.
It features a through hole mounting type.
The mean time between failures (MTBF) is rated at 1,100,000 hours.
Yes, it is RoHS compliant, suitable for environmentally conscious projects.
The output voltage is 5V DC, and it provides 1A of current.
It is ideal for use in power supply and distribution circuits requiring isolated DC/DC conversion.
