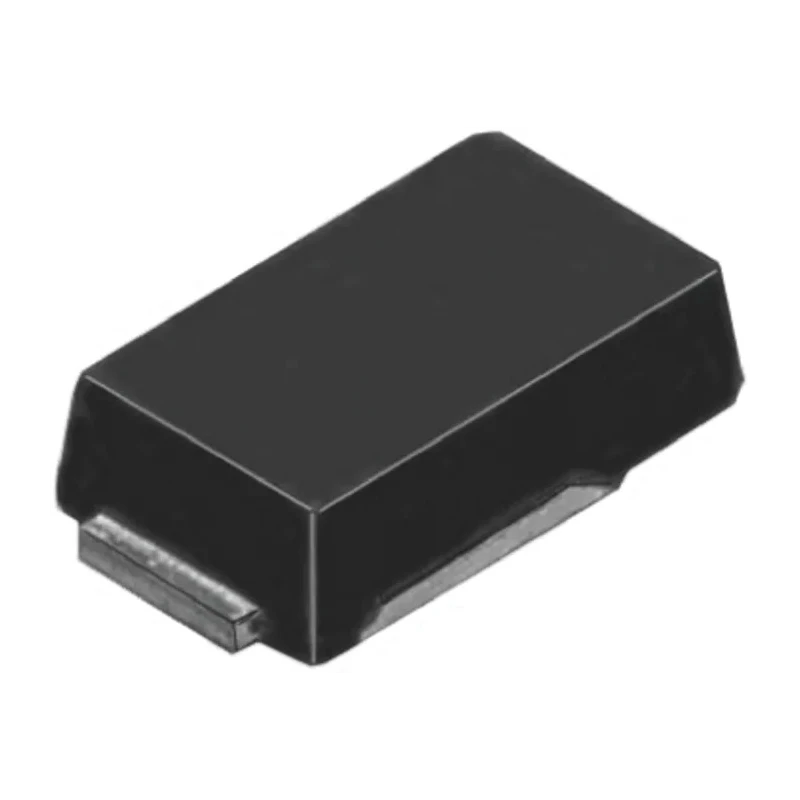

Vishay 100 V 1 A General Purpose Standard Recovery Diode 2-Pin Surface-Mount SMP Package S1PB-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | S1PB-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | S1PB |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 1.8μs |
Key Features
- Surface-mount 2-pin SMP package ensures compact integration on PCB.
- Maximum continuous forward current of 1 ampere suitable for low power rectification.
- Peak reverse repetitive voltage rating of 100 volts provides reliable performance in switching circuits.
- Standard recovery diode with 1.8 microseconds peak reverse recovery time for efficient switching.
- Operation temperature range from -55°C to +150°C for wide environmental compatibility.
- Peak non-repetitive forward surge current of 30 amperes supports transient loads.
- Low maximum forward voltage drop of 1.1 V helps reduce power losses.
- Designed to AEC-Q101 automotive standard, assuring high reliability in automotive usage.
Product Description
Vishay S1PB-M3/84A is a reliable 100 V, 1 A general purpose diode designed for standard recovery switching applications in electronic circuits. Packaged in a 2-pin surface-mount SMP package, it allows for space-saving integration in PCB designs while delivering robust electrical performance.
This diode features a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 100 volts, making it suitable for rectification and switching tasks in various industrial, automotive, and consumer electronics applications.
With a peak reverse recovery time of 1.8 microseconds, the S1PB-M3/84A ensures efficient switching and minimal power dissipation, complemented by a low maximum forward voltage of 1.1 volts. The package dimensions are compact with a length of 3.61 mm, width of 2.18 mm, and height of 1.15 mm, supporting tight installation spaces.
The diode operates reliably across a wide temperature range from -55°C to +150°C, catering to demanding environmental conditions. It can withstand peak non-repetitive forward surge currents up to 30 amperes, offering resilience against transient loads.
Meeting the AEC-Q101 automotive qualification, this diode is suitable for automotive and other high-reliability electronics. Manufactured in China, it complies with industry quality standards and fits diverse applications, including power supply circuits, consumer electronics, industrial controls, and automotive electronics.
Compact 2-pin SMP surface-mount package for efficient PCB assembly. 1 A continuous forward current rating with 100 V peak reverse voltage tolerance. Standard recovery diode with 1.8 μs reverse recovery time. Temperature range from -55°C to 150°C for robust operation.
Low forward voltage drop of 1.1 V minimizes power loss in circuits. Peak surge current capacity of 30 A protects against transient conditions. Compliant with AEC-Q101 Automotive Standard for reliability. Ideal for industrial, automotive, and electronic component uses.
Precision engineering ensures stable performance under switching conditions. Manufactured to high standards ensuring consistent quality. Explore more on Semiconductor Diodes and rectifiers at EnvMart, your trusted destination for industrial electronic components and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere, suitable for low power rectification applications.
This diode has a peak reverse repetitive voltage rating of 100 volts, ensuring reliable performance in switching circuits.
The peak reverse recovery time for this standard recovery diode is 1.8 microseconds, which contributes to efficient switching.
The package dimensions of this diode are 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height, allowing for compact PCB integration.
It operates reliably across a temperature range from -55°C to +150°C, making it suitable for various environmental conditions.
The maximum forward voltage drop of this diode is 1.1 volts, which helps reduce power losses in circuits.
This model can withstand a peak non-repetitive forward surge current of up to 30 amperes, providing resilience against transient loads.
Yes, it is designed to meet the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
This diode features a single diode configuration, suitable for various rectification and switching tasks.
It is designed for surface mounting, facilitating efficient PCB assembly in compact spaces.
The peak reverse current for this model is rated at 1 microampere, indicating minimal leakage under reverse bias conditions.
This diode is suitable for applications in power supply circuits, consumer electronics, industrial controls, and automotive electronics.
