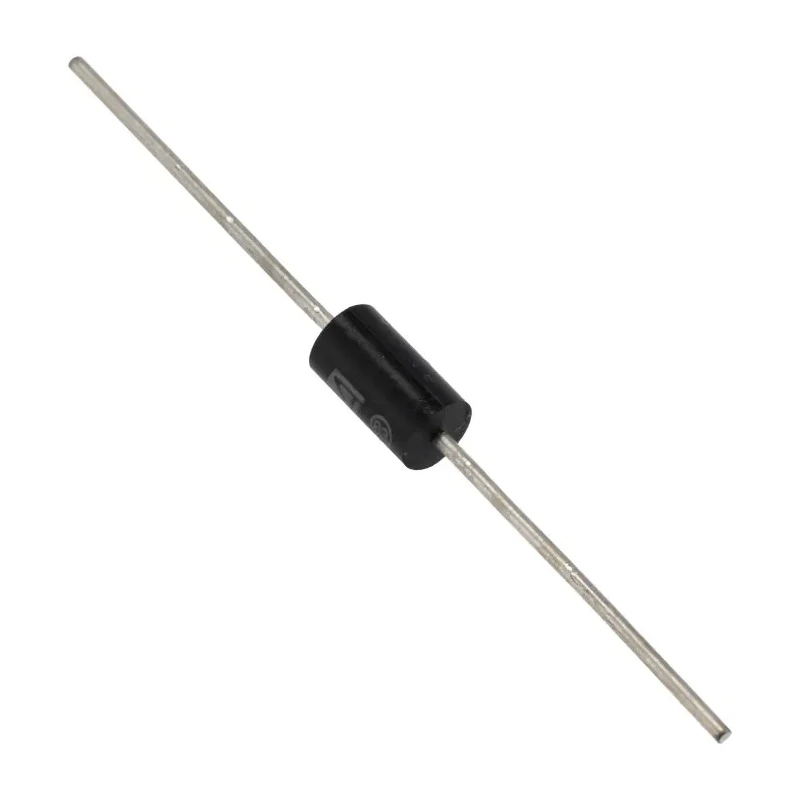

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE36CA

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE36CA

Name: STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW 2-Pin DO-201 1.5KE36CA
Brand: STMicroelectronics
SKU: 190074
Price: 0.4 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	STMicroelectronics
Height	5.3mm
Length	9.5mm
Model	1.5KE36CA
Width	5.3mm
Mount Type	Through Hole
Series	1.5KE
Maximum Operating Temperature	175°C
Package Type	DO-201
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	64.3V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	34.2V
Maximum Reverse Stand-off Voltage Vwm	30.8V
Peak Pulse Power Dissipation Pppm	1.5kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	156A
Maximum Reverse Leakage Current	1μA

Key Features

This TVS diode supports a bi-directional diode configuration for effective transient voltage suppression.
It features a minimum breakdown voltage of 34.2 V and a maximum reverse stand-off voltage of 30.8 V.
The diode handles a maximum peak pulse current of 156 A with a clamping voltage of 64.3 V.
Constructed for through-hole mounting, the device dimensions are 9.5 mm length and 5.3 mm diameter.
This diode operates reliably in a temperature range from -65°C to 175°C.
It has a pin count of 2 and provides superior surge protection with a peak pulse power of 1.5 kW.
Maximum reverse leakage current is 1 μA, ensuring minimal leakage in operation.
This device is designed without ESD protection and contains a single element per chip.

Product Description

STMicroelectronics 1.5KE36CA 1-Element Bi-Directional TVS Diode offers robust transient voltage suppression for electronic circuits, rated at 1.5 kW peak pulse power. Packaged in a standard 2-pin DO-201 axial through-hole design, it supports efficient and reliable protection of sensitive components from voltage spikes.

Featuring a bi-directional diode configuration, this device is ideal for circuits susceptible to surges from both polarities. It has a minimum breakdown voltage of 34.2 V and a maximum reverse stand-off voltage of 30.8 V, suitable for protecting devices in moderate voltage environments.

The diode sustains a maximum peak pulse current of 156 A during transient events, clamping voltage spikes to 64.3 V to safeguard connected electronics. Its wide operating temperature range from -65°C to 175°C ensures reliable performance under harsh environmental conditions.

The physical dimensions are compact, with a length of 9.5 mm and diameter of 5.3 mm, making it versatile for various board layouts. Despite lacking integrated ESD protection, it excels in transient voltage suppression tasks, supporting industrial, commercial, and consumer electronic applications.

This 1.5 kW transient voltage suppressor is designed for effective protection of power supplies, communication lines, and automotive electronics from voltage surges. The through-hole mountable DO-201 package facilitates easy implementation into existing PCB designs.

Low reverse leakage current of 1 μA reduces standby power losses and enhances circuit efficiency. Compliance with standard specifications assures quality and consistency in transient suppression performance. Suitable for use in industrial automation, power electronics, signal processing, and HVAC systems requiring surge protection.

Set your design protection standards high with STMicroelectronics TVS Diode series available on EnvMart, balancing performance and reliability.
