Vishay DC Input Phototransistor Output Surface Mount Mini-Flat Optocoupler TCMT1106

Free Delivery in India | Lowest Global Shipping Charges

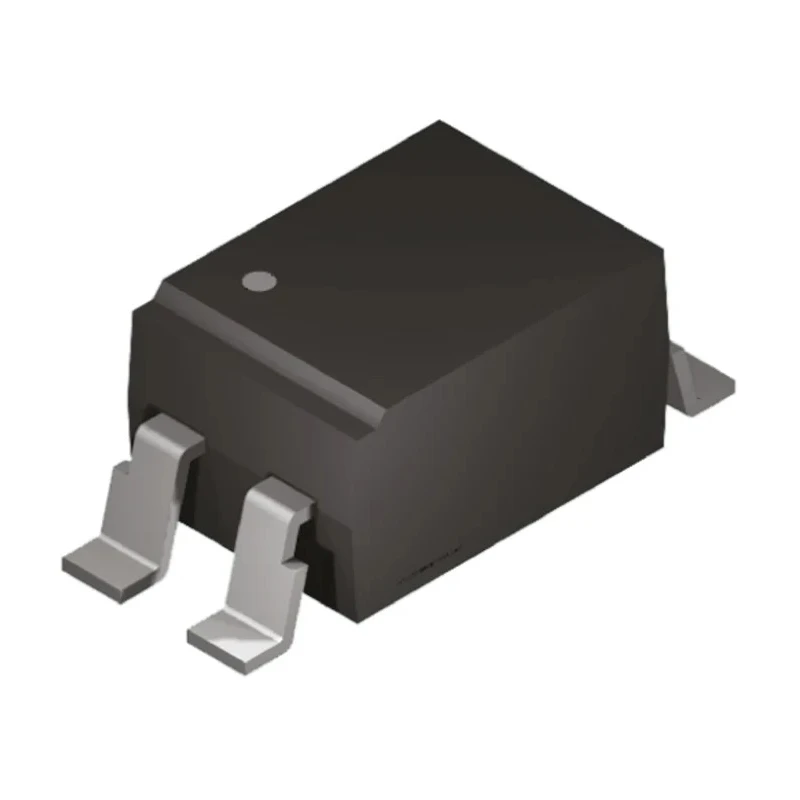

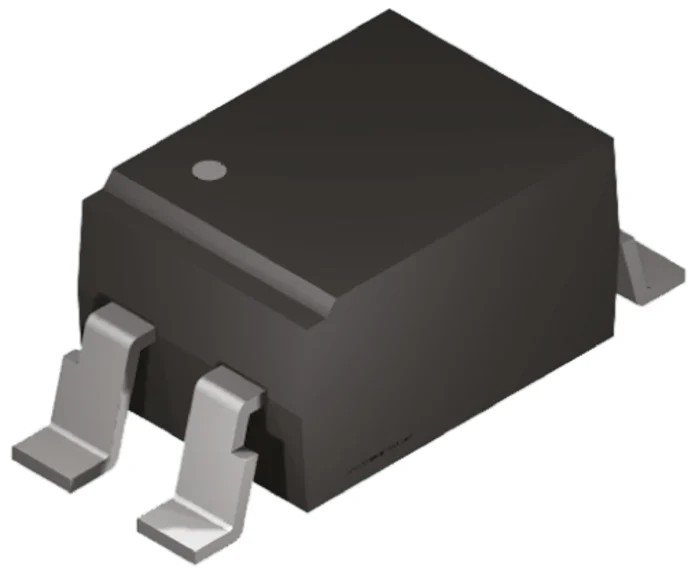

Vishay DC Input Phototransistor Output Surface Mount Mini-Flat Optocoupler TCMT1106

Name: Vishay DC Input Phototransistor Output Surface Mount Mini-Flat Optocoupler TCMT1106
Brand: Vishay
SKU: 214163
Price: 0.37 USD
Availability: InStock



Category Optocoupler Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	TCMT1106
Mount Type	Surface
Output type	Phototransistor
Series	TCMT
Maximum Operating Temperature	100°C
Package Type	Mini-Flat
Minimum Operating Temperature	-40°C
Maximum input current	60mA
Number Of Channels	1
Standards/Approvals	EN, UL
Maximum Forward Voltage	1.6V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	3μs
Maximum Current Transfer Ratio	3%
Typical Fall Time	4.7μs
Minimum Current Transfer Ratio	100%
Isolation Voltage	3750V ac

Key Features

Utilizes a gallium arsenide infrared-emitting diode coupled with a phototransistor for accurate signal transfer.
Features a low profile surface mount package optimized for compact electronic assemblies.
Operates with a maximum forward voltage of 1.6V and input current up to 60mA DC.
Offers high isolation voltage of 3750V AC for safe electrical separation.
Typical rise time of 3 microseconds and fall time of 4.7 microseconds for fast response.
Wide operating temperature range from -40°C to 100°C for reliable performance in harsh environments.
Current transfer ratio ranges from 3% maximum to 100% minimum ensuring stable signal amplification.
Meets industry standards including EN and UL for quality and safety compliance.

Product Description

Vishay TCMT1106 optocoupler provides electrical isolation between input and output circuits by optically coupling a gallium arsenide infrared LED to a phototransistor. This device is housed in a compact, low-profile, surface mount 4-pin mini-flat package suitable for modern PCB designs.

It supports DC input current up to 60mA with a maximum forward voltage of 1.6 volts, delivering fast switching speeds with typical rise and fall times of 3 and 4.7 microseconds, respectively. The device features an impressive isolation voltage rating of 3750 volts AC, making it ideal for safely transmitting signals in electrically noisy environments.

Designed to operate over a wide temperature range of -40°C to 100°C, the TCMT1106 maintains stable performance in industrial, commercial, and laboratory settings. Its current transfer ratio ranges from a minimum of 100% to a maximum of 3%, providing reliable amplification of input signals.

The TCMT series optocouplers comply with EN and UL standards, ensuring quality and safety certifications that support their use in programmable logic controllers, modems, answering machines, and a variety of general-purpose electronic applications.

Low profile surface mount mini-flat package for space-saving PCB layouts. High isolation voltage supports safe electrical separation between circuits. Fast switching times enable efficient signal processing. Wide operational temperature range for versatile industrial use.

Stable current transfer ratio enhances signal integrity. Conforms to EN and UL safety and quality standards. Suitable for programmable logic controllers, modems, and industrial automation. Reliable and cost-effective solution for electronic isolation needs.

This optocoupler is shipped on reels ready for automated insertion into manufacturing machinery, boosting production efficiency while ensuring product quality and reliability. Explore more Vishay electronics components and Optocouplers at EnvMart for diverse industrial, laboratory, and commercial applications.
