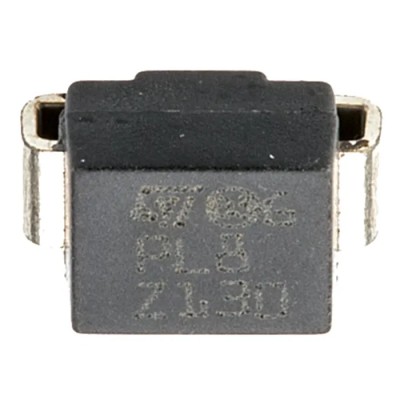

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SM6T100A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T100A |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 178V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 95V |
| Maximum Reverse Stand-off Voltage Vwm | 85.5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 22.5A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Uni-directional diode configuration protects against voltage spikes.
- 600 W peak pulse power dissipation for handling surge events.
- Maximum reverse stand-off voltage of 85.5 V for circuit protection.
- Clamping voltage of 178 V ensures effective transient suppression.
- Operates reliably from -55°C to 150°C in harsh environments.
- Maximum peak pulse current withstands 22.5 A surges.
- Compact 2-pin DO-214 surface mount package for PCB integration.
- Low maximum reverse leakage current of 200 nA enhances efficiency.
Product Description
STMicroelectronics SM6T100A is a 1-element uni-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes and transients. This diode features a peak pulse power dissipation of 600 W and comes in a compact 2-pin DO-214 surface mount package. It is engineered for high reliability in industrial, electronic component, and power protection applications.
This TVS Diode offers a minimum breakdown voltage of 95 V and a maximum reverse stand-off voltage of 85.5 V, making it suitable for circuits requiring robust surge protection. The clamping voltage of 178 V limits transient voltage to safe levels, while the maximum peak pulse current of 22.5 A ensures effective absorption of energy from sudden surges.
The diode operates reliably over a wide temperature range from -55°C to 150°C, suitable for harsh environments. Its low maximum reverse leakage current of 200 nA helps maintain circuit integrity and energy efficiency. The SM6T100A's surface mount package simplifies assembly on printed circuit boards used in various industrial and electronic products.
Typical applications include power supply protection, industrial equipment surge suppression, telecommunications, and other electronic devices requiring transient voltage protection. Its single element uni-directional diode configuration ensures directional protection against voltage spikes, safeguarding downstream components effectively.
Uni-directional diode configuration for precise transient voltage protection. High peak pulse power dissipation of 600 W for surge absorption. Compact 2-pin DO-214 surface mount package dimensions. Wide operating temperature range from -55°C to 150°C.
Low reverse leakage current ensures efficiency in circuits. Robust clamp voltage and peak current ratings for reliable protection.
Choose STMicroelectronics SM6T100A for reliable and compact transient voltage suppression in electronic, industrial, and power applications. Explore our extensive semiconductor catalog for complementary power protection components and devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 600 W, allowing it to effectively handle surge events.
The maximum reverse stand-off voltage for the SM6T100A is 85.5 V, providing robust protection for circuits.
The clamping voltage of this diode is 178 V, which helps limit transient voltage to safe levels during operation.
This model can withstand a maximum peak pulse current of 22.5 A, ensuring effective absorption of energy from surges.
It operates reliably within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
This diode is housed in a compact 2-pin DO-214 surface mount package, facilitating easy integration onto printed circuit boards.
The dimensions of this model are 2.45 mm in height and 3.95 mm in width, making it compact for various applications.
The maximum reverse leakage current for the SM6T100A is 200 nA, which helps maintain circuit efficiency.
The minimum breakdown voltage for this model is 95 V, providing necessary protection against voltage spikes.
This TVS diode is suitable for applications such as power supply protection, industrial equipment surge suppression, and telecommunications.
The SM6T100A features a single element configuration, which provides uni-directional protection against voltage spikes.
The test current for this diode is 1 mA, which is used for evaluating its performance under specified conditions.
