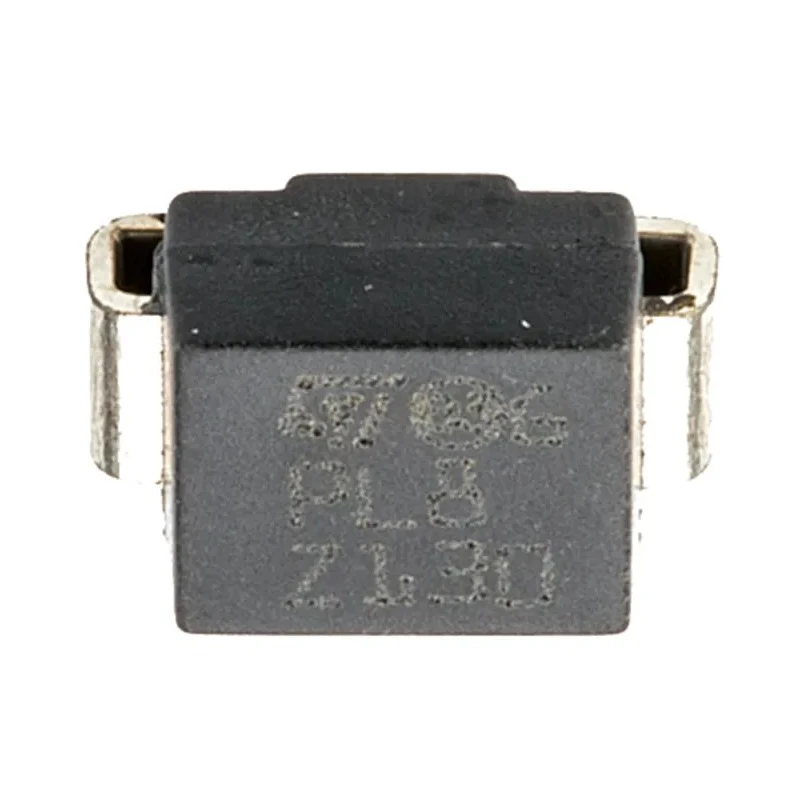

STMicroelectronics 1-Element Bi-Directional TVS Diode, 2-Pin DO-214 SMP100LC-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SMP100LC-8 |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMP100LC |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 8V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Test Current It | 5A |
| Maximum Peak Pulse Current Ippm | 100A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Single element diode configuration optimized for transient voltage suppression.
- Bi-directional direction type for effective crowbar protection in both polarity directions.
- Compact DO-214 surface mount package measuring 4.6mm length and 3.95mm width.
- Low leakage current of 2μA and minimum breakdown voltage of 8V for efficient performance.
- Operation temperature range from -40°C to +150°C suitable for harsh environmental conditions.
- High peak pulse current capability of 100A sustaining transient events.
- Low capacitance design ideal for analog and digital line card protection including xDSL, T1/E1, ISDN applications.
- Trisil™ technology specifically tailored for telecom equipment protection.
Product Description
The STMicroelectronics SMP100LC-8 is a high-performance 1-element bi-directional transient voltage suppression (TVS) diode housed in a 2-pin DO-214 surface mount package. Featuring a minimum breakdown voltage of 8V and a maximum reverse stand-off voltage of 6V, this device delivers reliable crowbar protection against voltage transients in analog and digital telecommunications equipment.
Designed to withstand peak pulse currents up to 100A, the diode ensures robust protection for line cards such as xDSL, T1/E1, and ISDN. Its low leakage current of 2μA and low capacitance characteristics minimize interference and signal distortion, making it optimal for high-frequency telecom circuits.
Operating temperature ranges from -40°C to 150°C, allowing use in diverse industrial environments with harsh conditions. The compact DO-214 package (4.6mm length, 3.95mm width, 2.45mm height) facilitates space-saving PCB integration for engineers focused on miniaturized telecommunications solutions.
As a Trisil™ device specialized for telecom equipment protection, the SMP100LC-8 supports bi-directional voltage suppression with single chip element technology. Although it is not qualified to automotive standards, it provides essential transient suppression for commercial and industrial electronic applications requiring reliable device safeguarding.
Single element diode for transient voltage suppression. Bi-directional protection suitable for telecom lines. Low leakage and capacitance enhance signal integrity. High surge current capability for robust clamp performance.
Compact surface mount DO-214 package enables space savings. Wide operating temperature supports use in varying harsh environments. Application focus on xDSL, T1/E1, ISDN, and line card protection. Trisil™ technology optimized for telecom equipment safeguarding.
Non-automotive industrial component. Height 2.45mm, length 4.6mm, width 3.95mm package dimensions.
This TVS diode is an excellent choice for industrial, telecommunications, and commercial equipment protection requiring dependable and compact transient voltage suppression solutions. For more products in TVS Diode category, browse EnvMart’s comprehensive selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 8V, which ensures effective protection against voltage transients.
It can sustain a maximum peak pulse current of 100A, providing robust protection against transient events.
The DO-214 package measures 4.6mm in length, 3.95mm in width, and 2.45mm in height, allowing for compact PCB integration.
The operating temperature range is from -40°C to 150°C, making it suitable for harsh environmental conditions.
This model offers bi-directional transient voltage suppression, effectively protecting against voltage spikes in both polarity directions.
The maximum reverse leakage current is 2μA, which helps minimize interference and signal distortion.
It is optimized for use in telecommunications applications such as xDSL, T1/E1, and ISDN, providing essential transient suppression.
The SMP100LC-8 features a single element diode configuration, specifically designed for transient voltage suppression.
This model is designed for surface mounting, facilitating easy integration into compact electronic designs.
Trisil™ technology is tailored for telecom equipment protection, enhancing the diode's performance in safeguarding against voltage transients.
The maximum reverse stand-off voltage is 6V, which is crucial for its operation in protecting sensitive electronic components.
The test current for the SMP100LC-8 is 5A, which is used to evaluate its performance under specified conditions.
