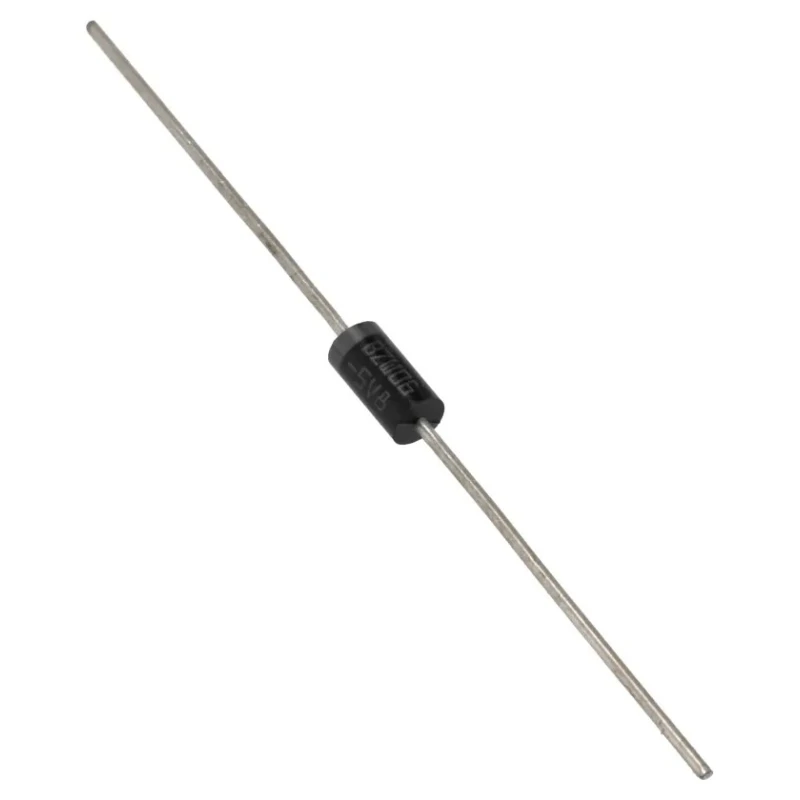

STMicroelectronics TVS Diode 1-Element Uni-Directional 600 W, 2-Pin DO-15 BZW06-5V8
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | BZW06-5V8 |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | BZW06 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 298A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Designed for transient voltage suppression with a single diode configuration.
- Supports uni-directional operation suitable for polarity-sensitive circuits.
- Minimum breakdown voltage of 6.45 V and maximum reverse stand-off voltage of 5.8 V.
- Peak pulse power dissipation is 600 W ensuring high energy absorption capacity.
- Compact DO-15 through-hole package measuring 6.75 mm length and 3.53 mm diameter.
- Operating temperature range from -65°C up to 175°C for robust performance.
- Maximum peak pulse current of 298 A supporting high surge currents.
- Low maximum reverse leakage current of 1 mA ensuring minimal leakage during normal operation.
Product Description
STMicroelectronics BZW06-5V8 TVS Diode is a high performance 1-element uni-directional transient voltage suppressor designed for protecting sensitive electronic components from voltage surges and electrostatic discharge. It is housed in a standard DO-15 through-hole package with two pins, making it suitable for various circuit board mounting configurations.
This diode features a minimum breakdown voltage of 6.45 V and a maximum reverse stand-off voltage of 5.8 V, enabling efficient clipping of transient voltages. It can dissipate peak pulse power up to 600 W and withstand a peak pulse current of 298 A, supporting high energy transient events commonly encountered in industrial electronics, automotive, HVAC, manufacturing, and power distribution systems.
The device operates reliably over a wide temperature range from -65°C to +175°C, enhancing durability in harsh environments. Its low leakage current of 1 mA minimizes power loss under normal operating conditions. The compact dimensions (6.75 mm length, 3.53 mm diameter) allow easy integration into densely packed assemblies.
Applications include circuit protection in power supplies, industrial control equipment, telecommunication infrastructure, and any devices requiring transient voltage suppression to enhance reliability and lifespan.
Single diode configuration designed for transient voltage suppression. Uni-directional diode suitable for polarity-sensitive circuits. 600 W peak pulse power dissipation capability. DO-15 package type with through-hole mounting.
Wide operating temperature range from -65° to 175°C. Maximum reverse leakage current of 1 mA. Peak pulse current rating of 298 A. Compact size: length 6.75 mm, diameter 3.53 mm.
The STMicroelectronics BZW06-5V8 is a reliable choice for engineers seeking robust transient voltage protection in electronics and semiconductor applications. Explore our extensive inventory of TVS Diodes and related semiconductor components to complement your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BZW06-5V8 can dissipate peak pulse power up to 600 W, making it suitable for high energy transient events.
The maximum reverse stand-off voltage for this model is 5.8 V, which allows it to efficiently clip transient voltages.
The minimum breakdown voltage of this diode is 6.45 V, ensuring effective transient voltage suppression.
The maximum peak pulse current rating is 298 A, which supports high surge currents during transient events.
This diode operates reliably over a wide temperature range from -65°C to +175°C, suitable for harsh environments.
It is housed in a standard DO-15 through-hole package, which is compatible with various circuit board mounting configurations.
The maximum reverse leakage current is 1 mA, which minimizes power loss during normal operation.
The clamping voltage (VC) for this model is 13.4 V, providing protection against voltage surges.
This diode features a 2-pin configuration, facilitating easy integration into electronic circuits.
It uses a single diode configuration, designed specifically for transient voltage suppression in uni-directional applications.
This model is suitable for circuit protection in power supplies, industrial control equipment, and telecommunication infrastructure.
The diameter of this diode is 3.53 mm, allowing for compact integration into electronic assemblies.
