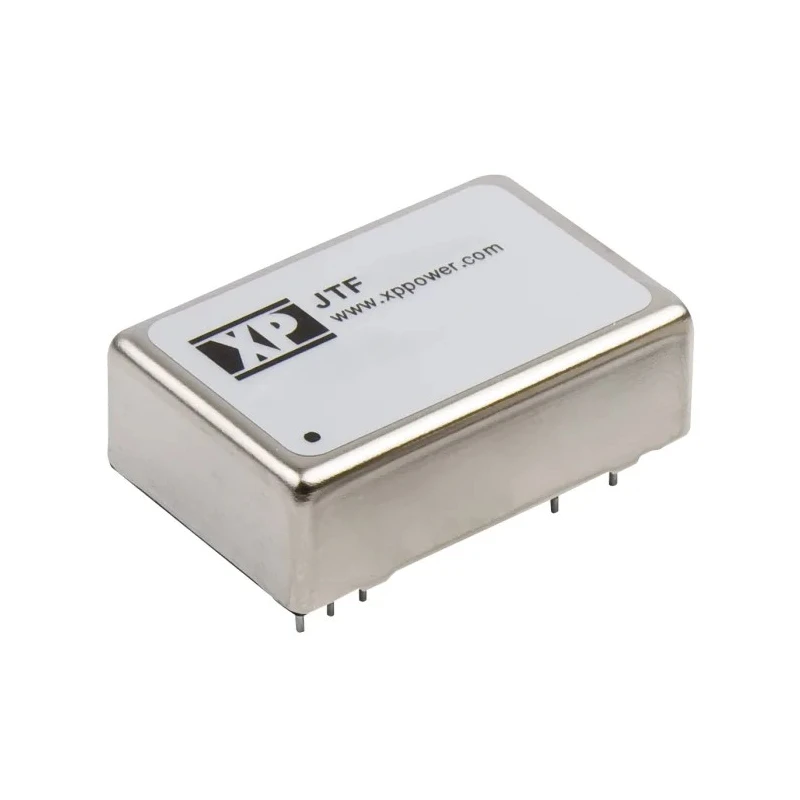

XP Power Isolated DC-DC Converter Through Hole 3.3V DC Output 2 A 36V DC Max Input JTF0824S3V3

XP Power JTF0824S3V3 is an industrial-grade isolated DC-DC converter designed for reliable power conversion in electronic systems. This model provides a fixed 3.3V DC output at a current of 2 A with a maximum output power of 8W. It supports wide input voltages ranging from 9V to 36V DC, making it suitable for applications with variable or battery voltage sources.

The device features a through-hole DIP package with 9 pins, facilitating straightforward PCB mounting and robust mechanical connection. It offers a high isolation voltage of 1600 VDC, which ensures protection between input and output circuits for safety and noise reduction.

Its operating temperature range from -40 °C to +105 °C enables deployment in industrial, automotive, and rugged environments where temperature extremes are expected. The high efficiency of 83% minimizes power loss and thermal stress.

This DC-DC converter is built to meet RoHS standards, affirming environmentally responsible manufacturing. Its mean time between failures (MTBF) of 1 million hours signifies excellent reliability, crucial for continuous operation in professional equipment.

Applications for the XP Power JTF0824S3V3 include industrial control systems, telecommunications, instrumentation, and embedded electronics that require stable low-voltage DC supply isolated from varying input sources.

Package dimensions are 31.75 mm in length, 20.32 mm in width, and 10.16 mm in depth, fitting commonly in space-constrained PCB layouts. The through-hole configuration ensures strong mechanical bonding for vibration-prone environments.

Isolated 8W DC-DC converter with 1600 VDC isolation for enhanced safety. Compact DIP package with 9 pins and through-hole mounting for easy PCB integration. Wide 4:1 input voltage range from 9V to 36V DC for diverse power sources.

High efficiency of 83%, reducing heat generation and improving energy use. Temperature rated for operation from -40 °C up to +105 °C for harsh environments. Reliable MTBF of 1,000,000 hours ensuring long operational life.

Standard remote on/off control for flexible power management. Dimensions: Length 31.75mm, Width 20.32mm, Depth 10.16mm for space-constrained designs. RoHS compliant ensuring environmentally safe and lead-free manufacturing.
