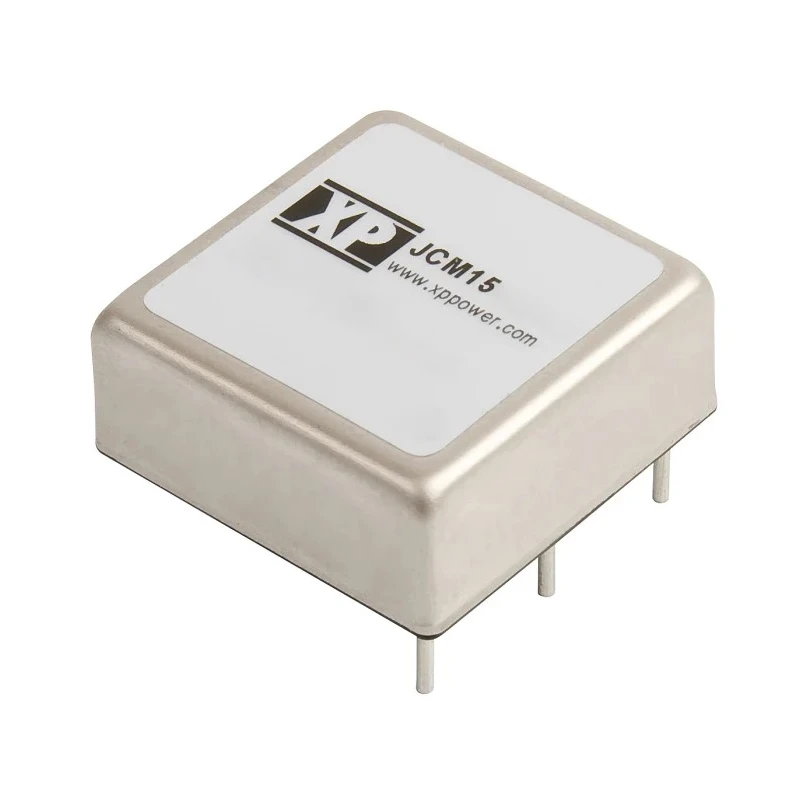

XP Power DC/DC Converter Dual Output 15V, -15V 500mA 15W 18-36V Input Through Hole JCM1524D15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM DC/DC Converter, 15V, -15 V/ 500 mA |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 25.4mm |
| Model | JCM1524D15 |
| Depth | 9.9mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM |
| Maximum Operating Temperature | 105°C |
| Package Type | 1 x 1 in |
| Minimum Operating Temperature | -40°C |
| MTBF | 560000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- This DC/DC converter provides high efficiency up to 89% for energy savings.
- It features 1600 VDC isolation ensuring signal integrity and safety in industrial environments.
- The module operates across a wide temperature range from -40°C to 105°C for harsh conditions.
- Designed for through hole mounting with a compact 1 x 1 inch footprint and 6 pins.
- It includes two output channels and a mean time between failures (MTBF) of 560,000 hours for high reliability.
- This converter is suitable for PCB board mounting in power supplies and electronic systems.
Product Description
XP Power JCM1524D15 DC/DC Converter is a high-performance dual output isolated converter offering 15V and -15V outputs at 500mA each with a maximum output power of 15W. It accepts input voltages from 18V to 36V DC, providing a 2:1 input range suited for diverse industrial and electronic applications requiring reliable voltage conversion.
The converter exhibits excellent efficiency of 89%, reducing power loss and enhancing thermal management. It supports a 1600 VDC isolation level which enables operation in electrically noisy environments ensuring signal integrity and protecting downstream electronics.
With a robust operating temperature range from -40°C to 105°C, this JCM15 series module is suitable for demanding applications including industrial automation, test instruments, communication equipment, and power conversion subsystems. Its through-hole mounting and compact 25.4mm x 25.4mm x 9.9mm size simplifies integration on printed circuit boards.
The product has a long operational lifespan with an MTBF rating of 560,000 hours and includes 6 pins for electrical connections. This DC/DC converter provides dual isolated outputs for versatile circuit requirements. Highly efficient power conversion minimizes energy waste in industrial systems.
Wide input voltage tolerance supports varied power supply conditions. High isolation voltage ensures safety and noise immunity in electrically harsh environments. Operating over wide temperature extremes makes it ideal for industrial and outdoor electronics.
Compact form factor with through-hole mounting is suitable for PCB integration.
XP Power DC/DC converters are widely used in power supplies, industrial control, telecommunications, and other sectors requiring compact and efficient isolated voltage transformation. Explore more DC/DC Converter options with XP Power on EnvMart for your electronics projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC, providing a 2:1 input ratio suitable for various applications.
This converter provides dual outputs of 15V and -15V, each capable of delivering 500mA of current.
The maximum output power of the JCM1524D15 is 15W, suitable for various electronic applications.
It has an efficiency rating of up to 89%, which helps in reducing power loss during operation.
The isolation voltage of this model is 1600 VDC, ensuring safety and signal integrity in electrically noisy environments.
The dimensions of this converter are 25.4mm x 25.4mm x 9.9mm, making it compact for PCB integration.
This model operates within a temperature range of -40°C to 105°C, suitable for harsh environments.
The JCM1524D15 features 6 pins for electrical connections, facilitating easy integration into circuits.
The MTBF for this converter is rated at 560,000 hours, indicating high reliability for long-term use.
This unit is designed for through-hole mounting, which simplifies its integration into printed circuit boards.
This converter is suitable for applications in industrial automation, test instruments, communication equipment, and power conversion subsystems.
The country of origin for this DC/DC converter is Taiwan, where it is manufactured.
