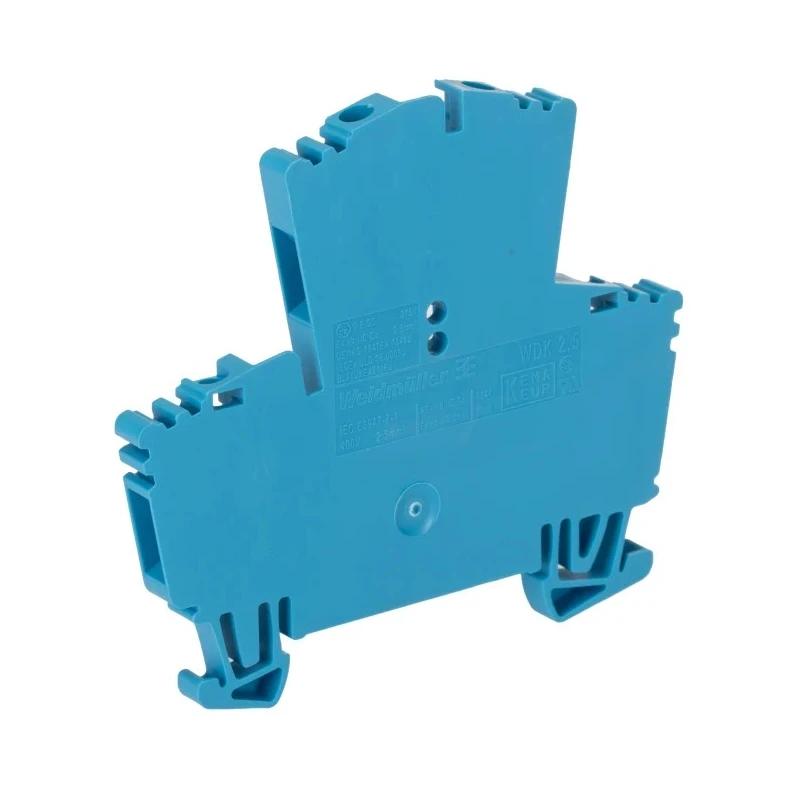

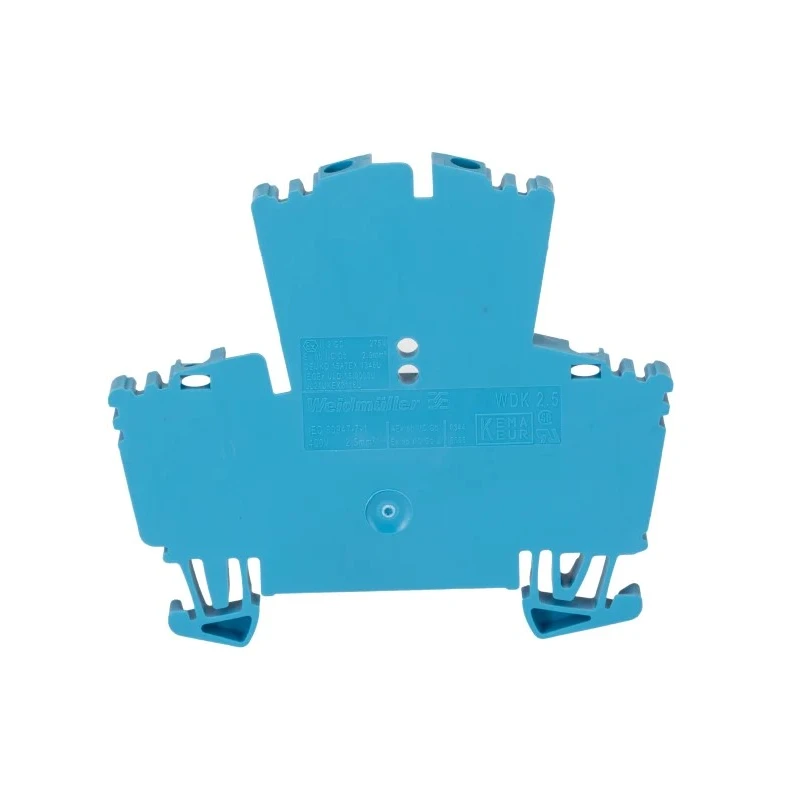

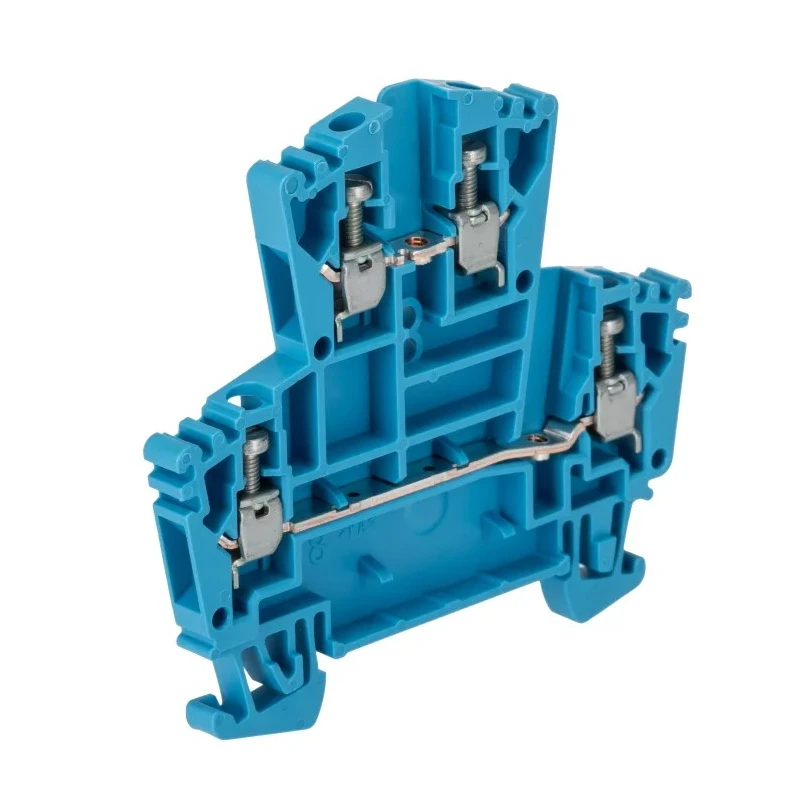

Weidmüller Double Level Terminal Block 2.5mm², 24A, 400V, Blue, Screw Termination WDK 2.5 BL 1021580000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmüller |
| Colour | Blue |
| Series | WDK 2.5 BL |
| Termination Type | Screw |
| Maximum Operating Temperature | 130°C |
| Number of Levels | 2 |
| Sub Type | Terminal |
| Minimum Operating Temperature | -60°C |
| Pitch | 5mm |
| Standards/Approvals | IEC 60947-7-1 |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 2.5mm² |
| Terminal Block Current | 24A |
Key Features
- Designed as a double level terminal block allowing two levels of wiring.
- Supports wire sizes ranging from 30AWG to 12AWG with 2.5mm² cable cross-section.
- Blue colour for easy identification in electrical installations.
- Features screw termination type for secure and durable connections.
- Operates safely within a temperature range of -60°C to 130°C.
- Rated for up to 24 amperes continuous current capacity.
- Compliant with IEC 60947-7-1 international standards for terminal blocks.
- Pitch between terminals is 5mm, suitable for compact DIN rail mounting.
Product Description
Weidmüller 1021580000 WDK 2.5 BL Series Double Level Terminal Block is engineered for efficient electrical circuit connection and distribution. It features a robust screw termination for reliability and accommodates wire sizes from 30AWG to 12AWG with a maximum cable cross-section of 2.5mm². This terminal block operates under a voltage rating of 400V and supports a continuous current load of 24A, making it suitable for a wide range of electrical and mechanical industry applications.
The terminal block’s double-level design maximizes wiring density within control cabinets and distribution boards while maintaining easy access and clear identification due to its blue colour coding. It operates reliably in harsh environmental conditions with a temperature range from -60°C to 130°C and fulfills IEC 60947-7-1 standards for safety and quality assurance.
This terminal block finds extensive use in automation systems, industrial connectors, power distribution machinery, and electrical junction box setups. Its compact pitch of 5mm makes it ideally compatible with DIN rail mounting systems for seamless integration within electrical panels.
The product is manufactured in Germany, guaranteeing German engineering standards for durability and consistent performance in industrial electrical installations. Designed for double level wiring to optimize space. 24A current rating supports high load applications safely.
Wide wire gauge accommodation enhances versatility. Screw termination ensures strong electrical connections. IEC 60947-7-1 compliance guarantees regulatory adherence. Explore the Weidmüller Terminal Blocks range on EnvMart for robust electrical connectivity solutions tailored to industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Weidmüller Double Level Terminal Block has a continuous current capacity of 24 amperes.
It operates under a voltage rating of 400V.
This model supports wire sizes ranging from 30AWG to 12AWG with a maximum cable cross-section of 2.5mm².
It operates safely within a temperature range of -60°C to 130°C.
It features a screw termination type for secure and durable connections.
The pitch between terminals is 5mm, making it suitable for compact DIN rail mounting.
Yes, it is compliant with IEC 60947-7-1 international standards for terminal blocks.
It is designed as a double level terminal block, allowing two levels of wiring to optimize space.
It is manufactured in Germany, ensuring adherence to German engineering standards.
The terminal block is blue, which aids in easy identification during electrical installations.
The sub-type of this terminal block is classified as a terminal.
