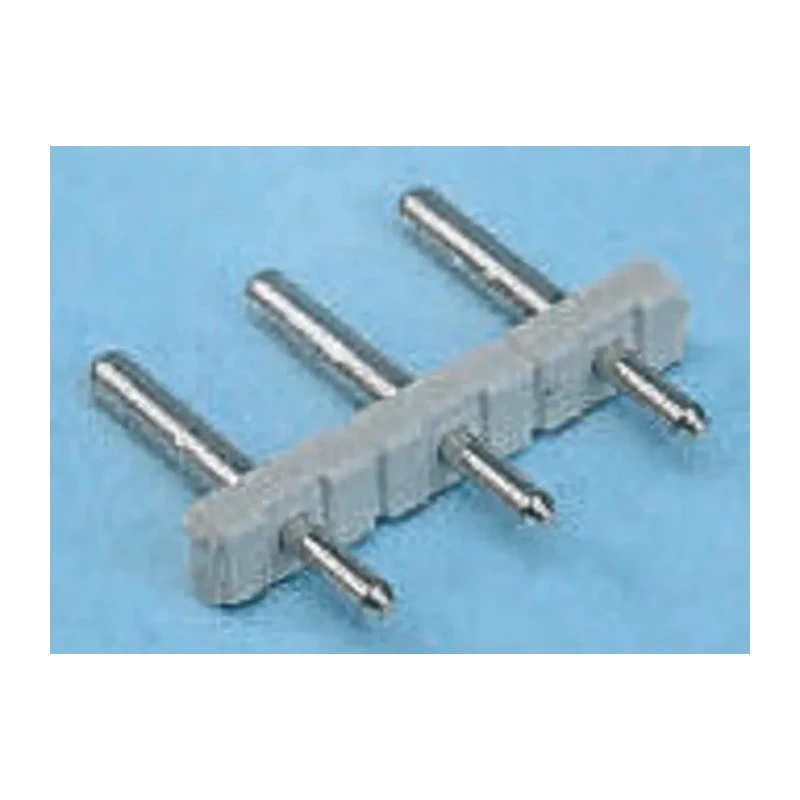

Wieland WIECON Series Pluggable Terminal Block 3-Contact 5 mm Pitch 1 Row Grey Male Solder Z5.530.0325.0
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Wieland |
| Colour | Grey |
| Orientation | Straight |
| Current | 15A |
| Length | 15mm |
| Model | Z5.530.0325.0 |
| Depth | 2.8mm |
| Housing Material | Thermoplastic |
| Series | WIECON |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Features 3 contacts for versatile PCB terminal applications.
- 5 mm pitch provides ample spacing for secure wire connections.
- Single row, straight orientation simplifies PCB design and mounting.
- Male gender with solder connection for robust and permanent connection.
- Thermoplastic housing enhances electrical insulating properties.
- Rated for up to 15 A and 300 V suitable for medium-power circuits.
- Grey colour and WIECON series assure easy identification and system consistency.
Product Description
The Wieland WIECON Series Pluggable Terminal Block, model Z5.530.0325.0, is engineered to provide secure and reliable PCB wire connections in electronic and electrical assemblies. This terminal block features three contacts, making it suitable for a range of applications requiring multi-point interconnections. With a 5 mm pitch, it ensures clear spacing for wiring and facilitates ease of soldering and maintenance.
Constructed from durable thermoplastic material, this block is designed to withstand electrical and mechanical stresses, while the straight, single row male configuration allows for compatibility with various PCB layouts. Featuring solder termination, it provides a robust and permanent join between wires and PCB pads. The unit is rated to handle a current of up to 15 amperes and a voltage of 300 volts, making it suitable for medium-power signal or power transmission in industrial electronics, automation panels, instrumentation, and control equipment.
Compact with a length of 15 mm and a depth of 2.8 mm, the Z5.530.0325.0 fits into tight spaces on densely populated boards, while its grey color and WIECON family designation help in identification and system organization. Its robust male header format allows for pull-out terminal connections when paired with compatible female cable mount terminals, supporting efficient assembly and serviceability in field applications.
The Wieland WIECON Series Pluggable Terminal Block is ideal for use in industrial automation, PLC systems, process control, laboratory instruments, test equipment, and power distribution in electronic devices. Its proven design delivers electrical reliability and mechanical integrity across a range of demanding professional environments.
Explore other Terminal Blocks, PCB connectors, and industrial interconnect solutions in the Electronics Components category or browse more products from Wieland to meet your assembly and installation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 15 A and a voltage of 300 V, making it suitable for medium-power circuits.
The pitch size of this terminal block is 5 mm, providing ample spacing for secure wire connections.
This model features three contacts, allowing for versatile PCB terminal applications.
The housing of this terminal block is made from thermoplastic material, enhancing its electrical insulating properties.
This terminal block has a straight orientation, which simplifies PCB design and mounting.
The terminal block has a length of 15 mm and a depth of 2.8 mm, making it compact for fitting into tight spaces on PCBs.
It uses a solder connection method for robust and permanent connections between wires and PCB pads.
This terminal block is suitable for applications in industrial automation, PLC systems, process control, laboratory instruments, and test equipment.
The connector gender of this terminal block is male, designed for use with compatible female cable mount terminals.
The country of origin for this terminal block is Germany.
The grey color of the terminal block helps in easy identification and system consistency within electronic assemblies.
This terminal block belongs to the WIECON series, which is known for its reliable PCB wire connections.
