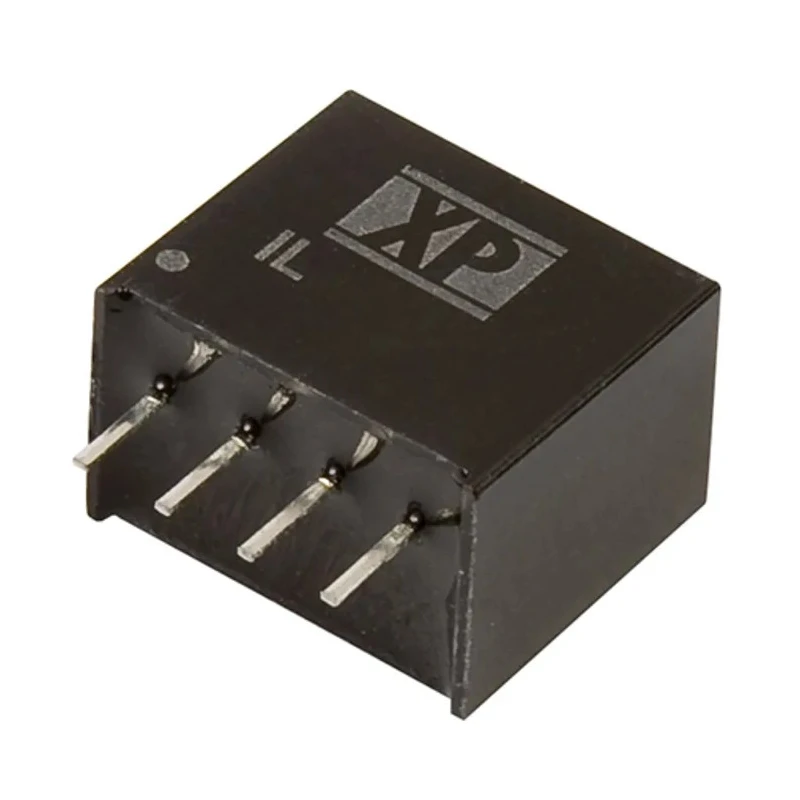

XP Power Isolated DC/DC Converter 3.3V DC 400mA 2W Through Hole SIP Package IL0503S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 71% |
| Length | 11.68mm |
| Model | IL0503S |
| Depth | 10.16mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | IL |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1210000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1kV dc |
Key Features
- Isolated DC/DC converter with 1000 VDC isolation for reliable performance.
- Operates from 4.5V to 5.5V input voltage range suitable for varied power supply conditions.
- Compact through hole SIP package measuring 11.68mm x 7.5mm x 10.16mm.
- Supports operating temperature from -40°C to +85°C for industrial environments.
- High mean time between failures (MTBF) of 1,210,000 hours for enhanced reliability.
- Efficiency rating of approximately 71% to optimize power consumption.
- Single output design ideal for isolated power applications.
- Four pins simplify PCB through-hole mounting.
Product Description
XP Power IL0503S is a high-reliability isolated DC/DC converter offering 3.3V DC output at 400mA with a maximum power rating of 2W. Designed in an industry-standard SIP package with through-hole mounting, this converter provides 1000 VDC isolation to ensure signal integrity and safety in sensitive electronics applications.
The input voltage range of 4.5V to 5.5V DC makes it compatible with various power sources. Its compact dimensions of 11.68mm length, 7.5mm width, and 10.16mm depth allow easy integration into circuit boards with limited space.
Operating reliably in temperatures from -40°C up to 85°C, the IL0503S is suitable for harsh industrial, telecommunications, and instrumentation environments requiring stable isolated power supply. The unit features a mean time between failures (MTBF) of over 1.2 million hours, guaranteeing long-term durability.
With an efficiency of 71%, this converter helps reduce energy losses and heat generation. It has a single output with four pins for straightforward PCB mounting and stable connection.
Applications include industrial automation, telecommunications, and power supply isolation. Packaged and manufactured in Taiwan, this XP Power converter meets demanding quality and performance standards.
Isolated DC/DC conversion with 1000 VDC isolation voltage. Input voltage range of 4.5V to 5.5V DC. Output voltage: 3.3V DC with 400mA maximum current. Compact through-hole SIP package design for ease of PCB integration. Wide operating temperature range from -40°C to +85°C.
Mean time between failures (MTBF) of 1,210,000 hours ensures reliability. Typical efficiency of 71% for power savings. Single output, 4-pin configuration. Ideal for industrial, laboratory, and telecommunications power supply isolation.
Explore the full range of XP Power DC/DC Converters at EnvMart for robust and dependable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 3.3V DC, with a maximum output current of 400mA.
It operates within an input voltage range of 4.5V to 5.5V DC.
This unit offers an isolation voltage of 1000 VDC, ensuring safety and signal integrity in sensitive applications.
The SIP package measures 11.68mm in length, 7.5mm in width, and 10.16mm in depth.
The maximum power rating of this converter is 2W.
It has an efficiency rating of approximately 71%, which helps optimize power consumption.
This model operates reliably in temperatures ranging from -40°C to +85°C.
The IL0503S features a single output design.
The mean time between failures (MTBF) is 1,210,000 hours, indicating a high level of reliability.
It is designed for through-hole mounting, making it suitable for PCB integration.
This converter is suitable for applications in industrial automation, telecommunications, and power supply isolation.
The IL0503S has four pins for connection, simplifying the PCB mounting process.
