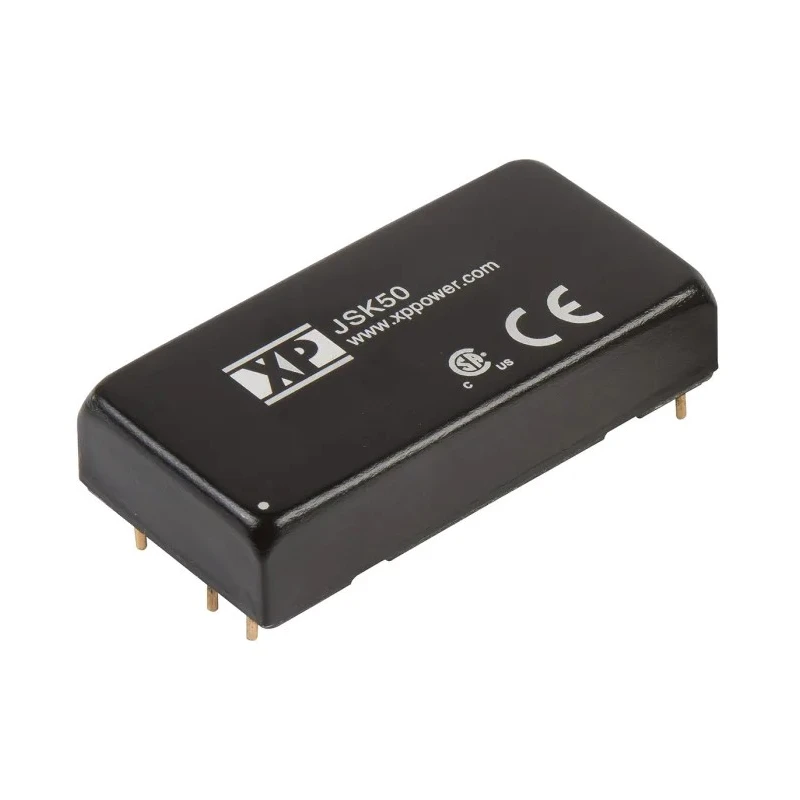

XP Power Isolated DC/DC Converter 12V DC Output 4.17A, 9V-18V Input, 50W, Through Hole DIP Package JSK50
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JSK50 DC/DC Converter, 12V dc/ 4 |
| Brand | XP Power |
| Efficiency | 91% |
| Length | 50.8mm |
| Model | JSK50 |
| Depth | 11mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JSK50 |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 220000h |
| Number of outputs | 1 |
| Maximum Output Power | 50W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 4.17A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Supports wide input voltage range from 9V to 18V DC.
- Features through hole mounting with a DIP package type.
- Provides 1500 VDC isolation voltage for enhanced safety.
- Operates efficiently at 91% with a high MTBF of 220,000 hours.
- Compact metal package measuring 50.8mm length by 25.4mm width and 11mm depth.
- Wide operating temperature range from -40°C to 105°C.
- Designed for industrial and commercial power supply applications.
- Single regulated output with 6-pin configuration.
Product Description
XP Power JSK50 DC/DC Converter JSK50 is a 50W highly reliable isolated DC-DC converter featuring a regulated 12V output at 4.17A current. It supports an input voltage range of 9V to 18V DC with a 2:1 input ratio, making it versatile for multiple power supply scenarios.
This converter comes in a compact through hole DIP package measuring 50.8mm (length) by 25.4mm (width) by 11mm (depth), ideal for PCB mounting in varied electronic assemblies. It provides a robust isolation voltage of 1500 VDC improving electrical safety and noise immunity.
Operating efficiently at 91%, the JSK50 series achieves a high Mean Time Between Failures (MTBF) of 220,000 hours, emphasizing its durability in demanding environments. The operating temperature range from -40 degrees Celsius to 105 degrees Celsius allows use in harsh industrial and commercial conditions.
This product is designed for applications requiring reliable isolated DC power conversion, including industrial controls, telecommunications, instrumentation, and embedded systems.
Wide 9V to 18V DC input voltage range provides flexibility. 50W power rating supports moderate power loads. High isolation voltage of 1500 VDC for safety and noise reduction. Compact through hole DIP package for easy PCB assembly.
High efficiency at 91% reduces energy loss. Robust MTBF of 220,000 hours ensures long-term reliability. Wide operating temperature from -40°C to 105°C suits industrial use. Single output design simplifies integration. Manufactured in Taiwan, Province Of China with strict quality standards.
Explore the XP Power DC/DC Converter category on EnvMart for reliable power supply solutions tailored to industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JSK50 provides a regulated output voltage of 12V DC with a maximum output current of 4.17A.
It supports an input voltage range from 9V to 18V DC, allowing for versatility in various power supply scenarios.
This model operates with an efficiency of 91%, which helps to reduce energy loss during operation.
The dimensions of this model are 50.8mm in length, 25.4mm in width, and 11mm in depth, making it compact for PCB mounting.
It provides a robust isolation voltage of 1500 VDC, enhancing electrical safety and noise immunity.
The maximum operating temperature for the JSK50 is 105°C, allowing it to function in harsh environments.
The MTBF for this model is 220,000 hours, indicating its reliability in demanding applications.
This model features through hole mounting with a DIP package type, suitable for easy integration into electronic assemblies.
The JSK50 has a single regulated output, simplifying integration into various applications.
This converter is designed for industrial controls, telecommunications, instrumentation, and embedded systems requiring reliable isolated DC power conversion.
The minimum operating temperature for this unit is -40°C, enabling its use in extreme conditions.
The input ratio for the JSK50 is 2:1, which allows it to handle a wide input voltage range efficiently.
