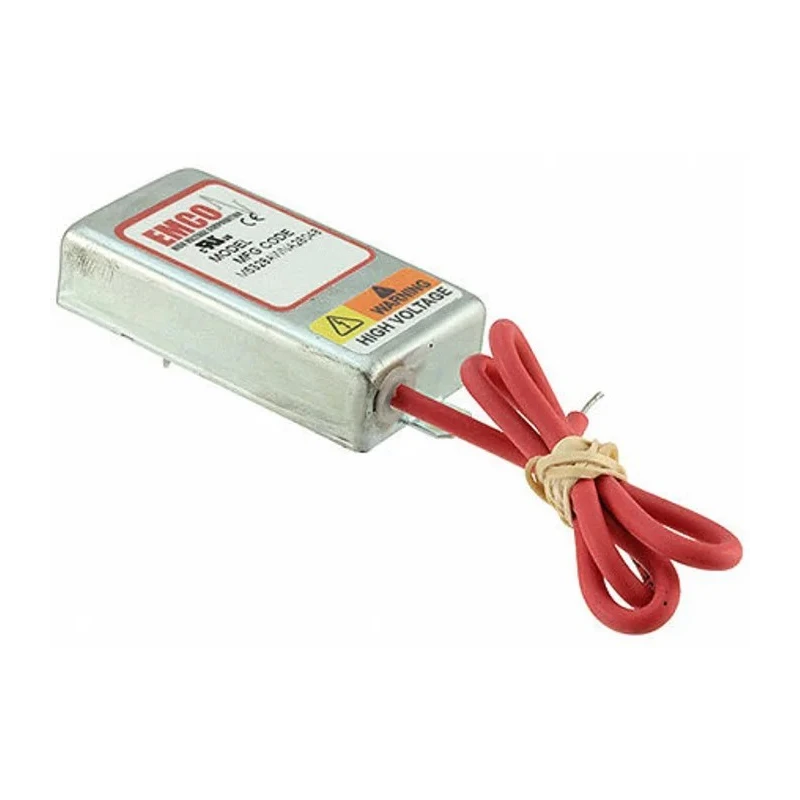

XP Power High Voltage DC/DC Converter 16V DC Input, 10 mA Output, 1 W, PCB Chassis Mount, 60 °C Max, Model C60N
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power C DC/DC Converter, 0kV, 8 kV/, 16V dc Inp |
| Brand | XP Power |
| Length | 53.34mm |
| Model | C60N |
| Gross Weight | 50.9g |
| Width | 28.19mm |
| Mount Type | PCB, Chassis |
| Series | C |
| Maximum Operating Temperature | 60°C |
| Package Type | Encapsulated Module |
| Minimum Operating Temperature | -10°C |
| MTBF | 2600000h |
| Number of outputs | 1 |
| Ripple and Noise | 0.1% Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 16V dc |
| Standards/Approvals | UL (E344664), RoHS |
| Minimum Input Voltage | 11.5V |
| Number of Pins | 5 |
| Output Voltage 1 | 0, 8kV |
| Output Current 1 | 10mA |
Key Features
- High stability and low noise output with 0.1% peak-to-peak ripple.
- Programmable output with quasi-sinewave oscillator design.
- Compact encapsulated module with PCB and chassis mounting options.
- Reliable operation over temperature range from -10°C to 60°C.
- Steel case with isolated case ground for enhanced EMI/RFI performance.
- High MTBF of 2,600,000 hours ensuring long service life.
- Suitable for applications including photomultiplier tubes and piezo devices.
- Compliance with UL (E344664) and RoHS standards.
Product Description
XP Power C60N is a miniature high voltage DC/DC converter designed for precise and stable power supply in sensitive electronic instrumentation. It operates with an input voltage range of 11.5 V to 16 V DC and outputs a regulated voltage up to 8 kV with low noise and ripple characteristics.
The compact encapsulated module supports PCB and chassis mounting, featuring a robust steel case with isolated ground to reduce EMI and RFI interference. Designed to operate reliably within -10°C to 60°C, it ensures consistent performance in various industrial and laboratory environments.
With a maximum output power of 1 W and output current of 10 mA, the C60N model excels in applications such as photomultiplier tubes, solid state detectors, electrophoresis equipment, piezoelectric devices, capacitor charging, and EO lenses. Its high MTBF of 2.6 million hours attests to its durability and reliability.
This converter series incorporates a regulated quasi-sinewave oscillator design which allows for programmable output and improved stability, making it suited for integration with delicate equipment requiring precise voltage control.
The product conforms to UL (E344664) and RoHS standards to ensure safety and environmental compliance, suitable for deployment in industrial, laboratory, and manufacturing settings involving high voltage DC power conversions.
High stability and low noise output with 0.1% peak-to-peak ripple. Programmable output with quasi-sinewave oscillator design. Compact encapsulated module with PCB and chassis mounting options. Reliable operation over temperature range from -10°C to 60°C.
Steel case with isolated case ground for enhanced EMI/RFI performance. High MTBF of 2,600,000 hours ensuring long service life. Suitable for photomultiplier tubes, piezoelectric devices, and capacitor charging. UL and RoHS compliant for safety and environmental standards.
The XP Power C60N DC/DC converter offers a dependable solution for precise high voltage power supply, optimized for use in a broad range of industrial, laboratory, and electronic applications. Explore more DC/DC Converters and power supply products on EnvMart for your specific project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The C60N operates with an input voltage range of 11.5 V to 16 V DC.
This model can output a maximum voltage of up to 8 kV.
The output current rating for this converter is 10 mA.
The dimensions of the C60N are 53.34 mm in length and 28.19 mm in width.
The maximum operating temperature for the C60N is 60°C.
It features a low noise output with a peak-to-peak ripple of 0.1%.
This model supports PCB and chassis mounting options.
The mean time between failures (MTBF) for this converter is 2,600,000 hours.
It complies with UL (E344664) and RoHS standards.
This converter is suitable for applications including photomultiplier tubes, piezoelectric devices, and capacitor charging.
The C60N comes as an encapsulated module.
The minimum operating temperature for the C60N is -10°C.
