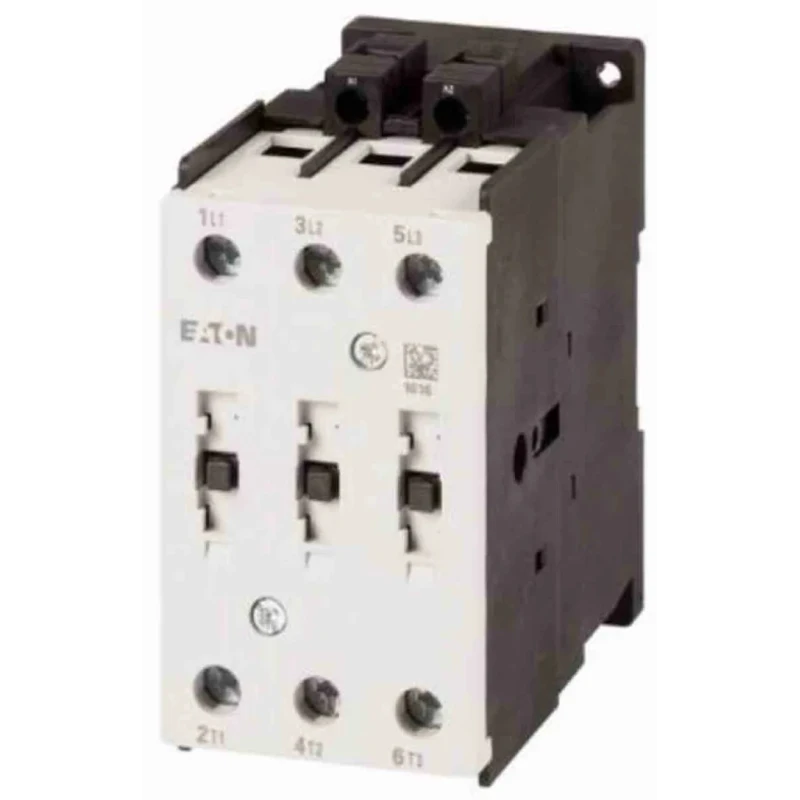

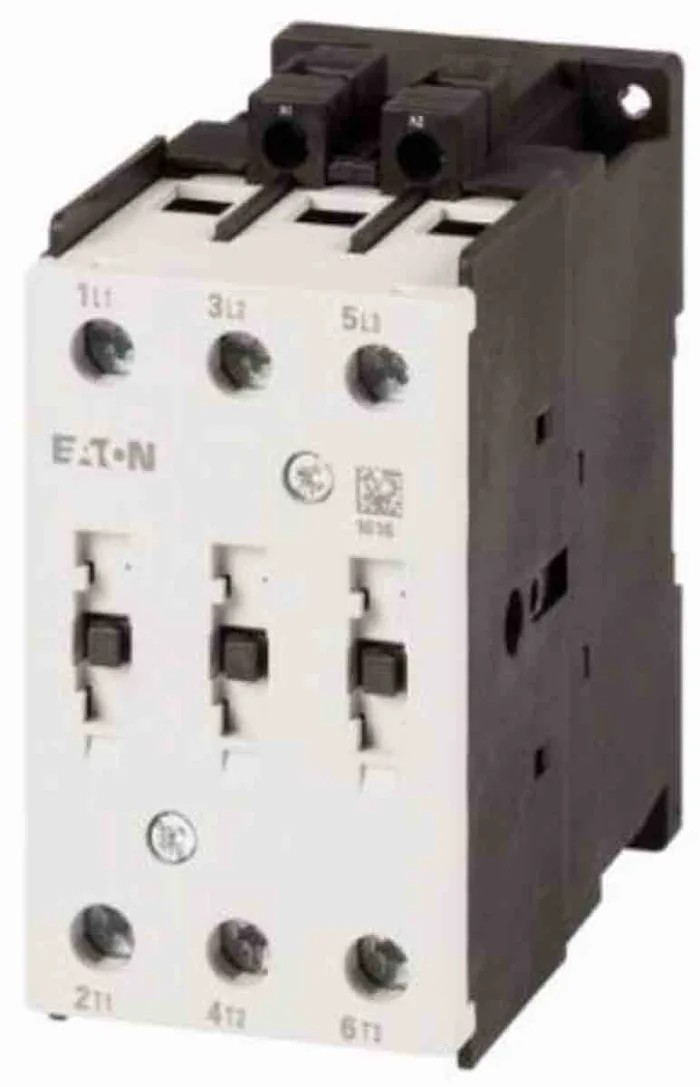

Eaton Motor Control Contactor 24V dc Coil, 3-Pole, 50A, 22kW, 660V, 3 NO DILMT7

Eaton DILMT7 motor control contactor is designed to provide reliable switching and control for three-phase motors and other industrial equipment. Featuring a 24V dc coil and three poles, it supports a maximum contact current of 50A and power rating of 22kW at 660V, making it suitable for robust motor control tasks in various industrial environments.

The device is engineered with screw terminal connections ensuring secure and stable electrical contact. Its 3 normally open (NO) contact configuration allows effective motor start/stop control. The contactor is specifically designed for motor control applications, supporting utilization categories AC-1 and NAC-3, thereby accommodating non-inductive or slightly inductive loads as well as AC induction motors.

Mounting on a DIN rail simplifies installation and integration into existing control panels. The contactor operates effectively within a temperature range of -25°C to 55°C and is built to withstand storage temperatures from -40°C to 80°C, enhancing durability and reliability in demanding industrial settings.

Compact dimensions of 104mm length, 55mm width, and 103mm depth make this device suitable for space-constrained control cabinets. Compliance with CSA, EN, IEC, and UL standards ensures that it meets international safety and operational requirements.

Equipped with screw terminal type for secure electrical connections. Designed for motor control applications with a 3 normally open (NO) contact configuration. Mounts easily on standard DIN rail systems for flexible installation.

Operates reliably within temperatures ranging from -25°C to 55°C. Compact dimensions measuring 104mm length, 55mm width, and 103mm depth. Complies with CSA, EN, IEC, and UL standards ensuring quality and safety. Manufactured in China under Eaton's specialized DILMT7 series.
