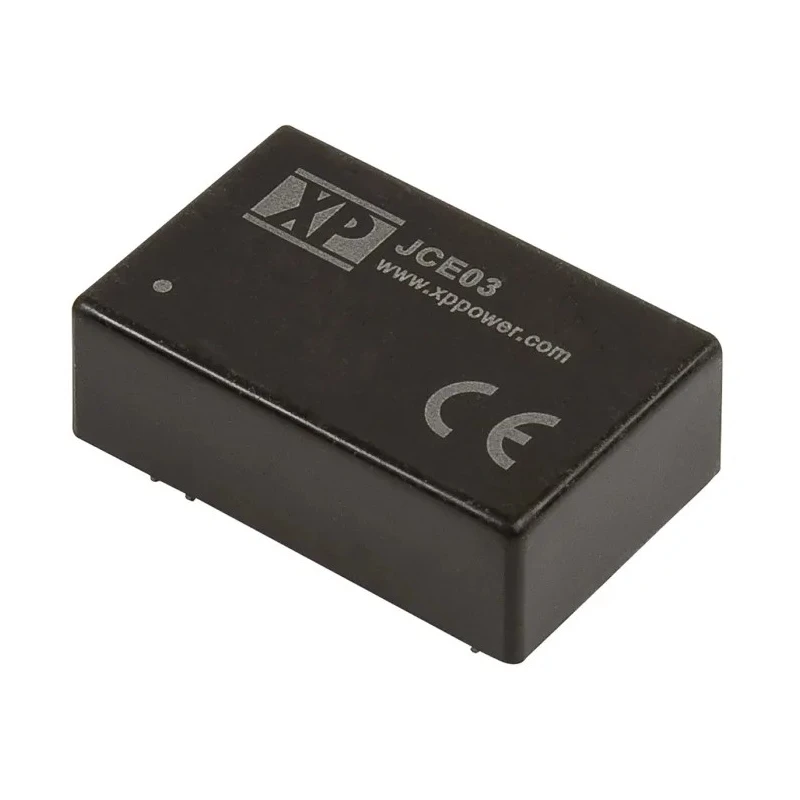

XP Power JCE03 DC/DC Converter Dual Output 24V, -24V, 63mA, 18-36V Input, 3W, Through Hole DIP24 Package JCE03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCE03 DC/DC Converter, 24V, -24 V/ 63 mA |
| Brand | XP Power |
| Efficiency | 81% |
| Length | 31.75mm |
| Model | JCE03 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCE03 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 24, -24V |
| Output Current 1 | 63mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers 1500 VDC isolation with 3000 VDC option for enhanced safety.
- Features a standard through hole DIP24 package with 24 pins.
- Ensures fully regulated dual outputs with an output current of 63mA.
- Operates efficiently up to 81%, suitable for industrial and commercial applications.
- Wide operating temperature range from -40°C to 100°C for harsh environments.
- Requires no minimum load, simplifying power management in circuits.
- Designed for reliable performance in power conversion and voltage regulation.
- Manufactured in Taiwan, Province Of China, assuring quality standards.
Product Description
XP Power JCE03 DC/DC Converter is a fully regulated, isolated dual output power module delivering 3 watts with ±24V outputs. It supports a wide input voltage range from 18 to 36 volts DC, making it highly versatile for various electronic power supply designs.
The converter features robust 1500 VDC isolation to protect sensitive circuitry, with a higher 3000 VDC isolation option available for demanding industrial environments. Its industry-standard DIP24 through-hole package ensures easy PCB integration with 24 pins and compact form factor measuring 31.75mm by 20.32mm by 10.16mm.
Operating efficiently at 81%, the JCE03 series meets the requirements of commercial and industrial applications, including telecommunications, instrumentation, and power management systems. It functions reliably over a wide temperature range from -40°C up to 100°C, suitable for harsh ambient conditions without loss of performance.
This converter is designed without minimum load requirements, simplifying design considerations. The dual outputs provide stable ±24V voltages at up to 63mA current, ideal for isolated logic and analog circuitry requiring bipolar power rails.
1500 VDC isolation with optional 3000 VDC feature. Dual isolated ±24V outputs, 63mA current capacity. Wide operating temperature range from -40°C to 100°C. 3W output power with 81% efficiency for energy savings. Standard through hole DIP24 package for easy mounting.
Compact dimensions suited for dense PCB layouts. No minimum load requirements streamline power design. Robust input voltage range of 18 to 36V DC. Manufactured to strict quality standards in Taiwan.
The XP Power JCE03 DC/DC Converter is ideal for applications in industrial controls, instrumentation, communications equipment, and general power isolation needs. Its reliability and performance ensure efficient power conversion and system stability.
Explore EnvMart’s wide range of XP Power converters and power supplies for your electronic and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual isolated outputs of ±24V.
The maximum output power is 3 watts.
It operates with a wide input voltage range from 18V to 36V DC.
It operates efficiently at 81%.
The dimensions are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It features a robust isolation voltage of 1500 VDC, with an optional 3000 VDC for enhanced safety.
It can operate in temperatures ranging from -40°C to 100°C.
This unit has two outputs.
It features a standard through hole DIP24 package for easy mounting.
The output current capacity is 63mA.
It is manufactured in Taiwan, Province Of China.
No, it is designed without minimum load requirements, simplifying power management in circuits.
