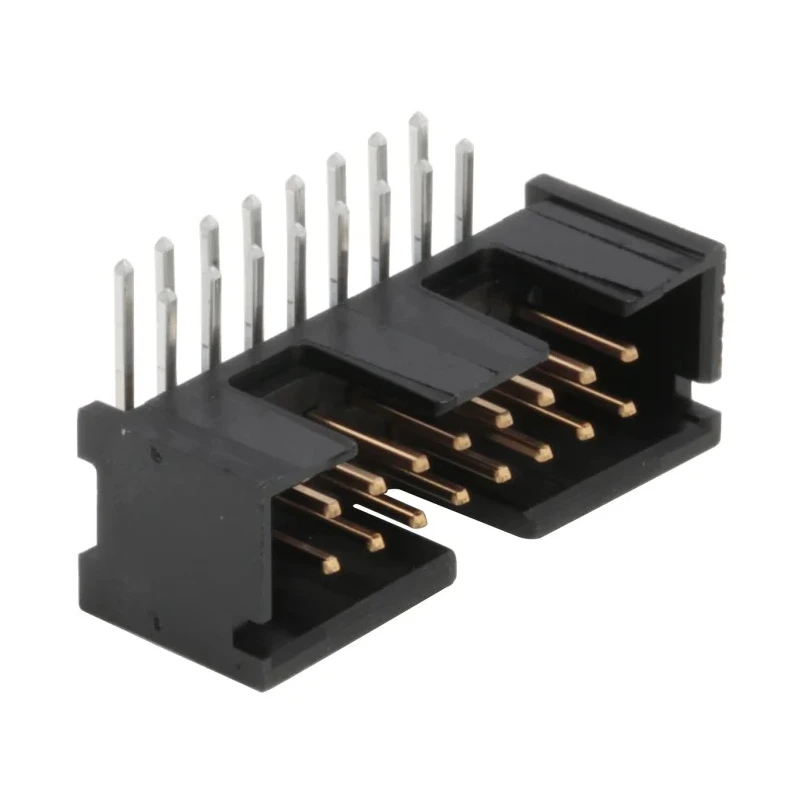

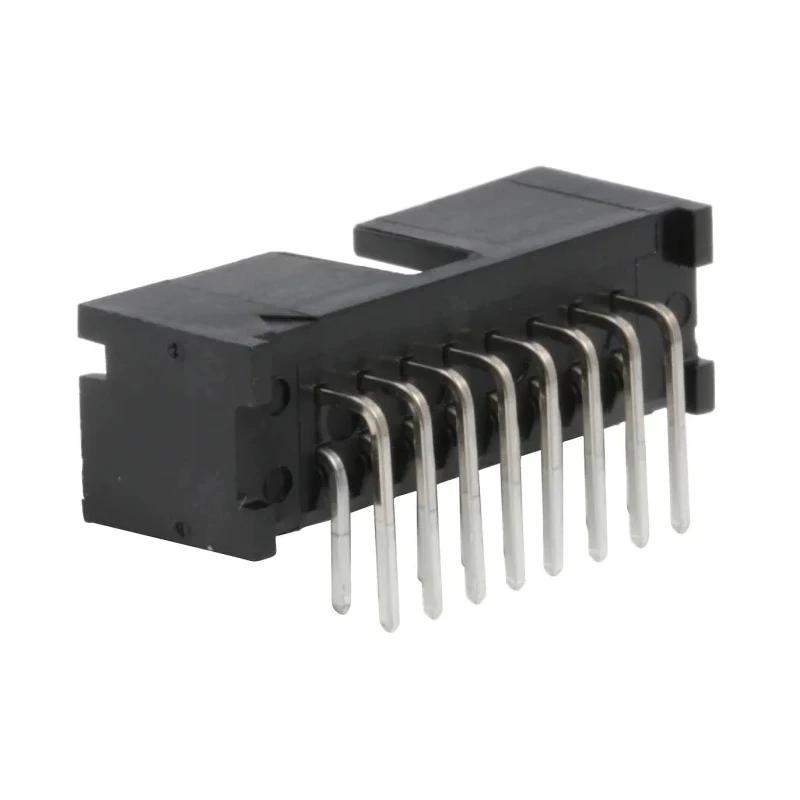

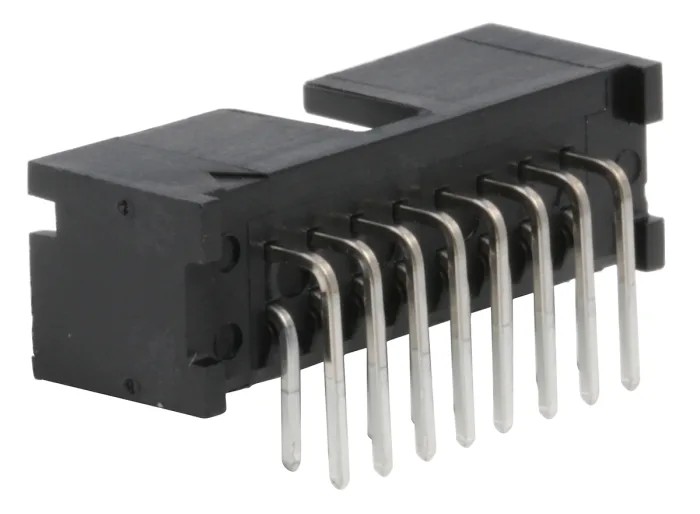

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 16 Contacts, 2.54mm Pitch, 2 Row, Shrouded 5103310-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
Key Features
- Features a low profile 2.54 x 2.54 mm centreline pitch for precise PCB connectivity.
- Constructed with flame retardant 94V-0 rated thermoplastic housings for durability.
- Gold-plated copper alloy contacts ensure reliable electrical performance.
- Includes board standoffs to facilitate excess flux removal during soldering.
- Operates safely within -55°C to 105°C temperature range for versatile applications.
- Designed with kinked solder tails for secure and stable PCB connections.
- Suitable for wire-to-board connection systems in industrial and electronic assemblies.
- Uses a right angle orientation, ideal for compact PCB layouts.
Product Description
TE Connectivity 5103310-3 AMP-LATCH Series Right Angle Through Hole PCB Header features a 16 contact, 2.54 mm pitch, 2-row shrouded housing designed for robust wire-to-board connections.
The connector is constructed from flame retardant 94V-0 rated thermoplastic, providing excellent durability and safety in industrial environments. Its low profile design and centre and dual polarization slots ensure accurate mating with IDC ribbon cable connectors.
Gold-plated copper alloy contacts offer superior electrical conductivity and corrosion resistance, suitable for reliable signal and power transmission.
Board standoffs facilitate efficient flux removal during soldering, ensuring high-quality solder joints. The kinked solder tails secure the connectors firmly to the PCB, enhancing mechanical stability.
With a voltage rating of 250 V and current rating of 1 A, this male contact connector supports a wide range of electronic applications, operating safely between -55°C and 105°C. Low profile 2.54 mm pitch centreline design for precision mountings.
Flame retardant thermoplastic housing 94V-0 rated for safety. Gold-plated copper alloy contacts for enhanced reliability. Board standoffs assist with flux removal during soldering processes. Kinked solder tails for a secure PCB connection.
Right angle orientation optimizes space on PCB layouts. Suitable for use in PCs, business equipment, medical devices, storage, networking, industrial controls, appliances, and electrical testing equipment. This AMP-LATCH PCB Header is ideal for demanding industrial, commercial, and electronic manufacturing applications requiring reliable, compact wire-to-board connectors.
Explore more high quality connectors and electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 250 V.
This connector has a current rating of 1 A.
It operates safely within a temperature range of -55°C to 105°C.
This model features 16 contacts.
It uses a through hole mounting type.
The housing is constructed from flame retardant thermoplastic rated 94V-0.
This connector uses solder termination type.
The pitch size of the contacts is 2.54 mm.
This model is designed with a right angle orientation.
The tail pin length is 3.43 mm.
Yes, it is designed for wire-to-board connection systems.
The contacts are gold-plated for enhanced reliability.
