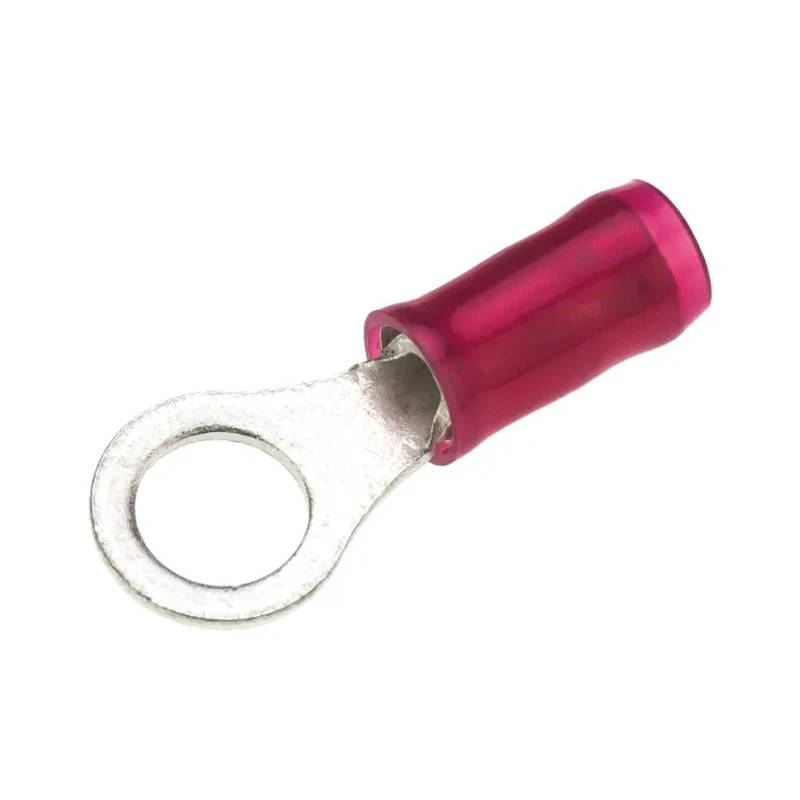

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Red 130005
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 130005 |
| Insulation | Insulated |
| Overall Length | 21.6mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed from high conductivity copper with tin plating for reliable contact.
- Features a copper sleeve to enhance wire insulation support and prevent fraying.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Colour-coded nylon insulation aids quick wire size identification.
- Funnelled wire entry allows fast and easy wire insertion during production.
- Meets RoHS standards for environmental compliance.
- Suitable for use in instruments, control systems, lighting, power supplies, and aerospace applications.
- Designed to provide uniform and reliable crimps for demanding circuit environments.
Product Description
TE Connectivity 130005 PIDG Insulated Ring Terminal is engineered for secure electrical connections requiring M5 stud size terminals. It supports wire sizes ranging from 22 AWG (0.25mm²) to 16 AWG (1.6mm²) and features a high-quality copper body with tin plating for excellent conductivity and corrosion resistance.
The ring terminal includes a copper sleeve surrounding the wire barrel to improve insulation support, preventing fraying and enhancing durability. Its serrated barrel design ensures superior contact and tensile strength upon crimping, ensuring reliable and consistent electrical connections.
The outer red nylon sleeve provides clear colour coding for wire size identification, facilitating efficient assembly operations. The funnelled wire entry design allows easy insertion of wires with minimal strand disruption, supporting high-speed manufacturing processes.
These terminals comply with RoHS standards, making them environmentally friendly and suitable for a variety of industrial and commercial applications including instrumentation, control panels, lighting systems, power supplies, transportation equipment, lifting mechanisms, motors, aerospace, and household appliances.
TE Connectivity's PIDG Ring Terminals are manufactured in the United States, ensuring adherence to rigorous quality standards. Constructed from high conductivity copper with tin plating for reliable contact. Features copper sleeve for improved wire insulation support.
Serrated wire barrel ensures maximum contact and tensile strength after crimping. Colour-coded nylon insulation sleeve aids in wire size identification. Funnelled wire entry facilitates fast and easy wire insertion. RoHS compliant for environmental safety.
Designed for uniform and reliable crimps in challenging circuit environments. Ideal for instruments, control, lighting, power supplies, transportation, lifting equipment, motors, aerospace, and appliances. Explore more products in our Power Connectors category to find compatible components and accessories to complete your electrical assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes ranging from 22 AWG (0.25mm²) to 16 AWG (1.6mm²).
It is designed for M5 stud size terminals.
The terminal is constructed from high conductivity copper with tin plating for reliable electrical contact and corrosion resistance.
The maximum operating temperature is 105°C.
The serrated wire barrel design ensures maximum contact and tensile strength after crimping, promoting reliable electrical connections.
The funnelled wire entry design allows for fast and easy wire insertion, minimizing strand disruption during assembly.
The insulation is color-coded red, aiding in quick wire size identification.
Yes, it meets RoHS standards for environmental compliance.
The outer ring diameter is 7.92mm.
The overall length of this terminal is 21.6mm.
This terminal is manufactured in the United States.
It is suitable for use in instruments, control systems, lighting, power supplies, and aerospace applications.
