Tektronix TPS2000 Series Passive Voltage Oscilloscope Probe 200 MHz Bandwidth P2220

Free Delivery in India | Lowest Global Shipping Charges

Tektronix TPS2000 Series Passive Voltage Oscilloscope Probe 200 MHz Bandwidth P2220

Name: Tektronix TPS2000 Series Passive Voltage Oscilloscope Probe 200 MHz Bandwidth P2220
Brand: TEKTRONIX
SKU: 189149
Price: 302.21 USD
Availability: InStock



Category Oscilloscope Probe Brand TEKTRONIX Condition New

Specifications

Country of Origin	United States
Brand	Tektronix
Model	P2220
Connector Type	Ground Lead, Hook Tip
Bandwidth	200MHz
Series	TPS2000
Probe type	Passive, Voltage
Rise Time	2.2ns
Standards/Approvals	UL, EN 610101 2001, CE, CSA
Safety Category Level	CAT II
Safety Category Voltage	300V
Maximum Common Mode Input Voltage	150V
Bandwidth for 10	1/1:1 is 200MHz/6MHz
Input impedance for 10	1/1:1 is 10Mohm/1Mohm
Rise time for 10	1/1:1 is
Attenuation ratio is 10	1/1:1
Tektronix Oscilloscope ProbeBrand	Tektronix

Key Features

The probe supports a maximum common mode input voltage of 150V.

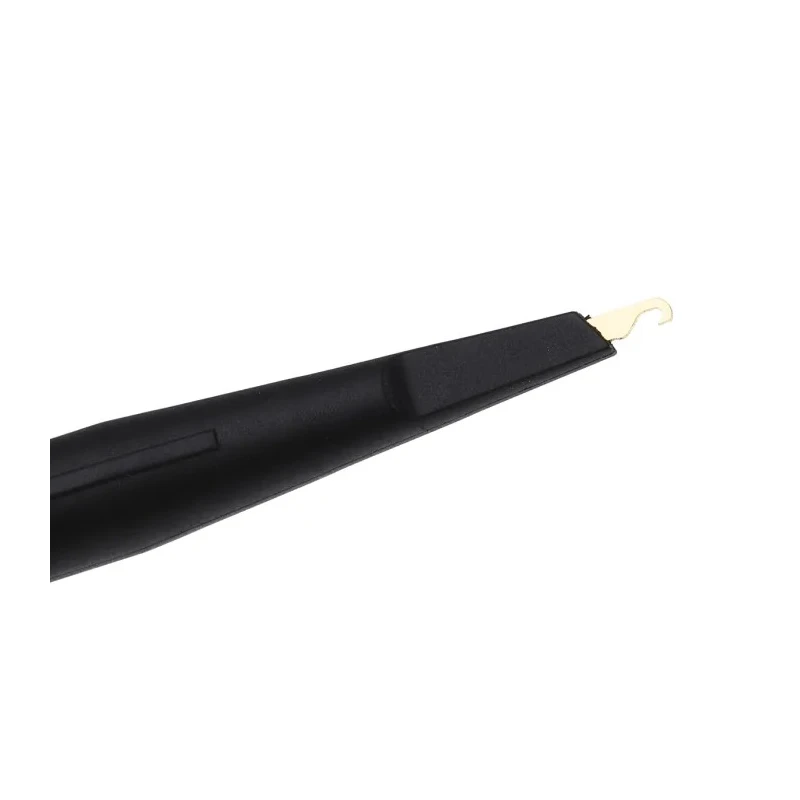

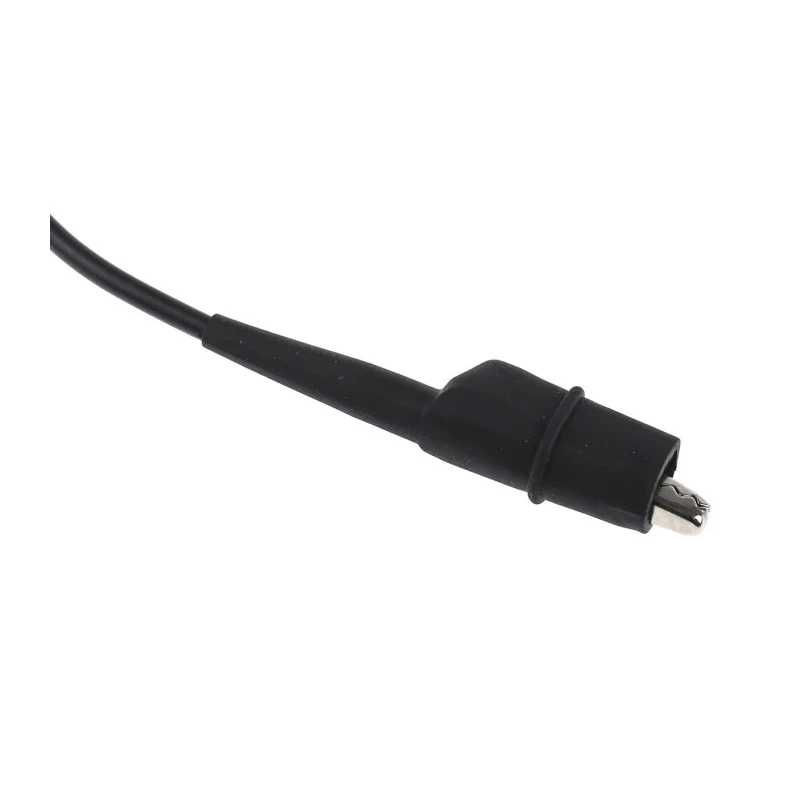

Features a ground lead and hook tip connector for secure connection.
Compatible with multiple Tektronix oscilloscope series including TPS2000 and TDS2000.
Provides fast rise time of 2.2 ns ensuring precise signal capture.
Designed for CAT II safety level and rated at 300V safety voltage.
UL, EN 61010-1 2001, CE, and CSA safety approvals ensure reliability and compliance.
Offers floating measurement capability up to 30 VRMS with TPS2000 series oscilloscopes.
Compact design enhances usability in industrial and laboratory environments.

Product Description

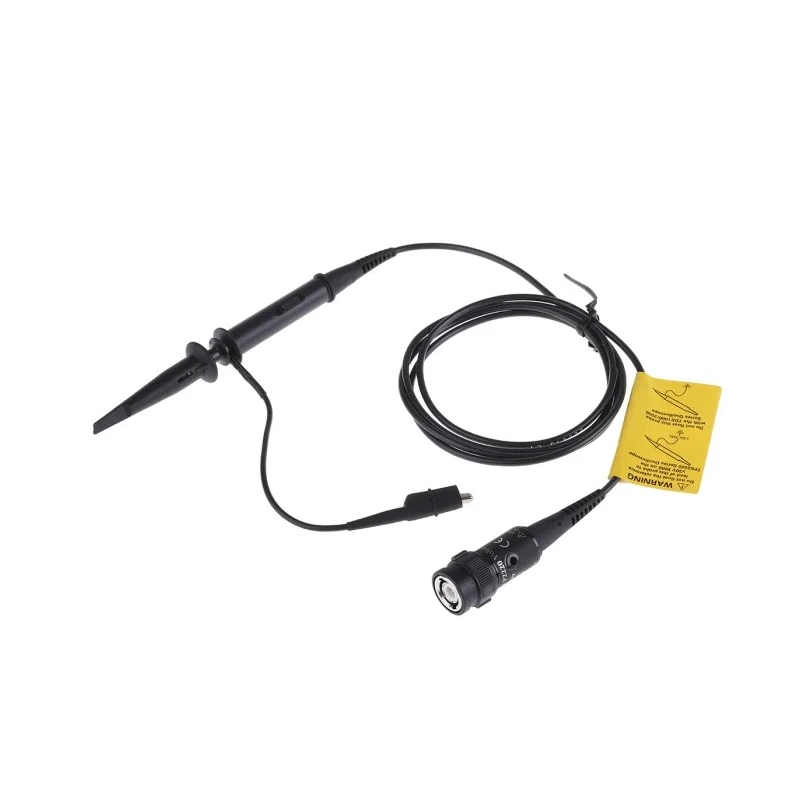

Tektronix P2220 passive voltage Oscilloscope Probe from the TPS2000 series provides a 200 MHz bandwidth and selectable 10:1 or 1:1 attenuation ratio via a switch on the probe head. This high-performance probe supports a maximum common mode input voltage of 150V and features a ground lead with a hook tip connector for secure and stable connections during testing.

Designed for use with the TPS2000 series and compatible with TDS200, TDS1000, TDS1000B, TDS2000, and TDS2000B oscilloscopes, the P2220 probe is suited for precision signal measurement in industrial, laboratory, and manufacturing applications. It offers a fast rise time of 2.2 nanoseconds, ensuring accurate capture of fast transient signals.

The probe meets CAT II safety category level, rated for 300V, and complies with UL, EN 61010-1 2001, CE, and CSA standards, providing assurance of electrical safety and durability in demanding environments.

Its compact design allows for ease of use in tight spaces, while floating measurement capability up to 30 VRMS enhances versatility with compatible Tektronix oscilloscopes. This makes it ideal for electrical testing, troubleshooting, and engineering development tasks.

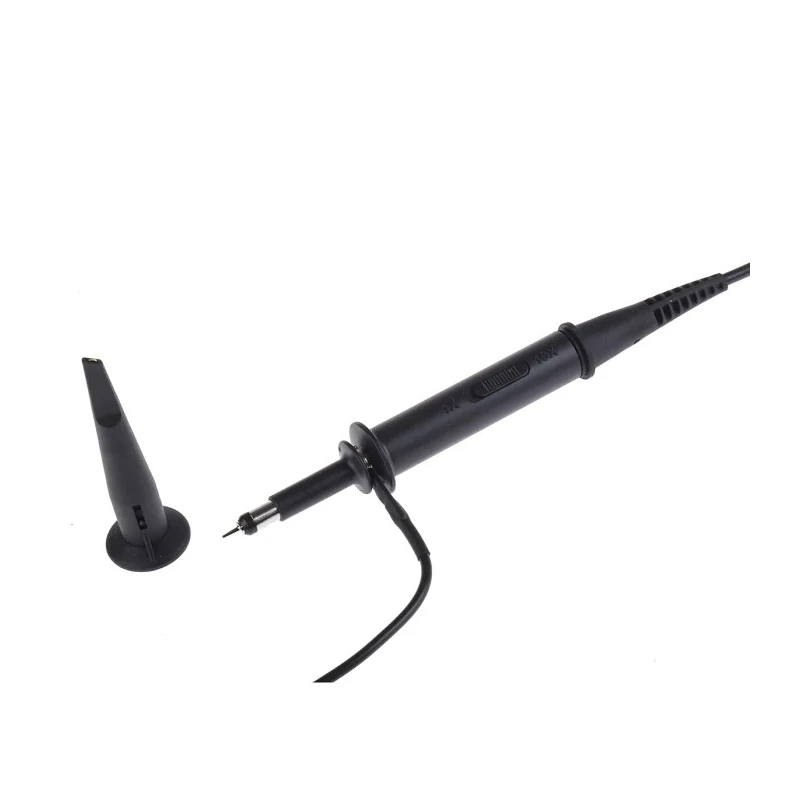

The probe provides 200 MHz bandwidth for 10:1 attenuation and 6 MHz bandwidth for 1:1 attenuation settings. Input impedance varies between 10 MΩ for 10:1 and 1 MΩ for 1:1 attenuation, matching application requirements. Contains a switch to toggle attenuation ratio, facilitating flexible measurement range.

Compliant with multiple international safety and performance standards for quality assurance. Proven compatibility across Tektronix oscilloscope series ensures easy integration. Compact and robust probe design supports reliable operation in industrial and laboratory settings.

Enhances measurement precision due to low rise time and high frequency response.

Tektronix remains a trusted brand in test and measurement equipment, and the P2220 probe is a quality component for oscilloscope applications. Explore our full range of measuring and testing instruments at EnvMart for comprehensive solutions to your electrical testing needs.
