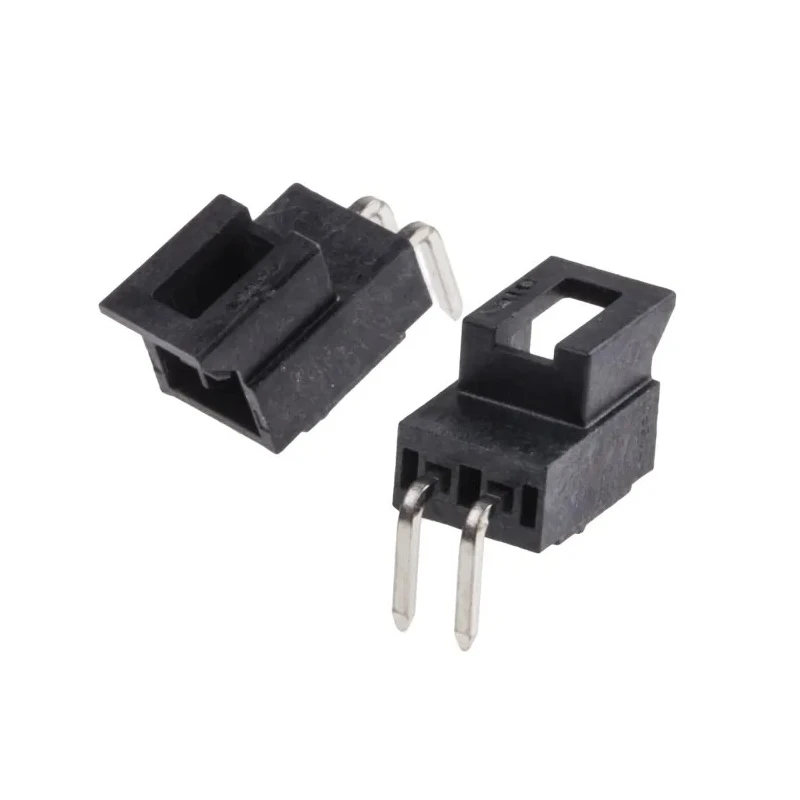

Molex Nano-Fit Series Right Angle Through Hole PCB Header, 2 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 105313-1202

Molex 105313-1202 Nano-Fit Series right angle through hole PCB header is a wire-to-board connector designed for high-density electronic applications. It features 2 brass contacts plated with gold for excellent conductivity and corrosion resistance. The 2.5 mm pitch and single row layout provide a compact footprint, enabling up to 69% PCB space savings compared to standard headers.

The shrouded housing offers full electrical isolation, preventing arcing and short circuits. Its scoop-proof contact design protects pins from damage caused by misalignment during mating or unmating, while the polarization and keying features ensure precise connector alignment, reducing installation errors. The positive locking mechanism mechanically secures the connection with an audible click and tactile feedback if mis-mating is attempted.

Rated for a current of 6.5A and voltage up to 300V, this PCB header supports a wide range of power and signal applications in consumer electronics, automotive interior assemblies, telecommunications equipment, industrial automation, medical devices, aerospace systems, and lighting controls.

The connector is made from Liquid Crystal Polymer material capable of withstanding reflow soldering temperatures up to 260°C, ensuring compatibility with surface mount manufacturing processes and cost-effective assembly.

Operating temperature ranges from -40°C to 105°C, making it suitable for harsh environments and diverse industrial settings. Compact and space-saving design suitable for dense PCB layouts. Shrouded and polarized housing prevents misalignment and damage.

Gold-plated brass contacts ensure reliable solder termination and signal integrity. Rated for 6.5A current and up to 300V voltage for dependable power transmission. Operating temperature range from -40°C to 105°C for broad application versatility.

Right angle orientation facilitates wire-to-board connections in tight spaces. Supports reflow soldering due to Liquid Crystal Polymer housing rated to 260°C. Positive locking mechanism with audible click and tactile feedback confirms secure mating.

This connector series is ideal for engineers designing consumer appliances, telecommunications hardware, automotive lighting and interior electronics, aerospace defense systems, food and beverage processing equipment, medical patient care devices, and industrial automation machinery.
