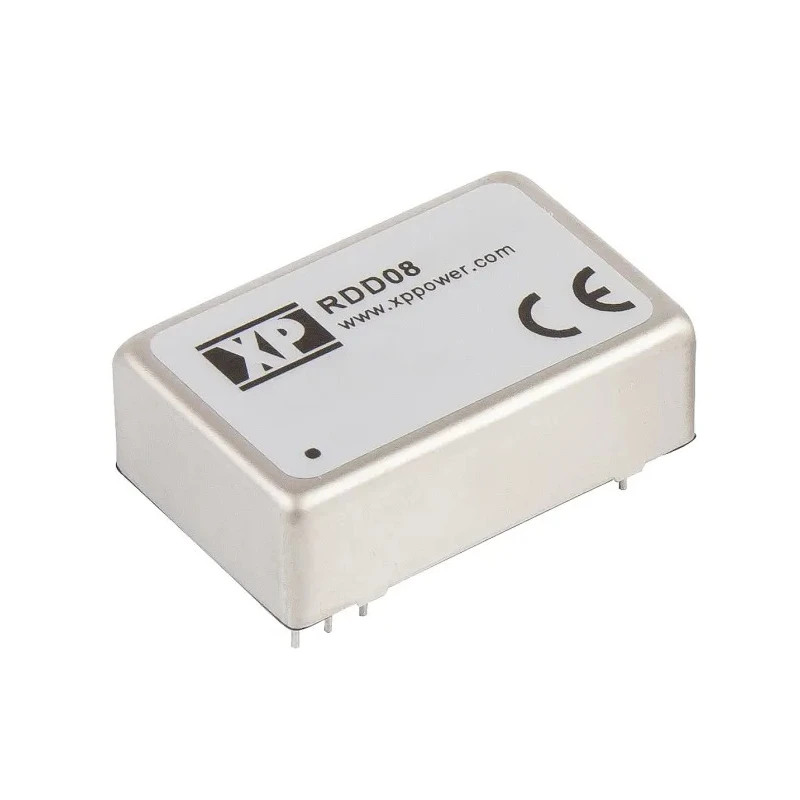

XP Power DC/DC Converter 12V DC Output 665mA, 70V DC Maximum Input, 8W Power Rating, Through Hole Mount, DIP-24 RDD0824S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power RDD DC/DC Converter, 12V dc/ 665 mA, 70V |
| Brand | XP Power |
| Efficiency | 85% |
| Length | 31.75mm |
| Model | RDD0824S12 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | RDD |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 1 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 70V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 13V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 665mA |
| Isolation Voltage | 3kV dc |
Key Features
- Provides a regulated 12V DC output with a maximum current of 665mA.
- Supports a wide input voltage range from 13V to 70V DC for versatile use.
- Delivers a maximum output power rating of 8 watts in a compact DIP-24 through hole package.
- Features 3000V DC isolation voltage ensuring protection and safety.
- Designed for operation in extreme temperatures from -40 °C to +85 °C.
- Highly efficient converter with 85% efficiency ensuring low power loss.
- Complies with RoHS standards and relevant railway approvals such as EN50155 and EN50121-3-2 EMC.
- Compact dimensions of 31.75mm length, 20.32mm width, and 10.16mm depth for space saving PCB designs.
Product Description
XP Power RDD0824S12 is a high-reliability DC/DC converter delivering 12V DC output at 665mA with an 8 watt power capability. Designed in a DIP-24 plastic through hole package, this converter supports a wide input voltage range from 13V to 70V DC, making it suitable for various industrial and railway power supply applications. The converter maintains high efficiency of 85%, minimizing energy loss and heat.
It features 3000V DC isolation voltage to provide electrical safety and noise suppression, essential for robust operation in harsh industrial environments. Operating temperature ranges from -40 °C to +85 °C, enabling deployment in extreme environmental conditions. The device is compliant with RoHS and specific railway industry standards EN50155 and EN50121-3-2 EMC, ensuring suitability for railway and transportation electronics.
The compact size with dimensions of 31.75mm length, 20.32mm width, and 10.16mm depth allows easy integration on PCBs. Its long Mean Time Between Failures (MTBF) of 800,000 hours denotes exceptional reliability and durability in continuous operation scenarios. Packaged in an industry-standard DIP-24 footprint, the RDD0824S12 is ideal for engineers designing versatile DC power supply modules.
Regulated 12V DC output with 665mA maximum current rating. Wide input voltage range of 13V to 70V DC. 8W output power in a DIP-24 through hole package allowing easy assembly. High efficiency of 85% reduces power loss and thermal stress.
3000V DC isolation voltage supports noise immunity and protection. RoHS compliant and certified for railway industry standards EN50155 and EN50121-3-2 EMC. Operating temperature from -40 °C to +85 °C suitable for extreme conditions.
Compact footprint (31.75x20.32x10.16 mm) saves PCB space. 800,000 hours MTBF ensures long operational lifetime. Manufactured in Taiwan, Province Of China assuring quality manufacturing.
XP Power RDD series DC/DC converters are tailored for demanding industrial and railway applications requiring reliable, efficient, and compact power conversion solutions. These converters support designers in creating robust power systems compliant with stringent standards. Explore the XP Power DC/DC Converters category for related innovative power components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 12V DC with a maximum current rating of 665mA.
The maximum input voltage for this unit is 70V DC, allowing for a wide range of input applications.
It has an efficiency rating of 85%, which helps minimize energy loss during operation.
The dimensions of this model are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It can operate in extreme temperatures ranging from -40 °C to +85 °C, making it suitable for harsh environments.
This converter features an isolation voltage of 3000V DC, ensuring electrical safety and noise suppression.
It is RoHS compliant and meets railway industry standards EN50155 and EN50121-3-2 EMC.
This model has a single output, delivering 12V DC at 665mA.
The MTBF for this unit is 800,000 hours, indicating a long operational lifetime.
It is designed for through hole mounting, which facilitates easy assembly on PCBs.
The minimum input voltage required for operation is 13V DC.
This DC/DC converter is suitable for various industrial and railway power supply applications due to its robust design and compliance with relevant standards.
