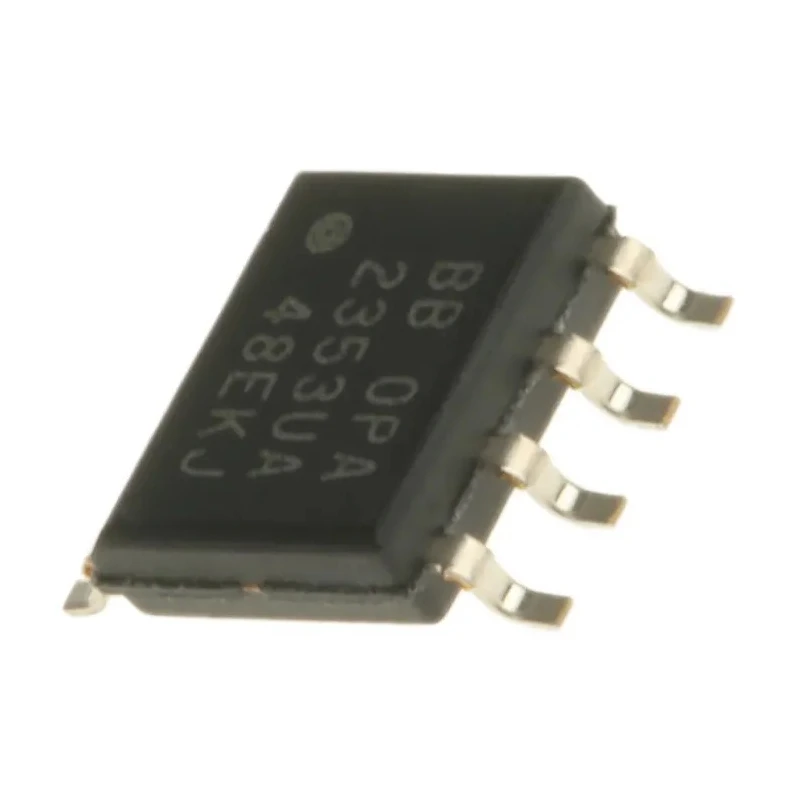

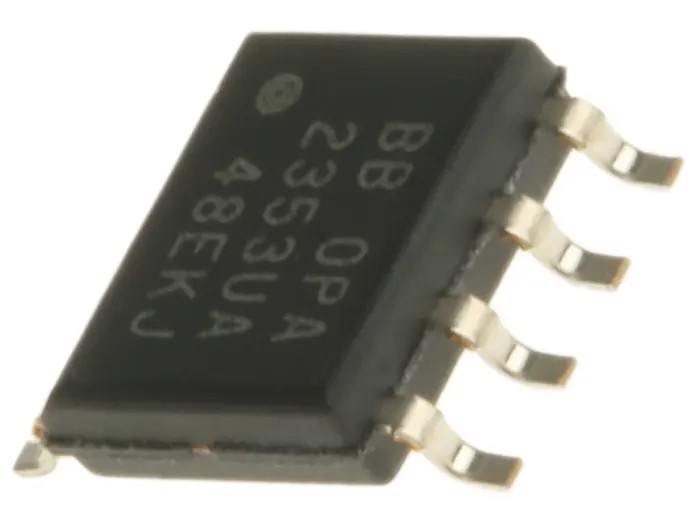

Texas Instruments Operational Amplifier 44 MHz 8-Pin SOIC 5.5V OPA2353UA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA2353UA |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA2353 |
| Output Current | 40mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 44MHz |
| Input Bias Current | ±10 pA |
| Vos - Input Offset Voltage | ±10 mV |
| Slew Rate | 22V/μs |
Key Features
- Operates over a wide supply voltage range from 3 V to 5.5 V.
- Has an input bias current as low as ±10 pA for precision applications.
- Features an input offset voltage of ±10 mV and low input offset current of ±10 pA.
- Includes a maximum output current of 40 mA suitable for driving loads directly.
- Has a compact SOIC surface mount package with dimensions 4.9 mm × 3.91 mm × 1.58 mm.
- Operating temperature range is from -40°C to 85°C for industrial applications.
- Complies with RoHS standards ensuring environmentally compliant manufacturing.
- Not suitable for automotive standard applications.
Product Description
The Texas Instruments OPA2353UA is a precision, high-speed dual operational amplifier designed for demanding analog signal processing applications. Featuring a wide gain bandwidth product of 44 MHz and a fast slew rate of 22 V/μs, this device supports high-frequency signal amplification with excellent linearity.
Operating over a supply voltage range of 3 V to 5.5 V, the OPA2353UA supports low power consumption while maintaining precision performance thanks to its ultra-low input bias current (±10 pA) and minimal input offset voltage (±10 mV). The low input offset current (±10 pA) further enhances accuracy in instrumentation and sensor signal conditioning.
Encased in a compact 8-pin SOIC surface mount package measuring 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, this operational amplifier is suitable for space-conscious PCB designs. It has a maximum output current capability of 40 mA, allowing it to drive moderate loads directly.
The device is qualified for operation over industrial temperature ranges (-40°C to +85°C), making it suitable for use in industrial, instrumentation, test and measurement, communications, and other precision analog applications. It is RoHS compliant, ensuring environmentally friendly production.
Wide supply voltage range from 3 V to 5.5 V. Low input bias and offset currents for accurate signal processing. High gain bandwidth and slew rate for fast signal amplification. Compact SOIC package for ease of surface mounting.
Industrial temperature rating for reliable operation. Compliance with RoHS environmental standards.
Browse similar Operational Amplifiers and other semiconductor amplifiers in the Electronics & Electricals category at EnvMart to find components tailored to your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 44 MHz, allowing for high-frequency signal amplification.
It has a maximum output current capability of 40 mA, suitable for driving moderate loads directly.
This operational amplifier operates over a supply voltage range from 3 V to 5.5 V.
The dimensions of the SOIC package are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The input bias current is as low as ±10 pA, which is beneficial for precision applications.
It is qualified for operation over an industrial temperature range from -40°C to +85°C.
The input offset voltage is specified at ±10 mV, contributing to its precision performance.
The slew rate of this operational amplifier is 22 V/μs, enabling fast signal response.
Yes, it complies with RoHS standards, ensuring environmentally compliant manufacturing.
This operational amplifier features 2 channels, making it suitable for various applications.
It uses a surface mount type, which is advantageous for space-constrained PCB designs.
It is suitable for applications in industrial, instrumentation, test and measurement, and communications.
