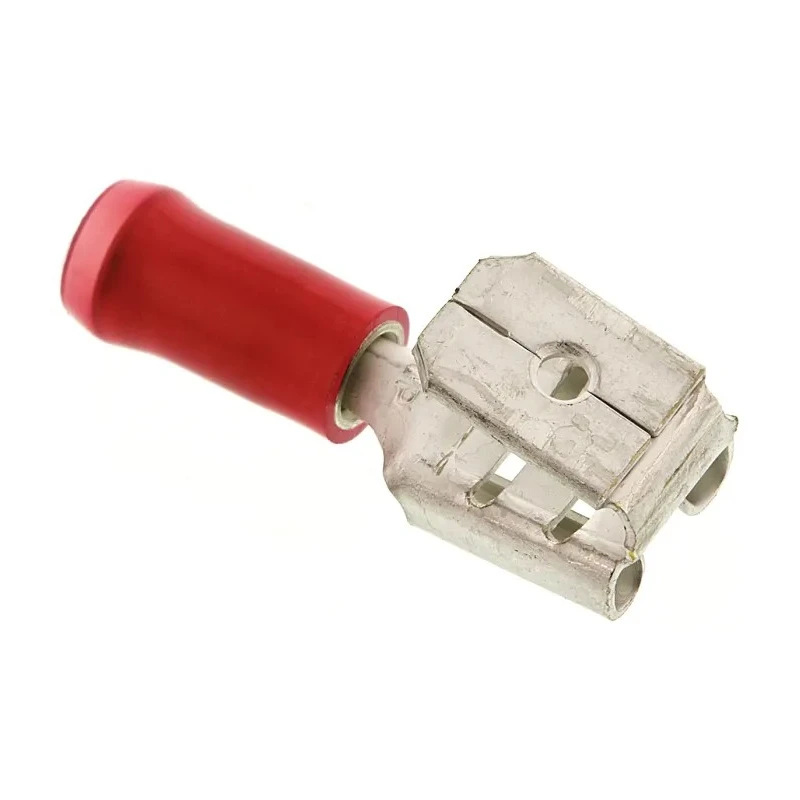

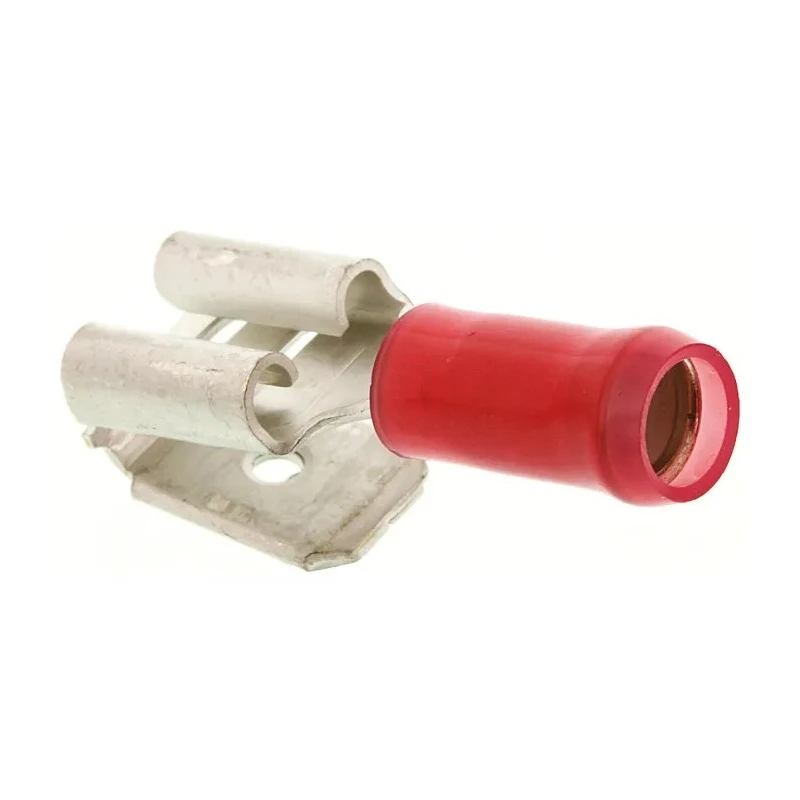

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 160834-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Angled |
| Model | 160834-2 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 23.54mm |
| Contact Material | Brass |
| Series | PIDG FASTON .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
| PIDG RED PIGGYBACKBrand | TE Connectivity |
Key Features
- High conductivity copper body ensures excellent electrical performance.
- Colour-coded nylon insulation for easy wire size identification.
- Copper sleeve enhances wire insulation support after crimping to prevent damage.
- Serrated wire barrel provides maximum contact and tensile strength.
- Funnelled wire entry allows fast and efficient wire insertion during production.
- Angled orientation optimized for reliable connectivity.
- Suitable for use in instruments, control panels, lighting, motors, aerospace, and automotive applications.
- Designed for uniform and reliable crimping with specialized tooling dies.
Product Description
TE Connectivity 160834-2 PIDG FASTON .250 Red Insulated Female Spade Connector is a crimp-style connector providing secure and reliable wire termination with a 6.35mm wide and 0.81mm thick tab size suitable for wire gauges ranging from 22 AWG to 16 AWG. This connector features a high conductivity copper body combined with a tin-plated brass contact to enhance electrical conductivity and corrosion resistance.
The insulation is made of durable nylon and is color-coded red to simplify wire size recognition, complying with industrial wiring standards. The copper sleeve around the wire barrel supports the insulation post-crimp and bends without compromising the wire integrity, preventing conductor breaks and insulation frays. Serrations inside the barrel increase grip strength for a lasting connection.
Its angled orientation provides installation flexibility. The funnelled wire entry design facilitates quick wire insertion, making it optimal for automated or high-speed assembly processes. The PIDG series connectors meet rigorous industrial requirements, making them suitable for use in heavy-duty applications such as control instruments, power supplies, panel boxes, transportation equipment, lifting machinery, and aerospace electrical systems.
This product ensures a uniform, reliable crimp providing consistent performance and high-contact quality in demanding environments. High conductivity copper body guarantees excellent electrical performance. Copper sleeve around barrel supports insulation integrity and prevents wire damage.
Serrations inside wire barrel maximize contact and tensile strength after crimping. Colour-coded nylon insulation enables easy wire size identification. Funnelled wire entry allows fast wire insertion and reduces assembly time.
Designed for reliability and uniformity in crimping processes. Suitable for industrial, automotive, aerospace, and manufacturing applications. Angled female spade contact optimized for reliable connection. Explore more industrial-grade connectors and components at EnvMart for your electrical and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this spade connector is 6.35 mm wide and 0.81 mm thick.
This model is suitable for wire gauges ranging from 22 AWG to 16 AWG.
The contact material is brass, which is tin-plated to enhance electrical conductivity and corrosion resistance.
The overall length of this connector is 23.54 mm.
This connector uses a crimp termination type for secure wire connections.
The insulation material is durable nylon, which is color-coded red for easy wire size identification.
The funnelled wire entry design allows for fast and efficient wire insertion, reducing assembly time.
The orientation of this connector is angled, which provides installation flexibility.
This connector is suitable for use in instruments, control panels, lighting, motors, aerospace, and automotive applications.
Serrations inside the wire barrel maximize contact and tensile strength after crimping, ensuring a reliable connection.
This product is manufactured in India.
The maximum wire size this connector can accommodate is 1.5 mm², corresponding to 16 AWG.
