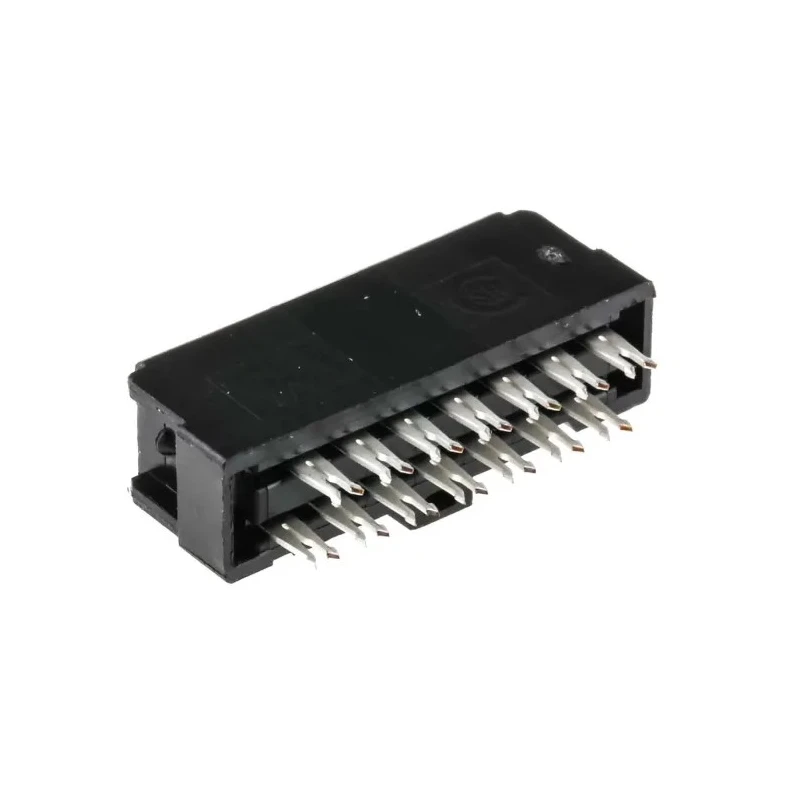

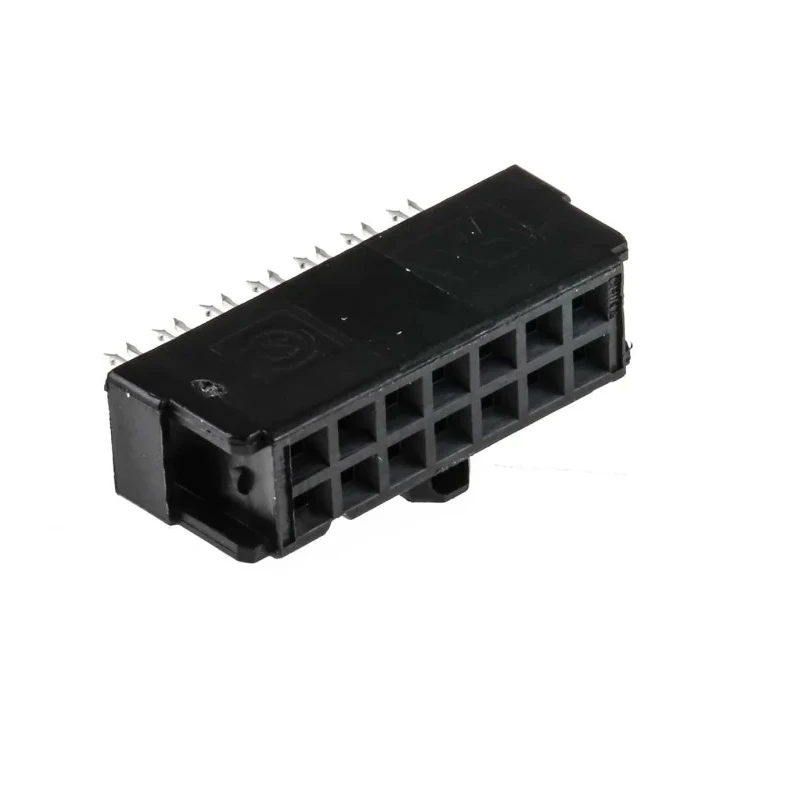

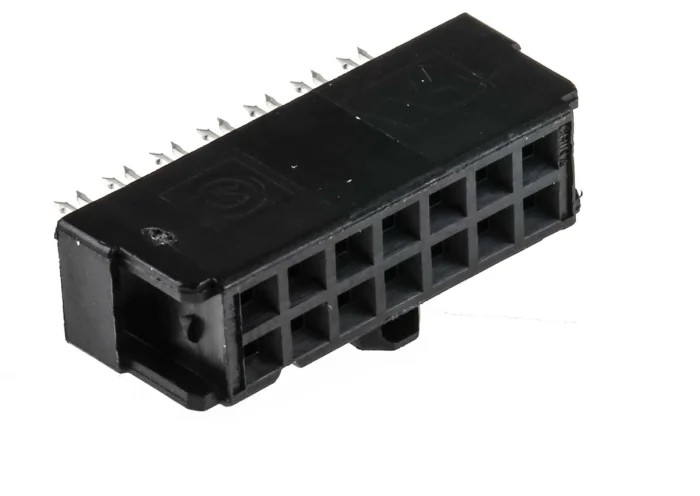

TE Connectivity 14-Way IDC Connector Female Cable Mount, 2 Row, 250V, 1A, AMP-LATCH Novo Series 1658621-2

TE Connectivity 1658621-2 IDC Connector is a high-quality 14-way female connector for ribbon cable assemblies designed for industrial and electronic applications requiring reliable wire-to-board connections at 250V and 1A current. Featuring the AMP-LATCH Novo series design, it incorporates a military-approved tuning fork contact for secure latching and uniform electrical contact, assembled in a shrouded thermoplastic housing that meets UL 94V-0 flammability standards.

The connector supports a 2-row configuration with 14 contacts, spaced at a 2.54mm pitch, ideal for 1.27mm pitch ribbon cables. Its gold over nickel plating ensures corrosion resistance and optimal conductivity. This connector terminates 28-26 AWG wires using insulation displacement contact (IDC) technology, which enables quick and reliable assembly without soldering. The right angle cable mount orientation facilitates integration into tight spaces.

Operating within a temperature range of -65°C to 105°C, this connector is suitable for demanding environments in industries such as telecommunications, instrumentation, manufacturing, and consumer electronics. Its robust phosphor bronze contacts and thermoplastic housing deliver durability and long service life.

The AMP-LATCH series connector is supplied with a cover to protect the contacts, and optional strain relief accessories are available. It conforms to DIN 41651 and DIN EN 60352-3/4 standards, ensuring compatibility with standard ribbon cable assemblies.

Features 14 contacts arranged in 2 rows for 28 positions. Supports 1A current with a voltage rating of 250V. Gold over nickel plated phosphor bronze contacts for enhanced conductivity. Thermoplastic housing material with UL 94V-0 flame rating.

Wide operating temperature range from -65°C to 105°C for reliable performance. Right angle cable mount orientation suitable for compact assemblies. Insulation Displacement Contact termination for fast assembly without solder.

Meets DIN standards 41651 and EN 60352-3/4 for industrial quality.

This IDC Connector is essential for electronic manufacturing, laboratory instrumentation, telecommunications equipment, and industrial control systems requiring reliable, high-quality wiring connections. Explore more connectors and accessories within the Electronics Components category on EnvMart.
