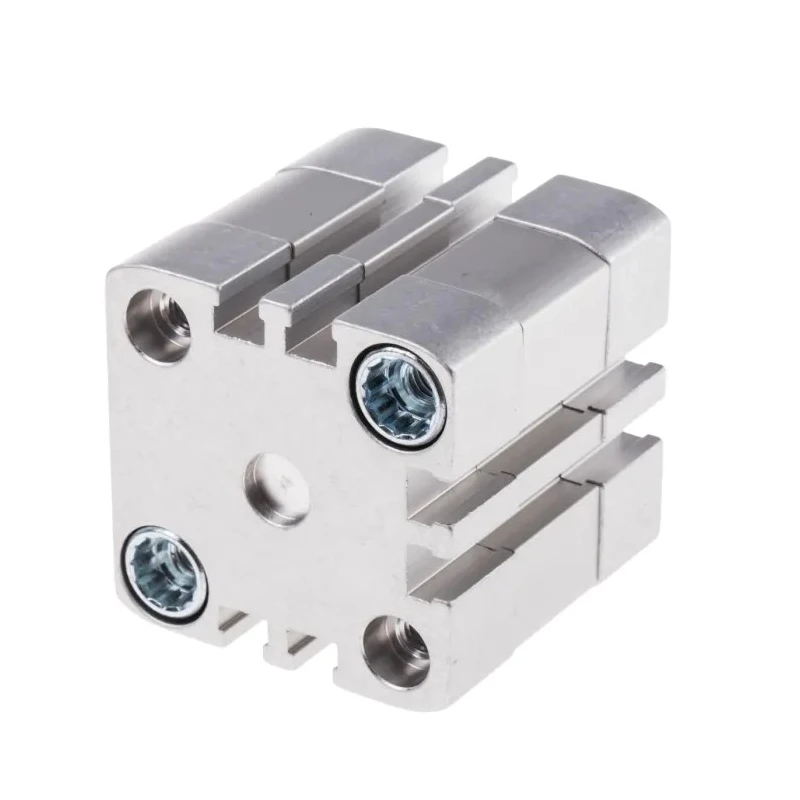

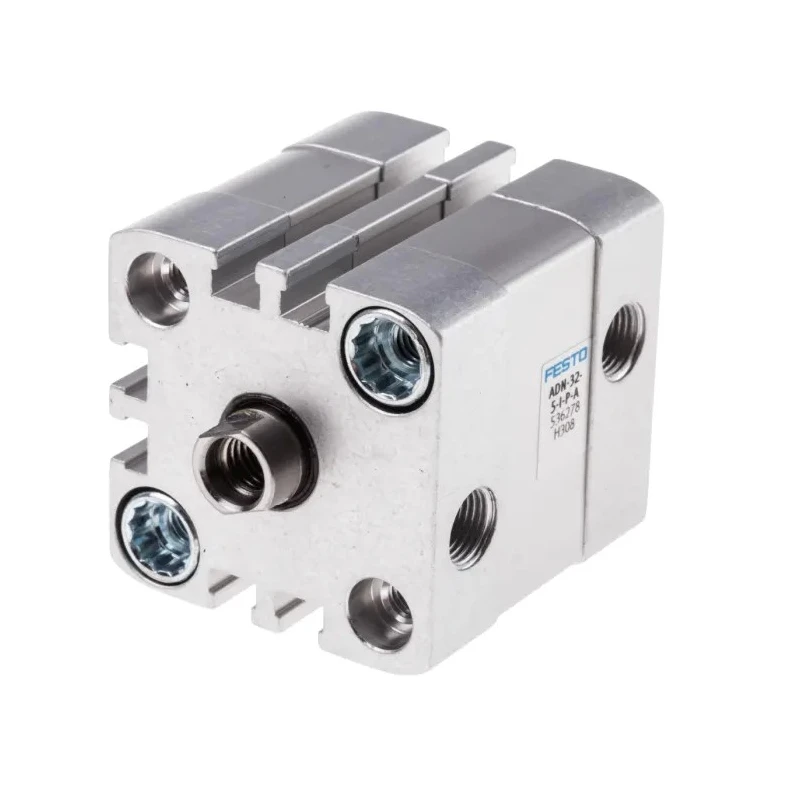

Festo Pneumatic Cylinder 32mm Bore, 5mm Stroke, Aluminium Body, Double Acting, Through Hole Mount ADN-32-5-I-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 47mm |
| Length | 55mm |
| Model | ADN-32-5-I-P-A |
| Width | 47mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 5mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Female |
| Piston Rod Thread Size | 1/8 in G |
Key Features
- Compact design compliant with ISO 21287 standard for use in confined spaces.
- Double acting pneumatic piston enables linear motion with air applied for both extending and retracting.
- Aluminium body provides lightweight and corrosion resistant construction.
- Equipped with air cushioning and cushioning rings for noise reduction and extended service life.
- Dual connection ports allow control of piston rod movement with low friction components.
- Single female piston rod with 1/8 inch G thread size.
- Designed for operation at pressures up to 10 bar and temperatures from -20°C to 80°C.
- Mounts through holes for flexible installation including vertical or horizontal orientation.
Product Description
Festo ADN-32-5-I-P-A Pneumatic Cylinder features a precision-engineered 32mm bore and 5mm stroke with an aluminium body designed in adherence to ISO 21287 standards. This compact pneumatic actuator delivers efficient double acting operation for industrial and manufacturing pneumatic systems.
The cylinder operates by applying compressed air to extend and retract the piston rod, providing reliable linear motion control. It incorporates flexible polymer end cushioning to reduce noise and vibration, thereby extending service life and improving operational productivity.
Designed with a double acting mechanism, it includes dual connection ports for optimal control over piston movement. The aluminium body ensures durability while maintaining lightweight characteristics essential for confined space installations.
The unit supports through hole mounting for versatile fitment options including horizontal and vertical orientations. Additionally, slots provided within the cylinder body facilitate flush mounting of proximity sensors, enabling non-contact piston position detection for automation applications.
Key pneumatic specifications include an operating pressure range up to 10 bar and temperature tolerance between -20°C and 80°C. The single female piston rod with a 1/8 inch G thread enhances ease of integration into existing pneumatic systems.
Compact size complying with ISO 21287 standard and RoHS compliance. Dual ports for double acting pneumatic control. Air cushioning and cushioning rings for noise reduction and durability. Flexible mounting options via through holes.
Slots for proximity sensor installation available. Aluminium body for corrosion resistance and lightweight.
This Festo pneumatic cylinder is ideal for use in industrial automation, manufacturing equipment, fluid power systems, and factory assembly lines. It offers a reliable and efficient solution to linear actuation needs within pneumatic technologies.
Explore the range of Festo Pneumatic Cylinders and actuators on EnvMart to find complementary products for pneumatic and hydraulic tool applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic cylinder is 32mm.
The stroke length of this model is 5mm.
It can operate at a maximum pressure of 10 bar.
The operating temperature range is from -20°C to 80°C.
This pneumatic cylinder supports through hole mounting for flexible installation options.
The body of this model is made of aluminium, providing a lightweight and corrosion-resistant construction.
Yes, it is equipped with air cushioning and cushioning rings to reduce noise and extend service life.
The piston rod is female with a thread size of 1/8 inch G.
It complies with ISO 21287 standards and is RoHS certified.
This model is suitable for industrial automation, manufacturing equipment, fluid power systems, and factory assembly lines.
The double acting mechanism allows the cylinder to extend and retract the piston rod by applying compressed air, enabling efficient linear motion control.
The dimensions of this unit are 55mm in length, 47mm in height, and 47mm in width.
