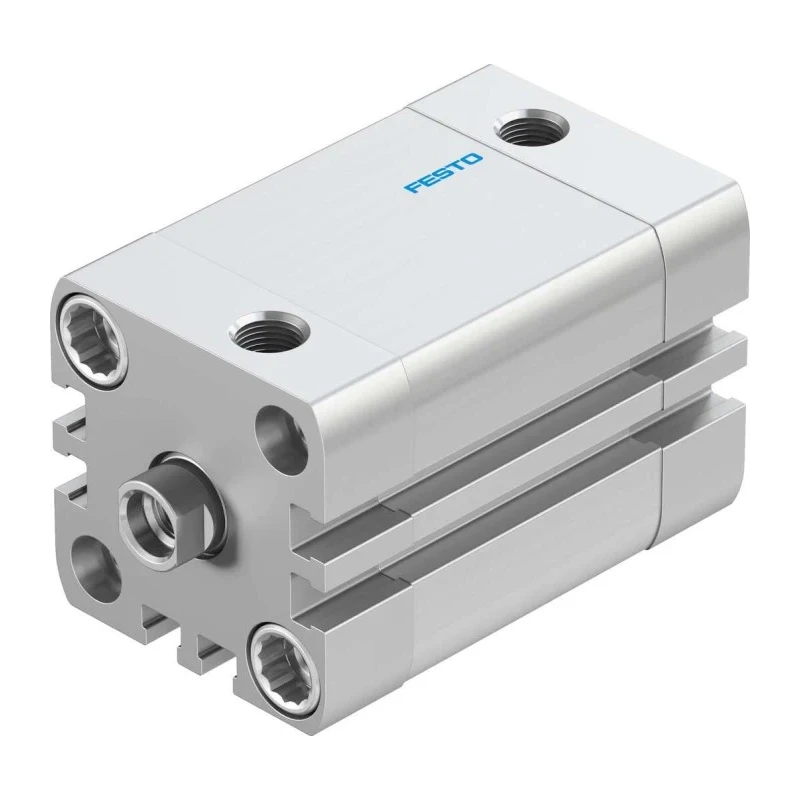

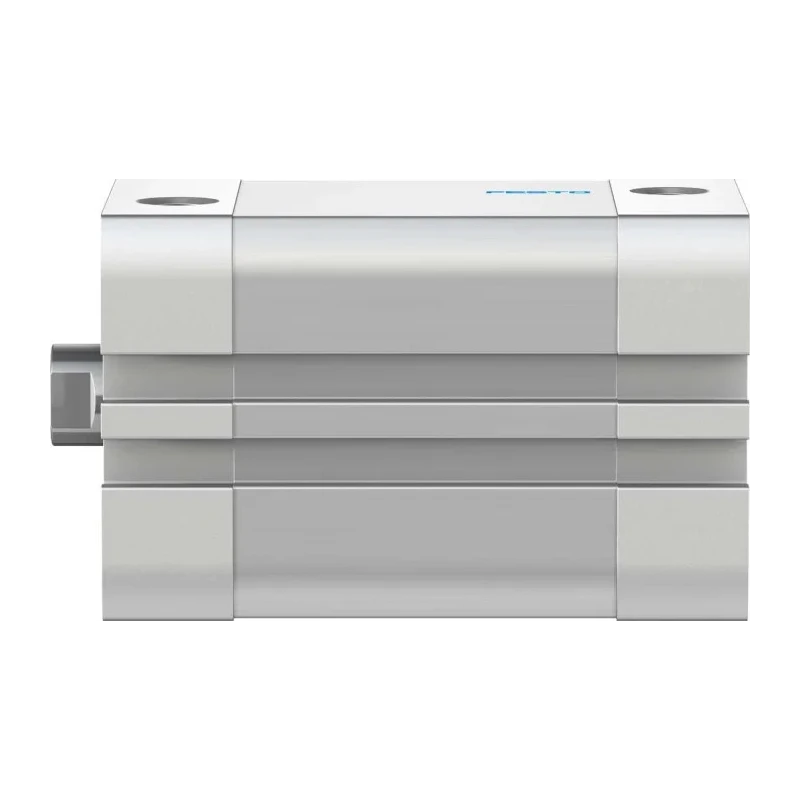

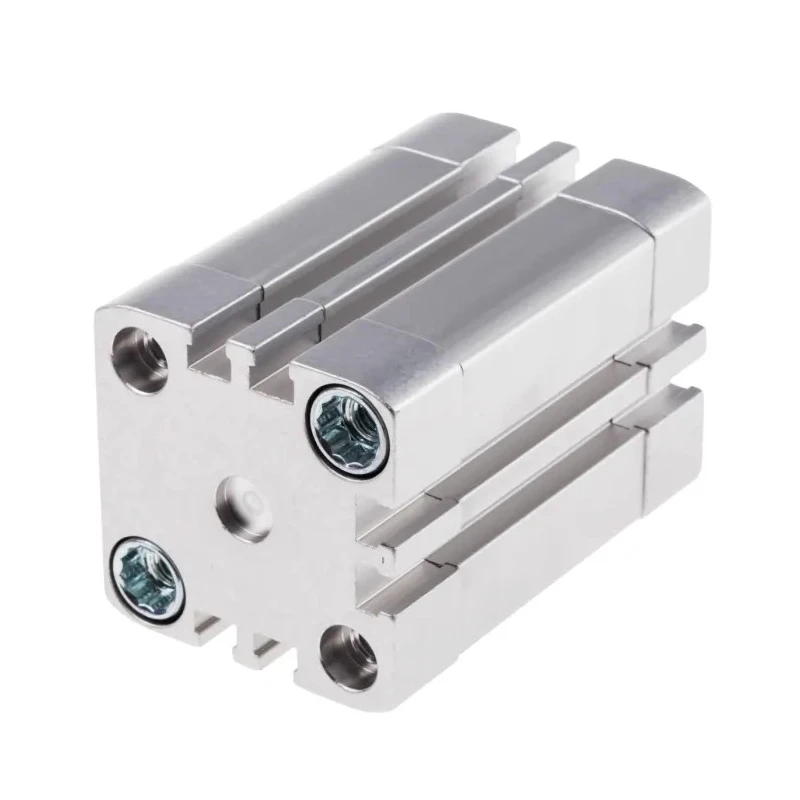

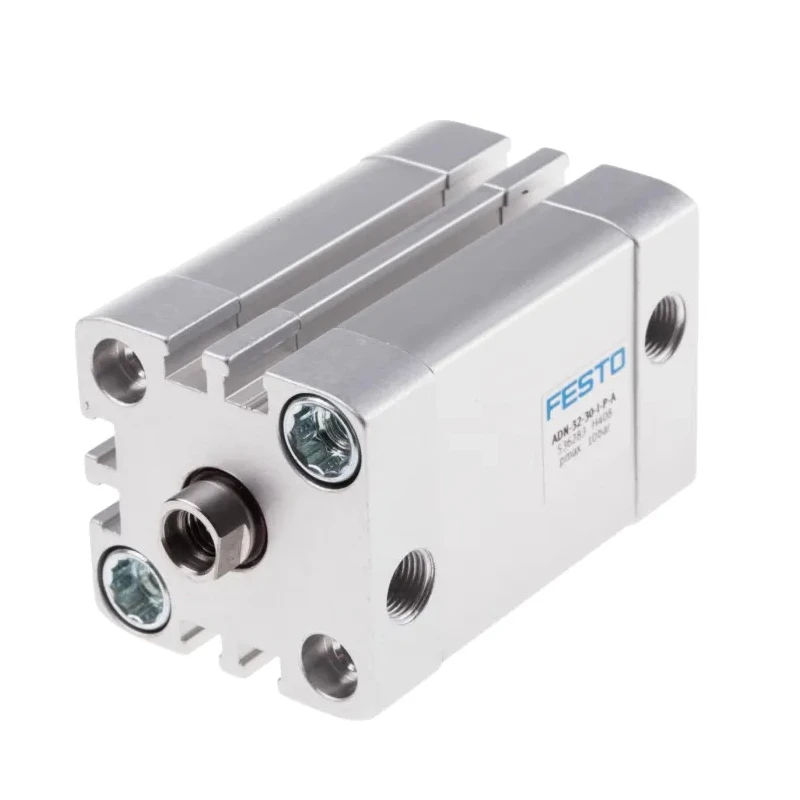

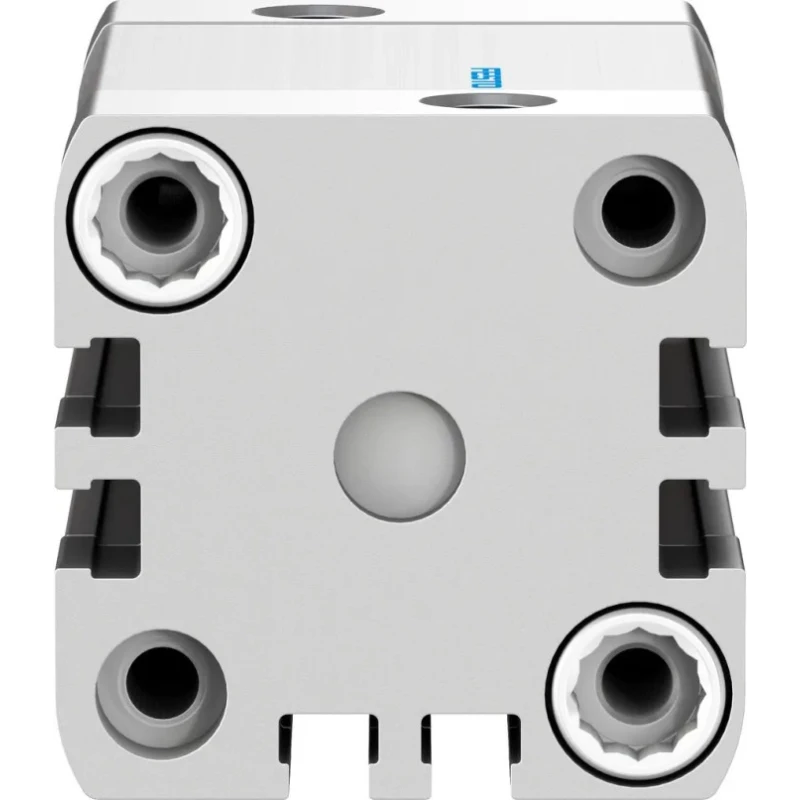

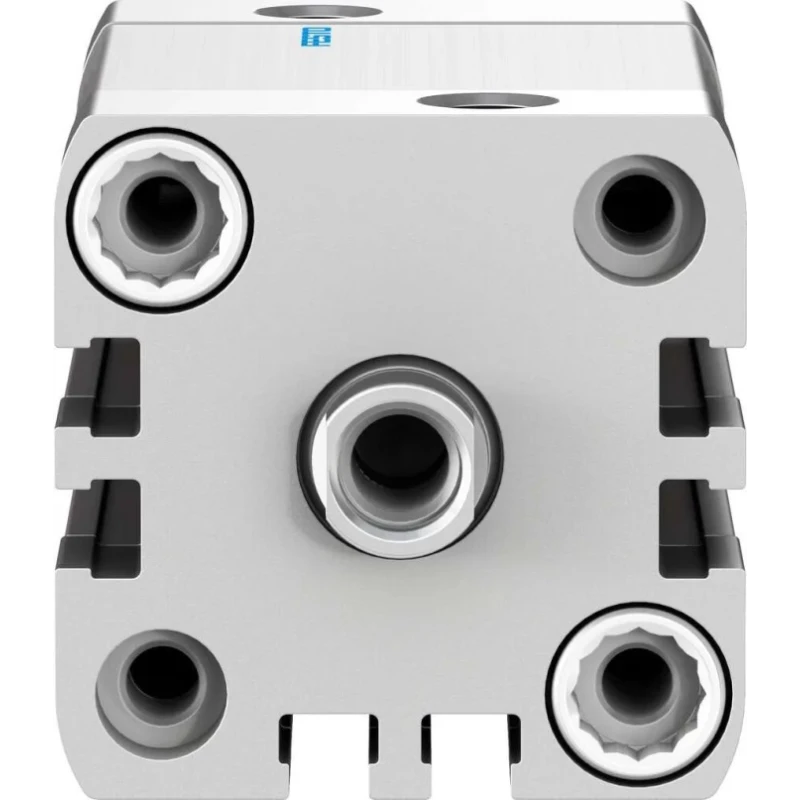

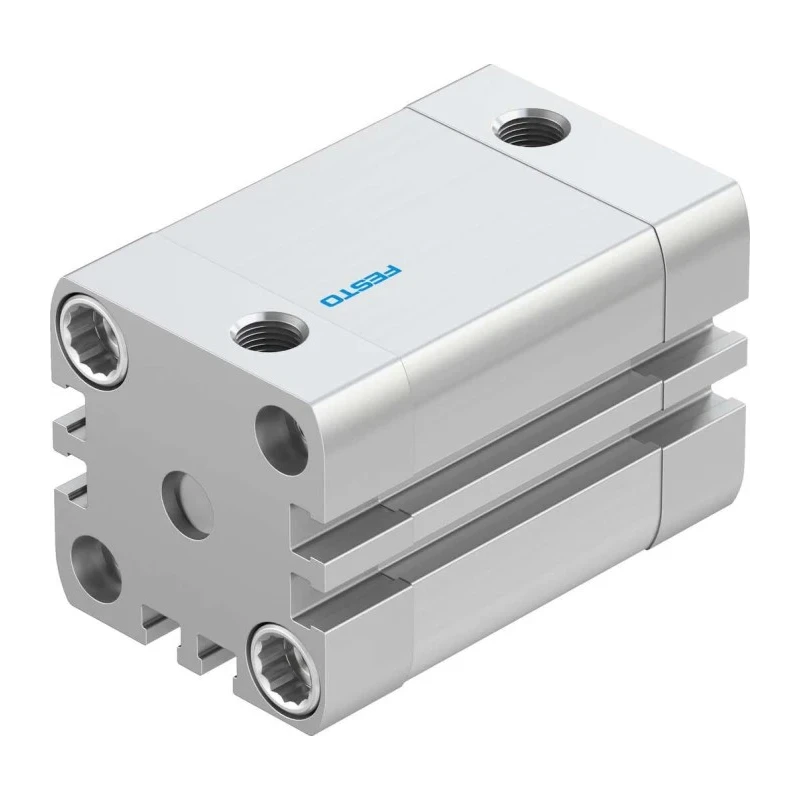

Festo Pneumatic Cylinder ADN Series Double Acting 32 mm Bore 30 mm Stroke Aluminium Body ADN-32-30-I-P-A

Festo ADN-32-30-I-P-A pneumatic cylinder is a compact, double acting actuator designed for precise linear motion with a 30 mm stroke and 32 mm bore diameter. Constructed with a corrosion-resistant aluminium alloy housing, this cylinder features a slim profile measuring 80 mm in length, 47 mm in width, and 47 mm in height, making it suitable for installation in space-constrained industrial environments.

It operates efficiently within a pressure range of 0.6 to 10 bar, delivering forces up to 483 N at 6 bar, ensuring capability to handle demanding mechanical tasks. The double acting design uses compressed air for both extension and retraction, providing smooth and reliable motion control in automated assembly lines, material handling, and packaging applications.

The cylinder includes flexible polymer cushioning rings at the ends that absorb shock and vibration, reducing noise and prolonging service life even in high-speed handling operations. An integrated magnet enables contactless position sensing when combined with compatible proximity sensors, enhancing automation precision.

Its female threaded single piston rod with a 1/8 inch G thread size allows easy integration into existing pneumatic systems. Additionally, the cylinder supports through hole mounting, providing versatile installation options adapted to diverse industrial setups.

Operating temperature ranges from -20°C to 80°C ensure suitability for varied factory conditions. Compliance with ISO 21287 standards and adherence to RoHS requirements underscore its quality and environmental responsibility.

Double acting pneumatic piston rod cylinder with 30 mm stroke for precise linear motion. 32 mm bore diameter ensures robust force output up to 483 N at 6 bar pressure. Constructed with durable corrosion-resistant aluminium alloy body.

Equipped with flexible cushioning rings to minimize noise and vibration during operation. Compact body dimensions of 80 mm length, 47 mm width, and 47 mm height maximize space efficiency. Through hole mount type for versatile installation options.

Integrated magnet for compatibility with proximity sensors enabling automatic position detection. Operates reliably between temperature ranges of -20°C to 80°C. Designed for industrial and automated assembly line applications.

Manufactured in Germany following ISO 21287 standards and RoHS compliance. Explore the range of Festo Pneumatic Cylinders and actuators at EnvMart for reliable solutions in fluid power and industrial automation applications.
