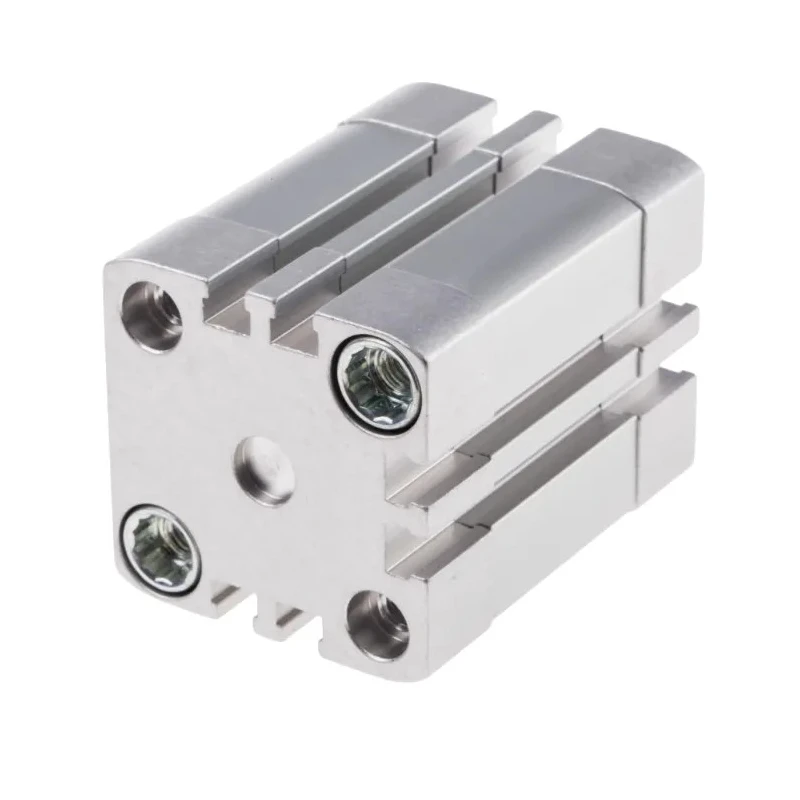

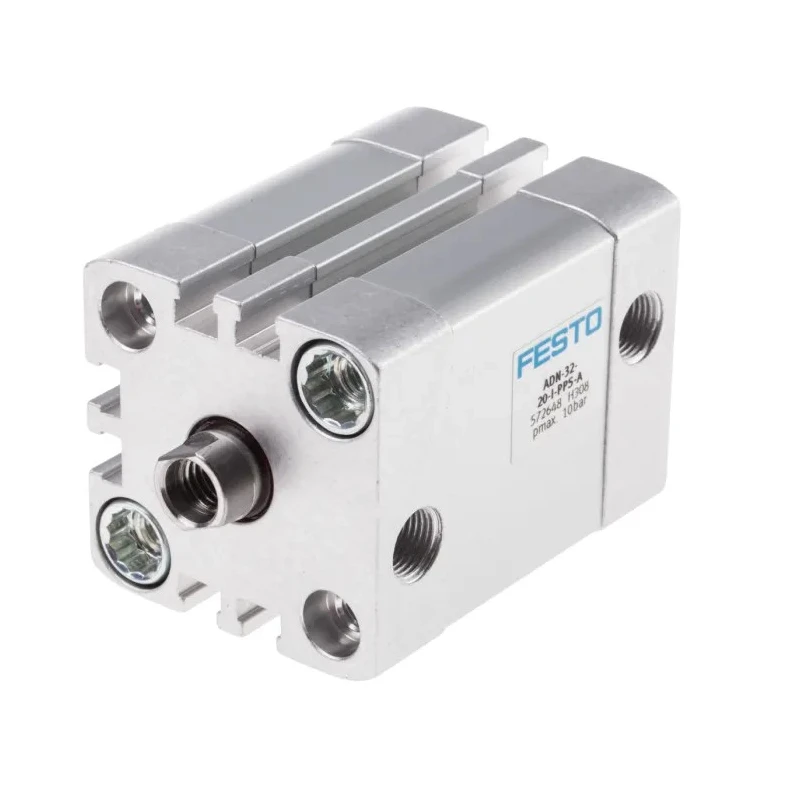

Festo Pneumatic Cylinder ADN Series Double Acting, 32 mm Bore, 20 mm Stroke, Aluminium Body, ISO 21287 ADN-32-20-I-PPS-A

Festo ADN-32-20-I-PPS-A pneumatic cylinder is a compact double acting actuator featuring a 32 mm bore diameter and a 20 mm stroke length. It utilizes an aluminium body construction that provides excellent durability and lightweight performance for various industrial and mechanical applications.

This piston rod cylinder operates by applying air pressure alternately to extend and retract the piston, enabling precise and controlled linear motion. Equipped with self-adjusting air cushioning, the actuator reduces noise and vibration during operation, thereby extending service life and minimizing maintenance requirements.

The cylinder supports a maximum operating pressure of 10 bar and functions efficiently in environments with temperatures ranging from -20°C to 80°C. Its through-hole mount design and ISO 21287 compliance make it well suited for installation flexibility and adherence to industry standards.

The piston rod is of single type with a female thread and 1/8 inch G thread size, providing compatibility with various mechanical linkages. Slots are integrated into the design to allow flush mounting of proximity sensors for contactless position detection, enhancing automation capabilities.

With dimensions of 70 mm in length and 47 mm in height and width, this ADN series cylinder is ideal for installation in confined spaces without sacrificing performance. The cylinder’s double acting mechanism ensures effective and reliable actuation.

Air cushioning enhances operational smoothness and reduces noise levels. Aluminium body guarantees robust construction and corrosion resistance. Suitable for pneumatic automation in industrial manufacturing, laboratory automation, and mechanical assembly.

Compliant with ISO 21287 and RoHS standards for quality assurance. Operating temperature range supports diverse environmental conditions. Proximity sensor slots enable easy integration of position monitoring systems. Compact form factor maximizes usability in limited space applications.

Festo's ADN series pneumatic cylinders are engineered for high productivity and flexibility in pneumatic actuation. This model provides exceptional performance in hydraulic and pneumatic tools, laboratory setups, manufacturing lines, and HVAC systems. Explore more in the Pneumatic Cylinder category at EnvMart for compatible actuators and accessories.
