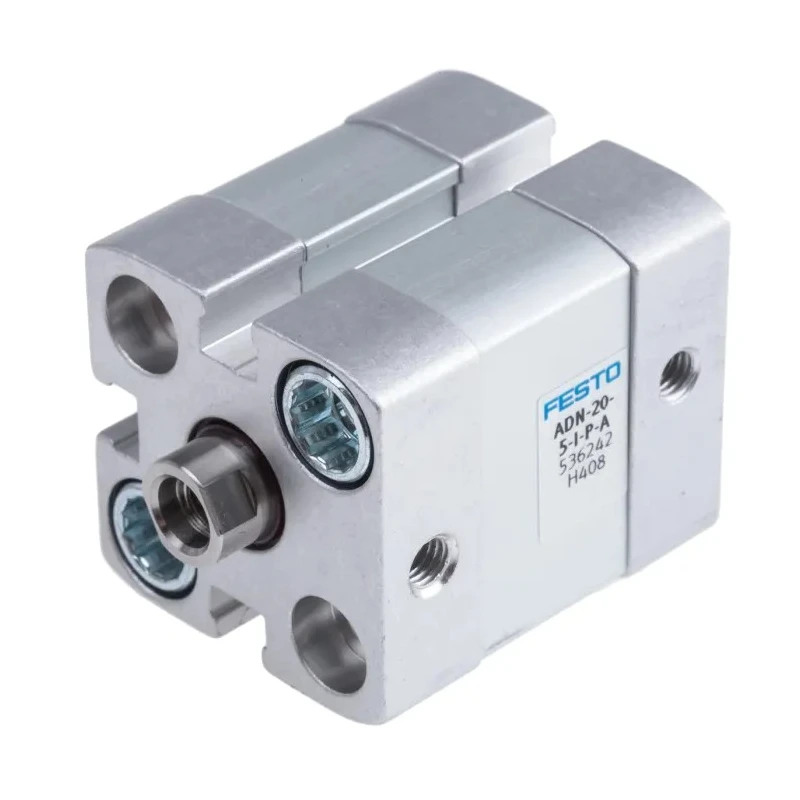

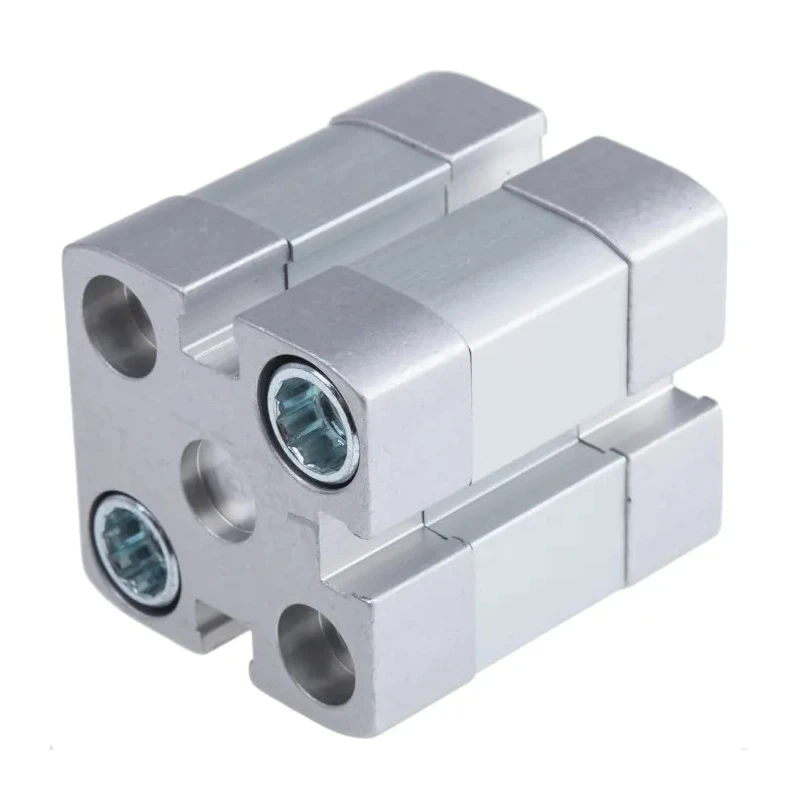

Festo Pneumatic Cylinder ADN-20-5-I-P-A, 20 mm Bore, 5 mm Stroke, Double Acting, Aluminium Body, 10 bar Pressure
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 35.5mm |
| Length | 47.5mm |
| Model | ADN-20-5-I-P-A |
| Width | 35.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 5mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Female |
| Piston Rod Thread Size | M5 |
Key Features
- The cylinder body is made from durable aluminium for lightweight and corrosion resistance.
- It operates at a maximum pressure of 10 bar ensuring robust performance in industrial environments.
- The stroke length of 5 mm allows for precise actuation and positioning.
- Equipped with air cushioning and cushioning rings to reduce noise and vibration during operation.
- Designed with through hole mount for easy and flexible installation.
- Suitable for use in pneumatic piston rod cylinder applications, following ISO 21287 standards.
- Operating temperature range from -20°C to 80°C allows operation in diverse environments.
- Piston rod is single type with female M5 thread size for secure attachment.
Product Description
Festo ADN-20-5-I-P-A Pneumatic Cylinder is a precision double acting pneumatic actuator with a 20 mm bore and 5 mm stroke length, designed for efficient linear motion in confined spaces.
The aluminium body ensures a lightweight but sturdy construction suitable for industrial automation and machinery. Operating at a maximum pressure of 10 bar, it provides reliable force and speed control.
This pneumatic cylinder features air cushioning combined with cushioning rings which effectively reduce noise and vibration, enhancing durability and reducing maintenance costs. The through hole mount type facilitates flexible installation options in both horizontal and vertical orientations, adapting to a variety of applications.
The single piston rod with a female M5 thread allows for easy connection to other machine components. The device operates effectively within a wide temperature range from -20°C up to 80°C, making it ideal for diverse industrial uses including manufacturing, packaging, and material handling.
Certified to meet ISO 21287 standards and RoHS compliance, this pneumatic cylinder ensures high performance and environmentally responsible design. The cylinder complies with ISO 21287 standard. Slots for flush mounting of proximity sensors enhance automation integration.
Low friction design supports continuous operation. Cushioning requires no manual adjustment, saving maintenance time. Aluminium body offers corrosion resistance and light weight. Compact size is suitable for limited spaces.
Double acting action type provides bidirectional movement capability. Through hole mount allows versatile installation options. Designed for industrial pneumatic applications.
This Festo pneumatic cylinder is manufactured in Germany ensuring excellent quality and precision. It is recommended for use in industrial tools, machinery automation, and fluid power systems where precise linear motion is required.
Explore more Pneumatic Cylinders and actuators in the Hydraulic & Pneumatic Tools category at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Festo Pneumatic Cylinder ADN-20-5-I-P-A is 10 bar.
This model has a stroke length of 5 mm, allowing for precise actuation and positioning.
The dimensions of this pneumatic cylinder are 47.5 mm in length, 35.5 mm in height, and 35.5 mm in width.
It features a through hole mount type, which allows for flexible installation options in various orientations.
The bore diameter of the ADN-20-5-I-P-A is 20 mm.
This unit operates effectively within a temperature range of -20°C to 80°C.
It provides double acting action, allowing for bidirectional movement capability.
The cylinder body is made from aluminium, which offers lightweight and corrosion resistance.
It complies with ISO 21287 standards and is RoHS certified, ensuring high performance and environmental responsibility.
This model features air cushioning combined with cushioning rings to reduce noise and vibration during operation.
The piston rod has a female M5 thread size for secure attachment to other components.
This pneumatic cylinder is manufactured in Germany.
