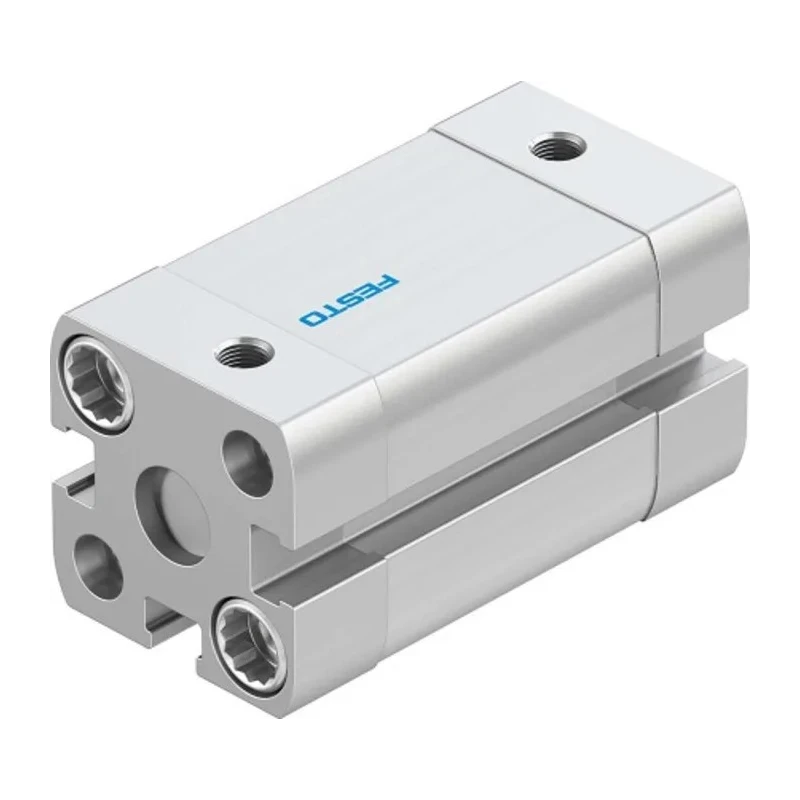

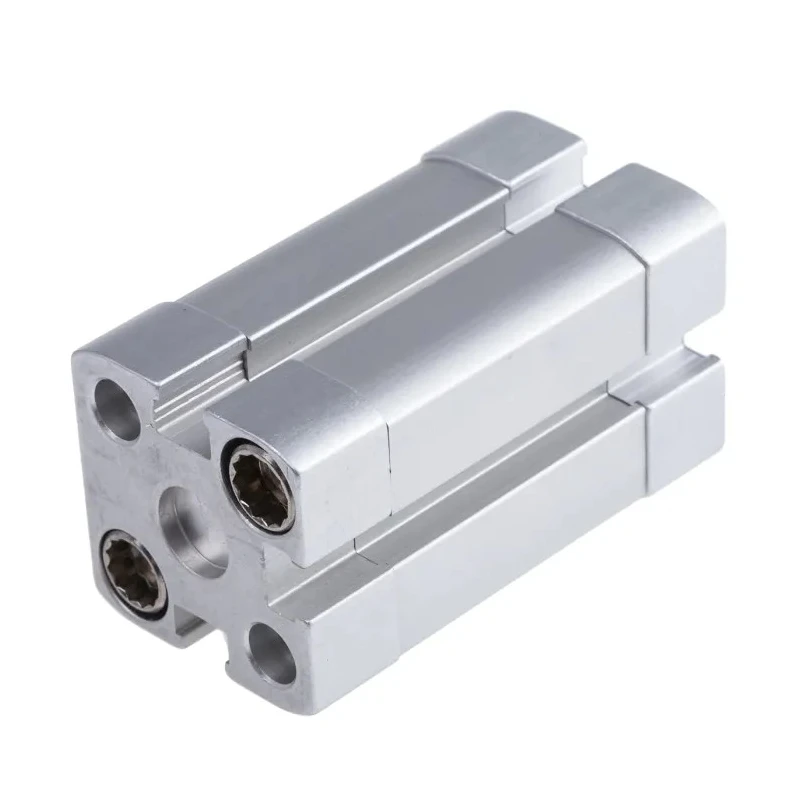

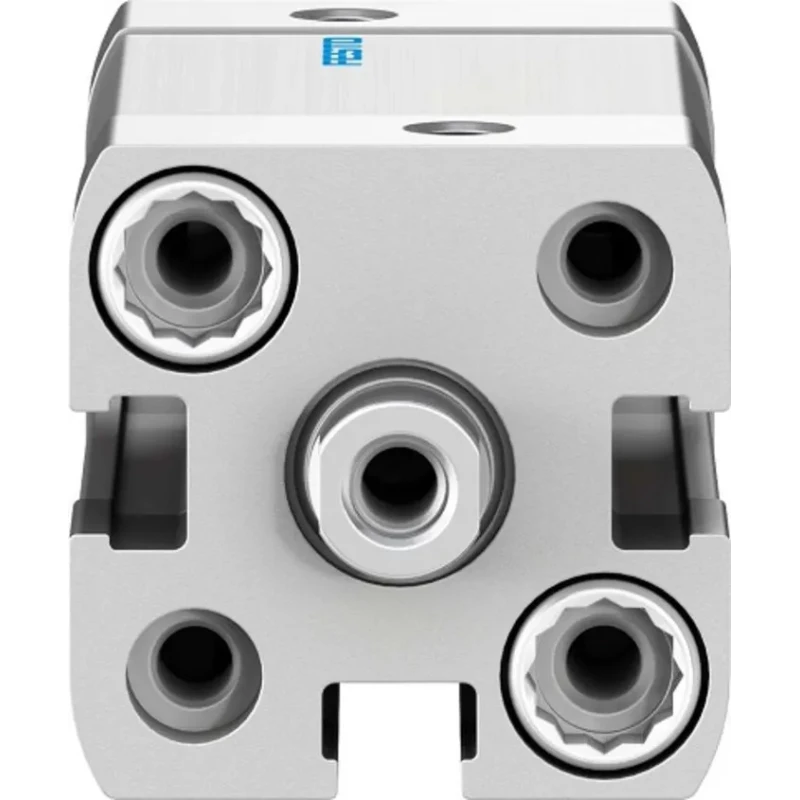

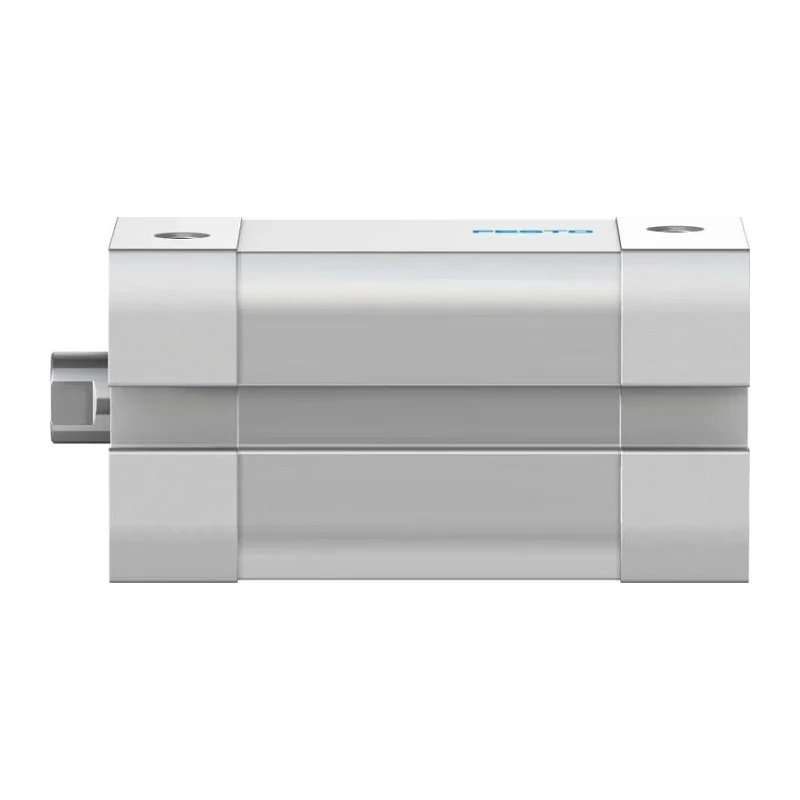

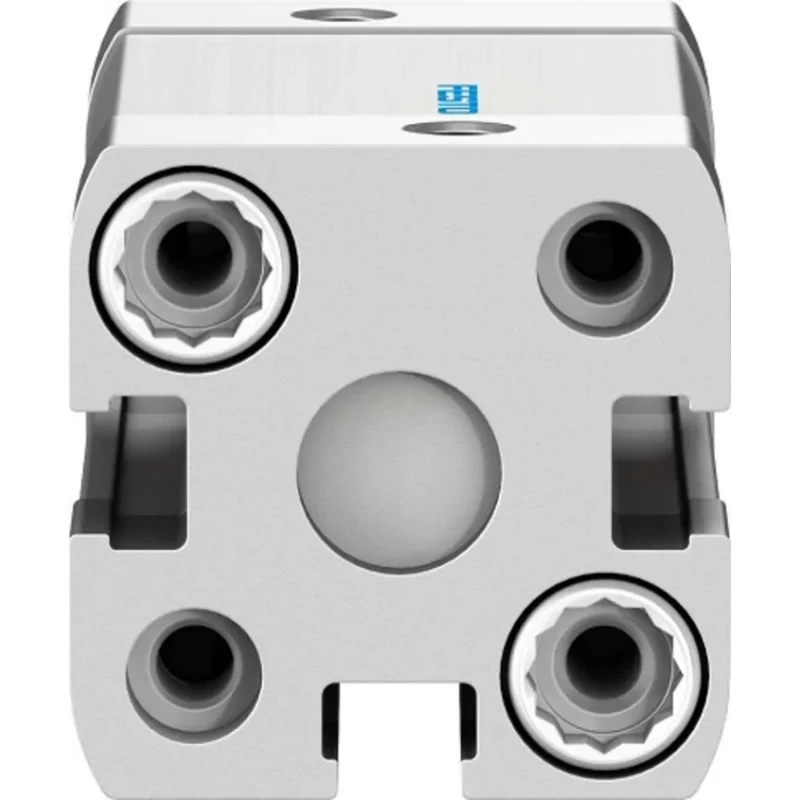

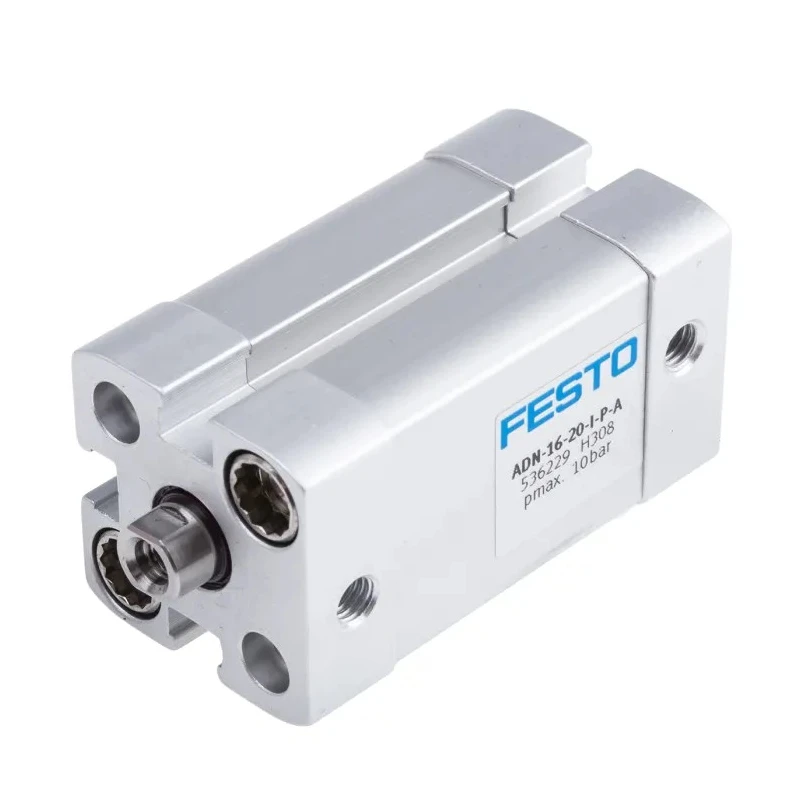

Festo Pneumatic Cylinder Double Acting 16mm Bore 20mm Stroke Through Hole Mount Aluminium Body ADN-16-20-I-P-A

Festo ADN-16-20-I-P-A pneumatic cylinder is a robust and compact double-acting actuator designed for efficient industrial automation and fluid power applications. With a bore diameter of 16mm and 20mm stroke length, it provides reliable linear motion in both extension and retraction, making it suitable for a wide range of manufacturing, material handling, and transportation systems requiring precise control.

The pneumatic cylinder features a lightweight anodised aluminium body measuring 29mm by 29mm in width and height, and 59.7mm in length, which offers excellent resistance to impact damage and corrosion even in demanding environments. The elastic cushioning on both cylinder ends significantly reduces noise and vibration, ensuring smooth and quiet operation during repeated cycles.

Installation is made simple with the through hole mount design and an M5 threaded port, which allows for quick and secure integration into automated setups. The unit supports a broad operating temperature range from -20°C up to +80°C, and can handle maximum pressures up to 10 bar, making it adaptable to light and heavy-duty pneumatic systems.

Additional advantages include compatibility with proximity sensors, enabling seamless automation feedback for precise control and monitoring. The cylinder’s TPE seals prevent air leakages and contamination ingress, thereby extending equipment lifespan and maintaining optimal performance throughout its service life.

Double acting pneumatic cylinder delivers linear motion in both directions. 16mm bore diameter and 20mm stroke length for compact, precise actuation. Durable anodised aluminium body resists impact and corrosion. Through hole mount and M5 threaded port enable easy installation.

Elastic cushioning reduces noise and vibration for smooth operation. Operates reliably between -20°C and +80°C environmental temperatures. Supports maximum operating pressure up to 10 bar for versatile pneumatic applications.

Compatible with proximity sensors for automated system integration.

This Pneumatic Cylinder is ideal for industrial, manufacturing, pharmaceutical production, transportation, and material handling applications. Its space-efficient design fits well into compact mechanical assemblies while delivering dependable performance. Choose this Festo ADN series cylinder for precision pneumatic actuation solutions.
