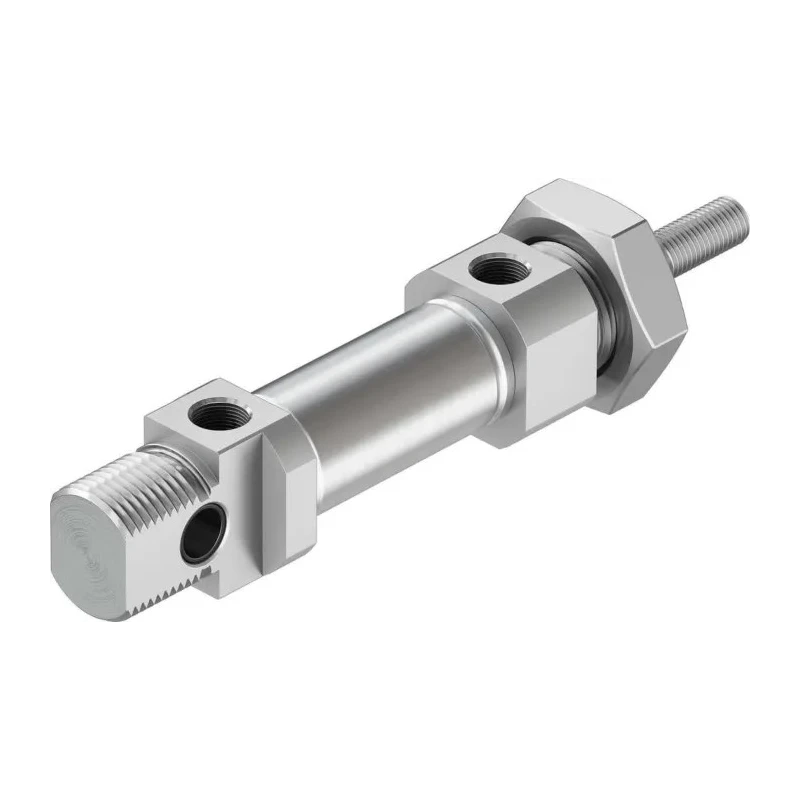

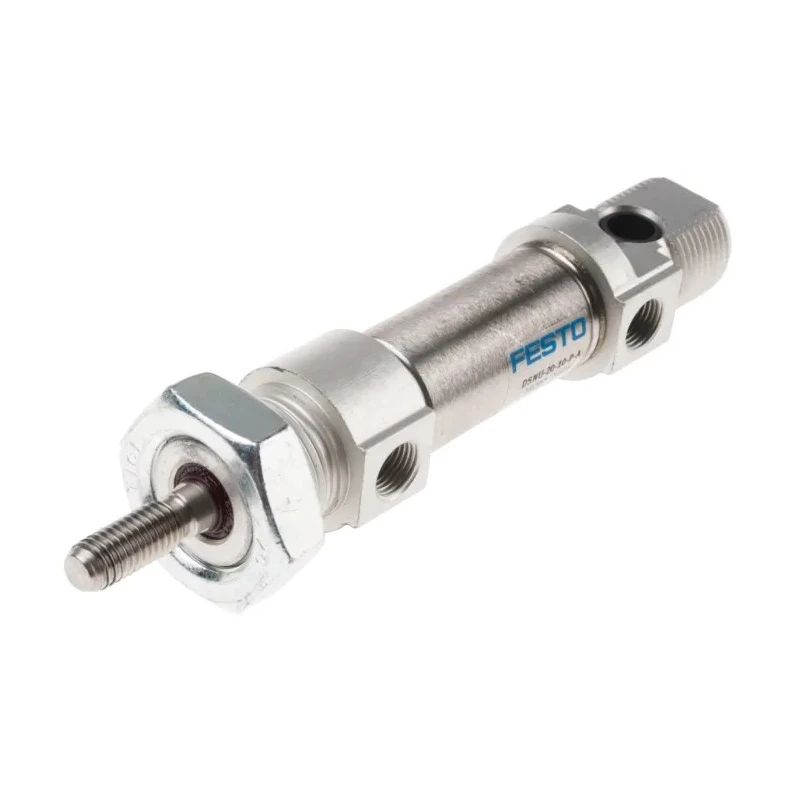

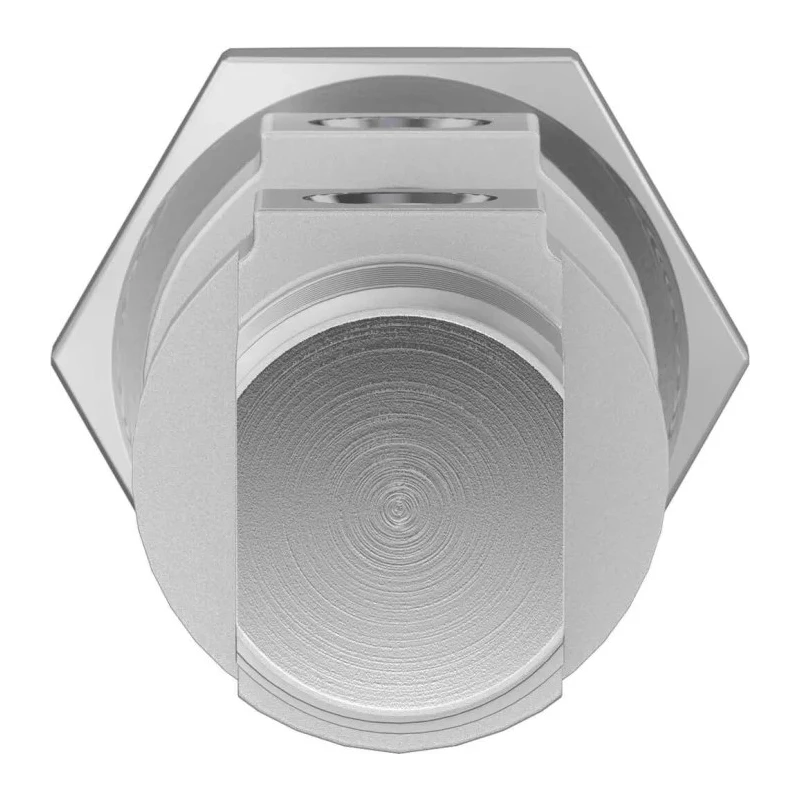

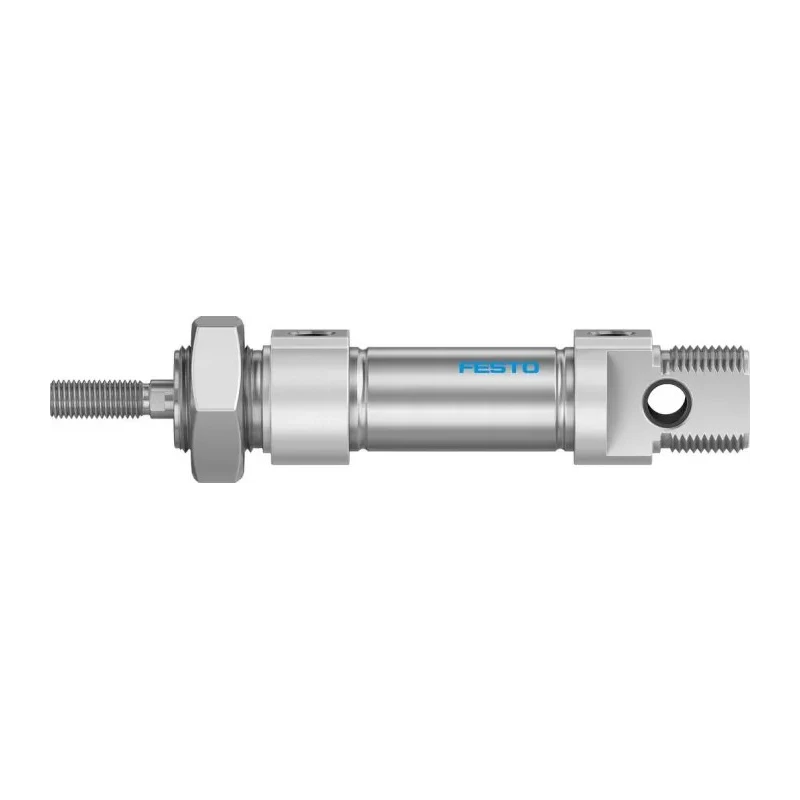

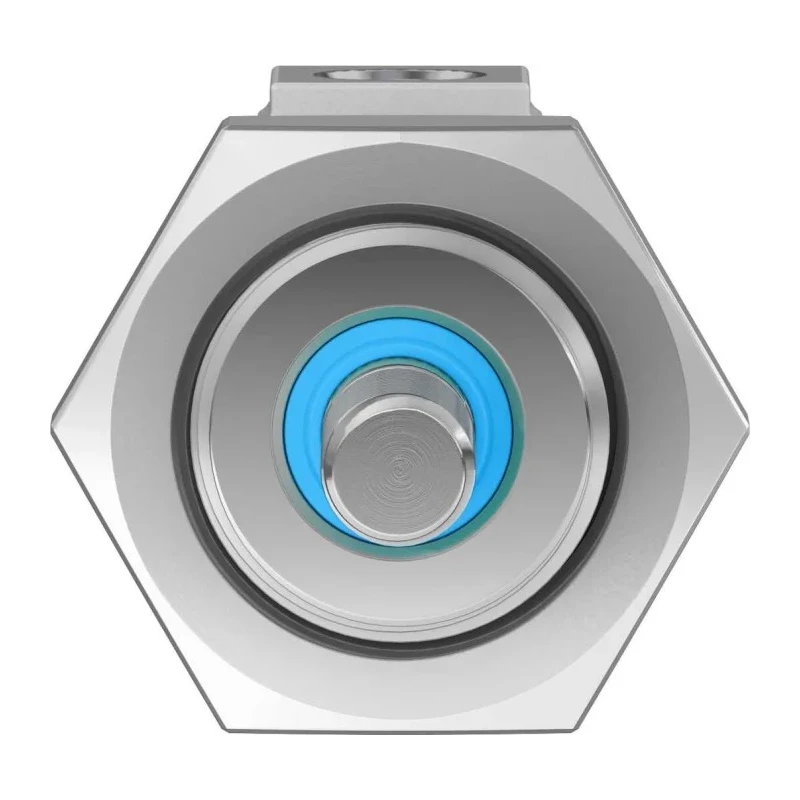

Festo Pneumatic Piston Rod Cylinder DSNU Series Double-Acting 10 mm Stroke, 142 mm Length, 1-10 Bar Pressure DSNU-20-10-P-A

Festo DSNU-20-10-P-A pneumatic piston rod cylinder is a precision double-acting cylinder designed for industrial automation requiring short stroke linear motion with high reliability. With a compact length of 142 mm and a 10 mm stroke, it offers space-saving performance ideal for limited installation areas. This unit operates over a versatile pressure range of 1 to 10 bar, making it adaptable for various pneumatic systems.

The cylinder features elastomer cushioning that provides flexible shock absorption at both ends, enhancing durability and smoothness during operation. Its G1/8 port connection ensures broad compatibility with standard pneumatic fittings. The robust stainless steel piston rod exhibits resistance to corrosion, enabling reliable use even in humid or moisture-prone environments.

The DSNU series cylinders conform to international standards such as ISO 6432 and Germanischer Lloyd, while also meeting CE requirements including the EU Explosion Protection Directive (ATEX II 2GD), certifying safety in potentially explosive atmospheres. The maximum operating temperature is rated at 80°C, allowing use in a range of industrial conditions.

Compact 142 mm length suitable for constrained spaces. 10 mm stroke for precise positioning and clamping tasks. Double-acting mechanism provides efficient thrust and retraction via compressed air. Elastomer cushioning absorbs energy directly through integrated cushioning rings.

G1/8 port connection offers wide compatibility. Wide operating pressure range from 1 to 10 bar. Rust-resistant stainless steel piston rod ideal for humid conditions. Complies with ISO 6432, Germanischer Lloyd, ISO 228-1, and ATEX certifications.

Maximum operating temperature of 80°C supports tough environments.

This pneumatic cylinder is widely used in factory automation, automotive manufacturing, medical imaging systems, and aerospace industry applications where precise, reliable short movement is essential. Festo DSNU series offers long service life and flexible mounting options including rear, swivel, flange, direct, front, and foot mounts.
