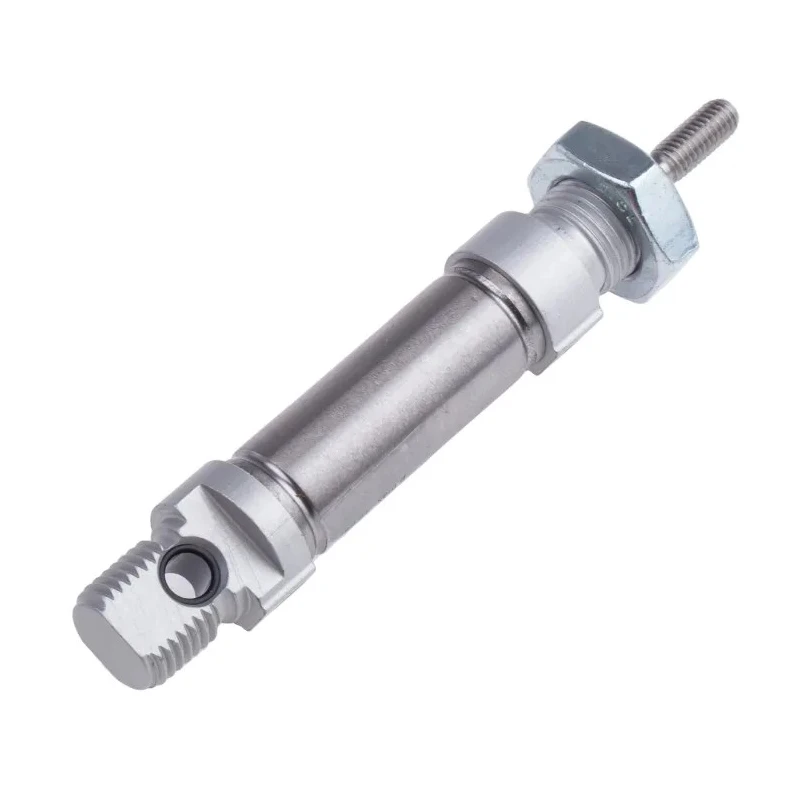

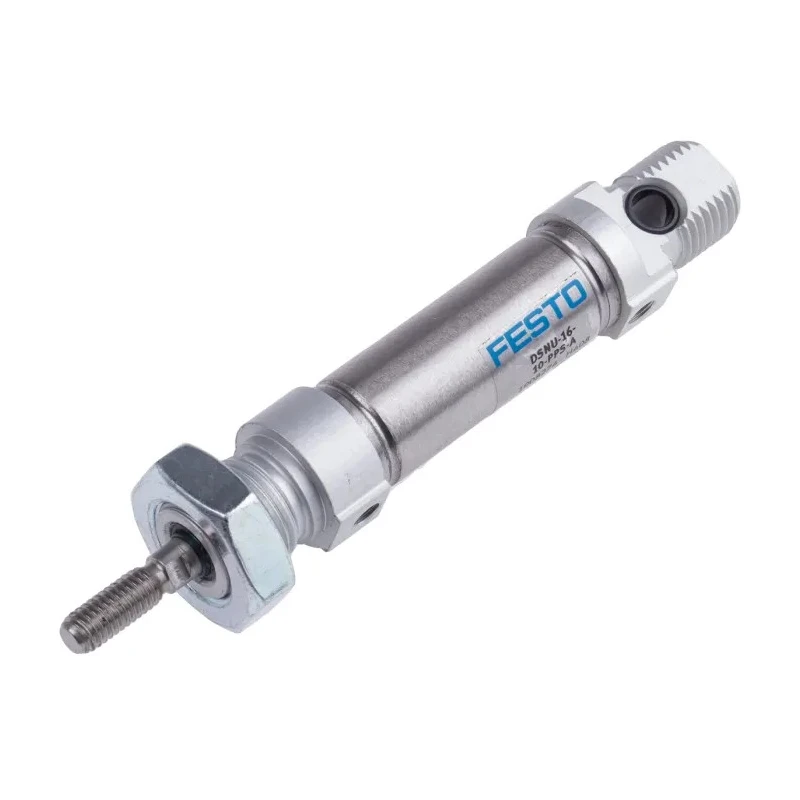

Festo Pneumatic Piston Rod Cylinder Swivel Foot Front Rear Flange Direct Mount 16 mm Bore 10 mm Stroke DSNU-16-10-PPS-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Length | 121mm |
| Model | DSNU-16-10-PPS-A |
| Mount Type | Swivel, Foot, Front, Rear, Flange, Direct |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 10mm |
| Standards/Approvals | ISO 6432, II 2D, CE marking to EU Explosion Protection Directive (ATEX), ATEXII 2G, Germanischer Lloyd |
| Cushioning Type | Air |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Festo 10 mm Pneumatic Cylinder - 1908266 DSNU Series, Double Acting ActingBrand | Festo |
Key Features
- Constructed with stainless steel piston rod and metric-threaded male piston rod.
- Conforms to ISO 6432 standards for metric mounting dimensions.
- Air cushioning type provides gentle and dynamic travel into end positions.
- Suitable for multiple mount types including swivel, foot, flange, front, rear, and direct.
- Maximum operating temperature of 80 degrees Celsius ensures reliable performance in industrial environments.
- Double acting operation for versatile piston rod actuation.
- Equipped with dual connection ports for compressed air advance and retract functionality.
- Designed for long service life and excellent running performance in pneumatic applications.
Product Description
Festo DSNU-16-10-PPS-A pneumatic piston rod cylinder is a precision-engineered actuator designed for industrial pneumatic systems requiring a 16 mm bore and a stroke length of 10 mm. The cylinder features a stainless steel piston rod with metric male thread and self adjusting pneumatic cushioning at both ends, providing smooth and dynamic cushioning performance without manual adjustment. This self adjusting cushioning protects the cylinder and connected components by controlling air venting during end-of-stroke travel, thereby reducing installation and maintenance time.
The DSNU series conforms to ISO 6432 standards, allowing installation in various orientations and compatibility with standardised metric mounting accessories such as swivel brackets, foot mounts, and flange attachments. Its double acting operation enables effective linear motion in both advance and retract directions through dual compressed air ports.
Designed and manufactured in Germany, the cylinder operates reliably within temperatures up to 80°C and complies with ISO 6432, ATEX standards including the EU Explosion Protection Directive, and Germanischer Lloyd approvals. These certifications ensure suitability for use in hazardous industrial environments requiring explosion protection.
The cylinder is well suited for use in industrial automation, manufacturing machinery, fluid power systems, HVAC controls, and laboratory pneumatic applications. Its durable construction and long-service life make it an ideal choice for demanding pneumatic actuator requirements in various industrial sectors.
Stainless steel piston rod with metric male thread ensures durability and standard connectivity. Self adjusting pneumatic cushioning provides maintenance-free gentle cushioning at stroke ends. Compliant with ISO 6432 metric mounting standards for flexible installation.
Multiple mount types supported including swivel, foot, front, rear, flange, and direct. Double acting design with dual ports for seamless piston rod advancement and retraction. Maximum operating temperature of 80°C for diverse industrial conditions.
Certified to ATEX and Germanischer Lloyd for use in explosion risk zones. Manufactured in Germany assuring quality and reliability.
This Festo DSNU-16-10-PPS-A pneumatic piston rod cylinder combines robust construction with standardized mounting and self adjusting cushioning, enabling efficient automation solutions in industrial, construction, manufacturing, and fluid power applications. Explore the broad EnvMart selection of Pneumatic Cylinders and actuators for integrated system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore size of this model is 16 mm.
The stroke length of the DSNU-16-10-PPS-A is 10 mm.
It supports multiple mounting types including swivel, foot, front, rear, flange, and direct mounts.
The maximum operating temperature is 80°C.
It conforms to ISO 6432 standards and is certified to ATEX and Germanischer Lloyd for explosion protection.
This model features self-adjusting pneumatic cushioning for smooth operation at stroke ends.
The piston rod is male with a metric thread standard.
It operates with a double acting mechanism, allowing for advancement and retraction through dual compressed air ports.
The length of this pneumatic cylinder is 121 mm.
This model is manufactured in Germany.
It is suitable for industrial automation, manufacturing machinery, fluid power systems, HVAC controls, and laboratory pneumatic applications.
It has approvals for use in hazardous environments including ATEX II 2D and CE marking to the EU Explosion Protection Directive.
