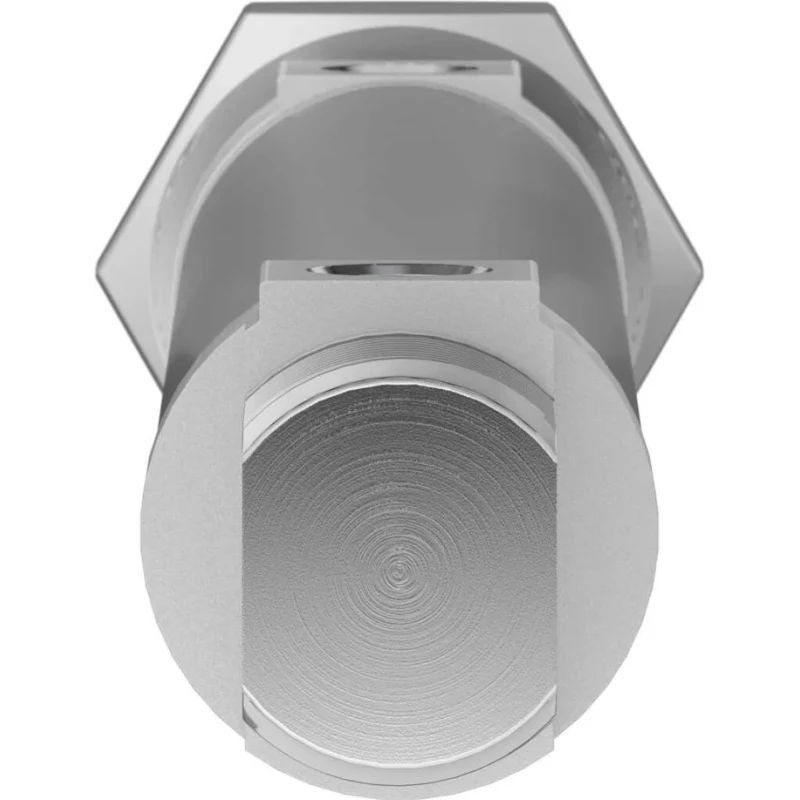

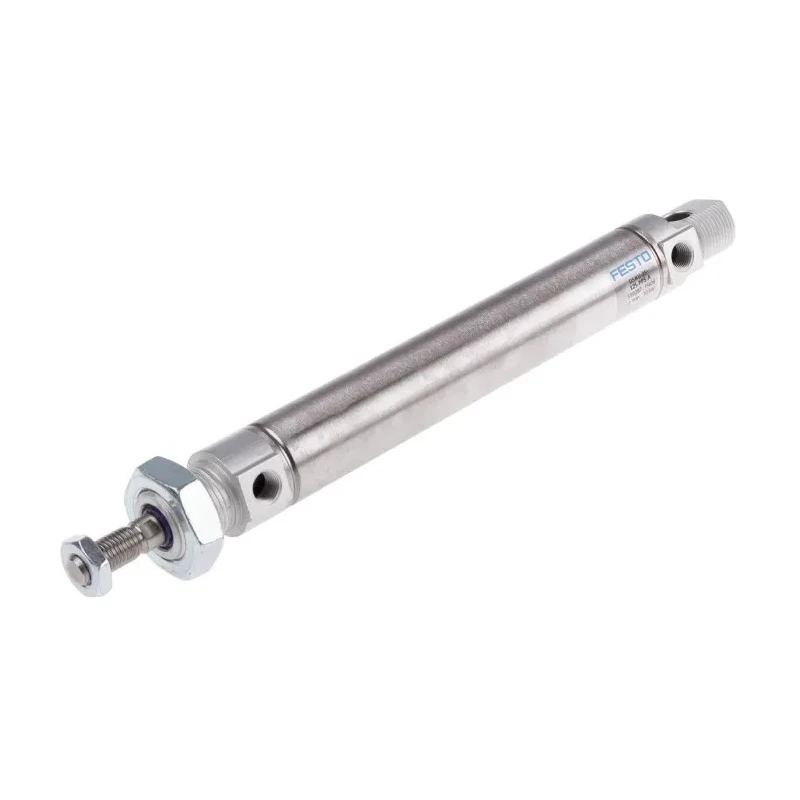

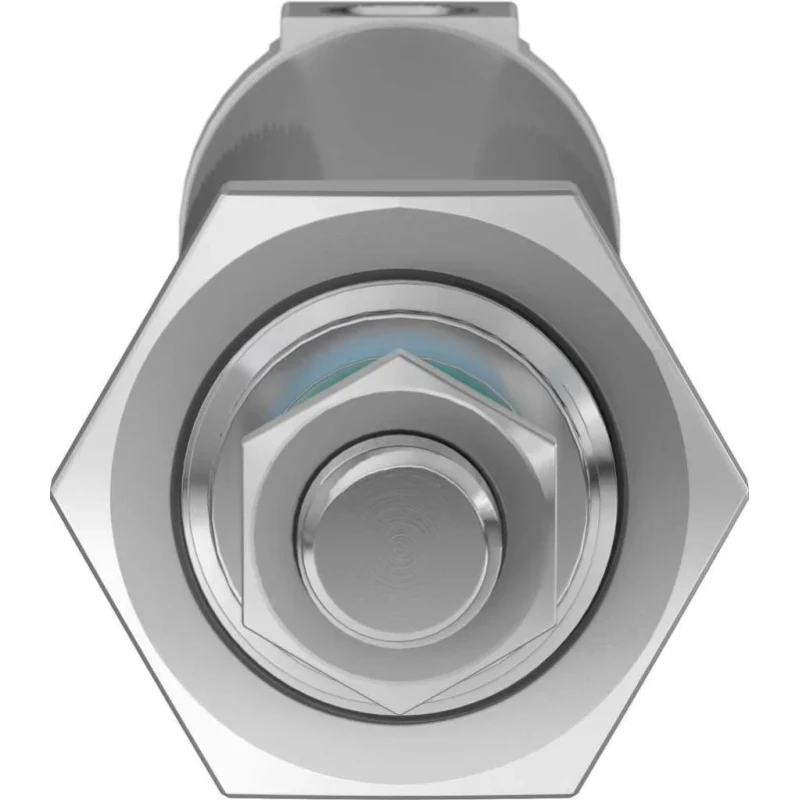

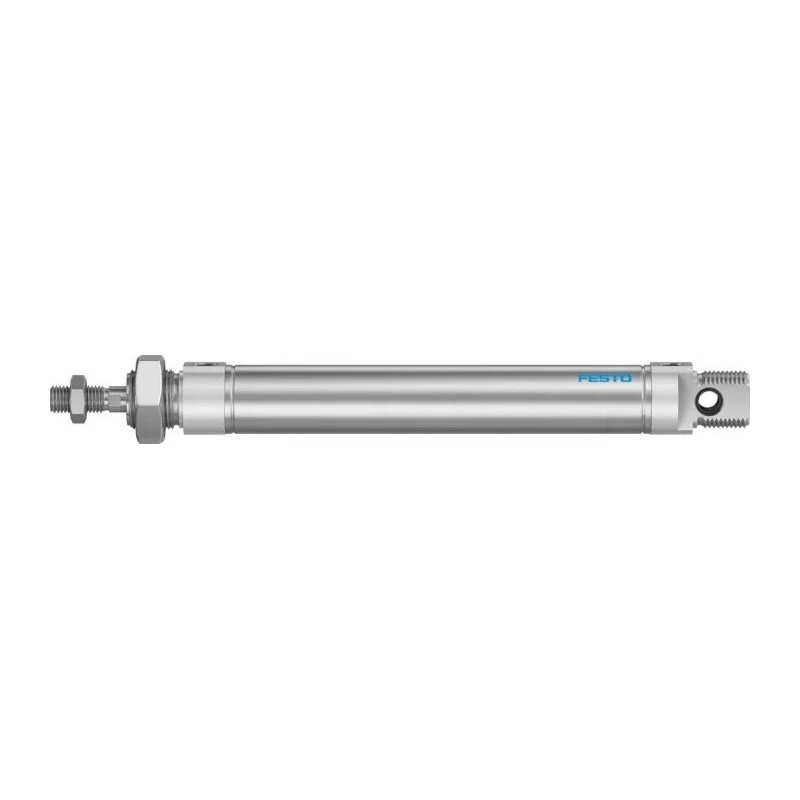

Festo Pneumatic Cylinder 25 mm Bore 125 mm Stroke Double Acting ISO 6432 with Self-Adjusting Pneumatic DSNU-25-125-PPS-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Polyamide, High Alloy Stainless Steel, Wrought Aluminium Alloy, Anodised Aluminium |
| Length | 266.5mm |
| Model | DSNU-25-125-PPS-A |
| Mount Type | Flange, Swivel, Rear, Foot, Direct, Front |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 125mm |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| • The design structure of the cylinder is | Piston, piston rod and cylinder barrel |
| • PPS | Self-adjusting pneumatic end-position cushioning |
| • Forms part of Festo's core product range, Festo Part Number | 559287 |
| Festo 125 mm Pneumatic Cylinder - 19249 DSNU SeriesBrand | Festo |
Key Features
- The cylinder operates in a double acting mode for versatile automation applications.
- Constructed with high alloy stainless steel piston rod and anodised aluminium barrel ensuring corrosion resistance.
- Includes a male threaded piston rod (M10 x 1.25) and metric thread standards.
- Designed for mounting flexibility with flange, swivel, rear, foot, direct, and front options.
- Maximum operating temperature of 80°C suitable for industrial environments.
- Meets international standards including ISO 6432, CE marking, ATEX II 2G, and Germanischer Lloyd certification.
- Self-adjusting pneumatic cushioning eliminates manual adjustment requirements, reducing setup time.
- Compact length of 266.5 mm enhances installation in confined spaces.
Product Description
Festo DSNU-25-125-PPS-A pneumatic cylinder is a high quality ISO standard cylinder featuring a 25 mm bore diameter and 125 mm stroke length. Engineered for double acting operation, it provides precise linear motion through dual air ports for advancing and retracting the piston rod. The cylinder incorporates self-adjusting pneumatic end-position cushioning (PPS) offering smooth and dynamic travel without the need for manual adjustments, making it suitable for rapidly changing load and speed requirements.
Constructed from a combination of polyamide, high alloy stainless steel, and anodised aluminium, this robust pneumatic cylinder ensures excellent corrosion resistance and long service life. Its piston rod sports a male M10x1.25 metric thread simplifying installations. The cylinder length measures 266.5 mm, optimized for tight spaces in industrial automation systems.
Mounting versatility is ensured with multiple options including flange, swivel, rear, foot, direct, and front types, compliant with ISO 6432 dimensions. It operates reliably up to a maximum temperature of 80°C, validated by certifications such as CE marking, ATEX II 2G, and Germanischer Lloyd, confirming suitability for demanding industrial environments.
This cylinder is ideal for use in diverse industrial, manufacturing, pneumatic automation, and fluid power applications. The intricate self-adjusting cushioning system reduces setup time and enhances performance stability under variable operating conditions. The product is made in Germany, reflecting premium engineering and quality assurance.
The cylinder operates in a double acting mode providing reliable linear motion. Self-adjusting pneumatic cushioning provides gentle end-positioning without manual setting. The piston rod and cylinder barrel are manufactured from corrosion-resistant high alloy stainless steel and anodised aluminium.
Multiple mounting types offer flexibility in application installation. Complies with key international standards for safety and quality assurance. Compact overall length ensures suitability for confined installation environments.
G1/8 pneumatic connection supports easy compressed air integration. Maximum operating temperature of 80°C enables usage in heated industrial settings. Robust design ensures long service life under continuous industrial operation.
Manufactured in Germany for superior build quality and reliability. Explore more Pneumatic Cylinders and actuators in the Festo range at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 125 mm.
This unit has a maximum operating temperature of 80°C.
The cylinder is constructed from polyamide, high alloy stainless steel, and anodised aluminium, ensuring corrosion resistance.
It features self-adjusting pneumatic end-position cushioning (PPS), which eliminates the need for manual adjustments.
This model offers multiple mounting options including flange, swivel, rear, foot, direct, and front types.
The bore diameter of this pneumatic cylinder is 25 mm.
The piston rod has a male thread with a metric standard of M10 x 1.25.
The overall length of the cylinder is 266.5 mm.
Yes, it meets international standards including ISO 6432, CE marking, ATEX II 2G, and Germanischer Lloyd certification.
This cylinder is suitable for diverse industrial, manufacturing, pneumatic automation, and fluid power applications.
It supports a G1/8 pneumatic connection for easy integration with compressed air systems.
This model is manufactured in Germany, reflecting its quality assurance and engineering standards.
