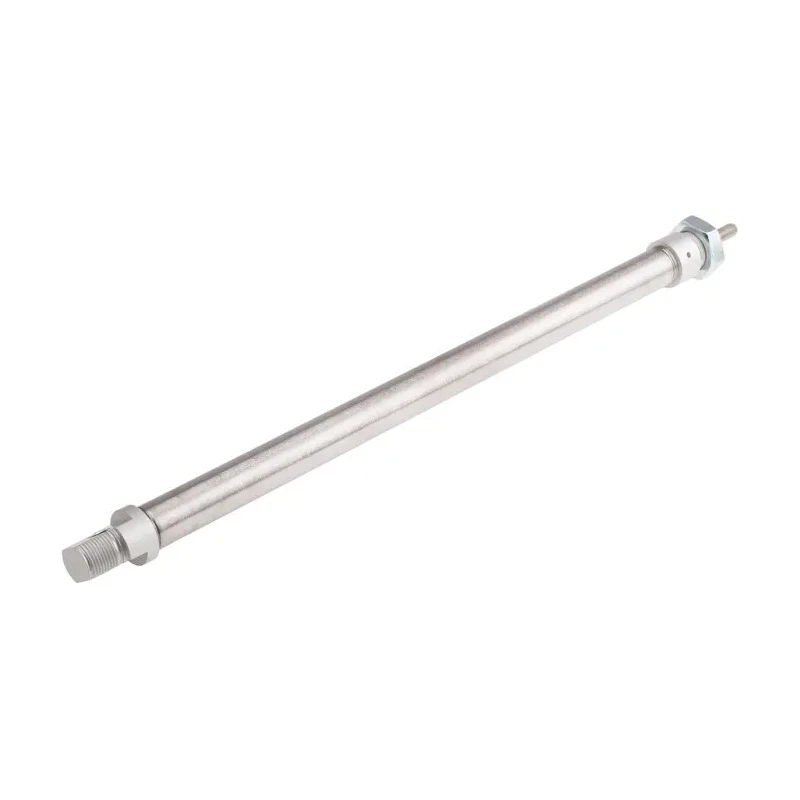

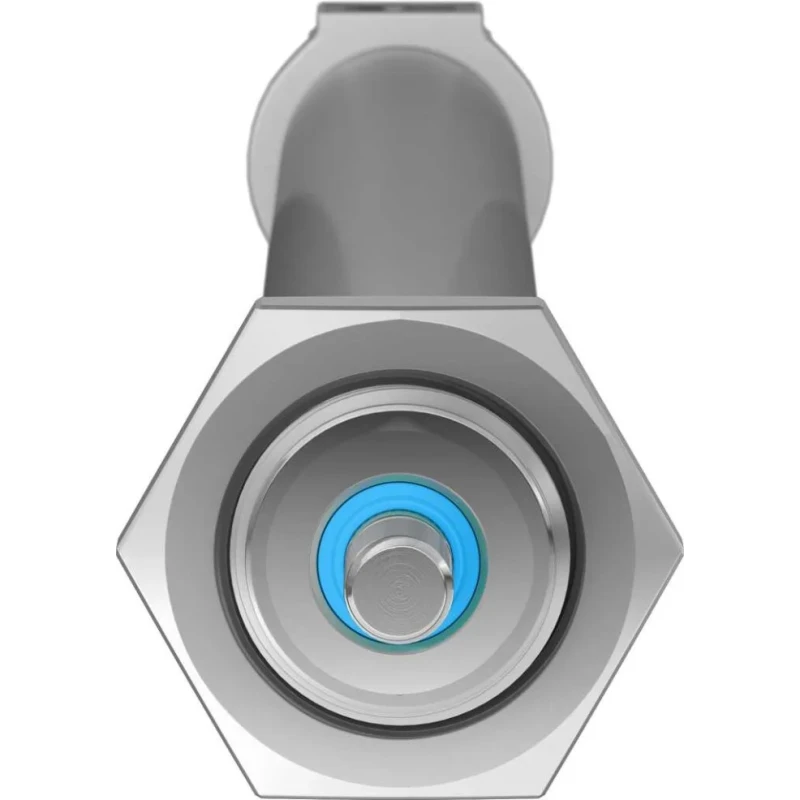

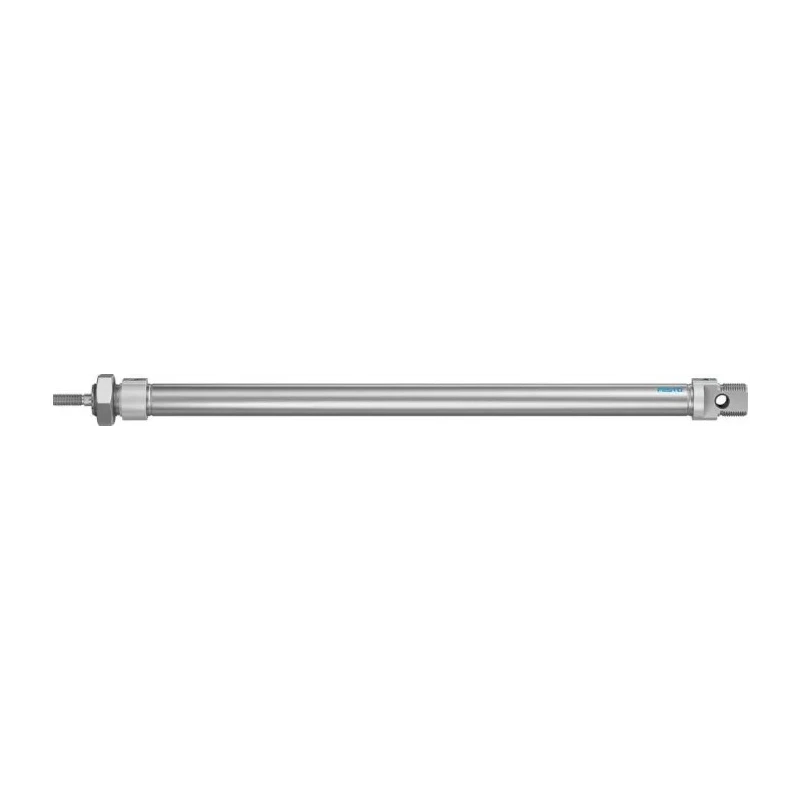

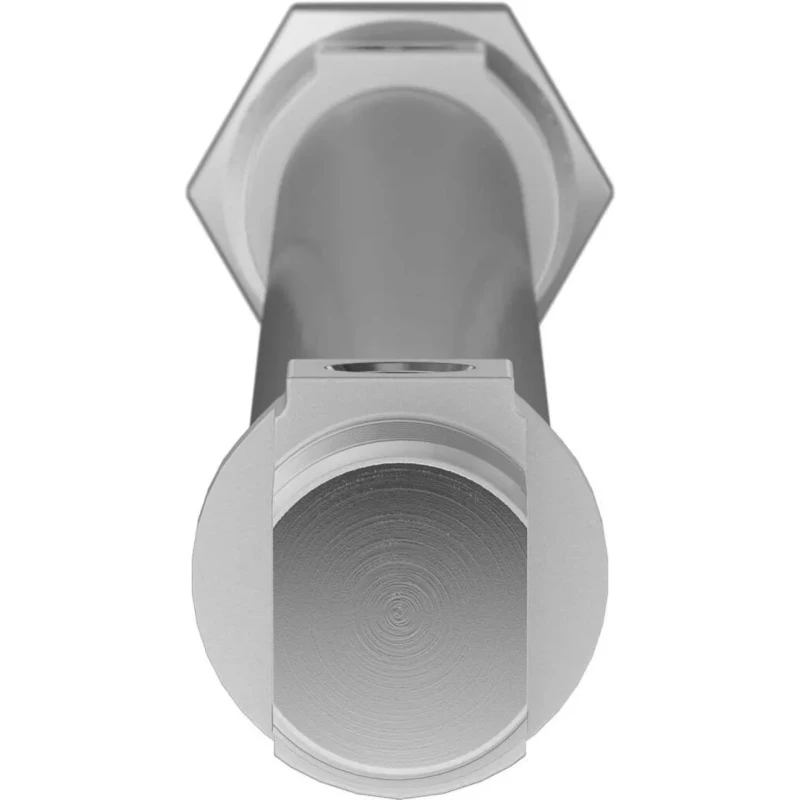

Festo Pneumatic Cylinder 20 mm Bore, 320 mm Stroke, Double Acting, Air Cushion, Aluminium Body DSNU-20-320-PPS-A

Festo DSNU-20-320-PPS-A pneumatic cylinder features a 20 mm piston diameter and 320 mm stroke length, designed for double acting pneumatic actuation with integrated self-adjusting pneumatic cushioning. The cylinder body is made from durable aluminium, while the piston rod and barrel are constructed from high alloy steel for enhanced corrosion resistance and long service life. It complies with ISO 6432 and CETOP RP 52 P standards and supports a maximum operating temperature of 80°C.

This cylinder operates in double acting mode, providing linear motion by applying compressed air alternately to both sides of the piston. The self-adjusting cushioning system eliminates the need for manual adjustments by controlling the air venting dynamically, which ensures smooth and gentle piston travel even under varying load and speed conditions, reducing assembly and setup time.

Equipped with a single rod with male thread and an M8 piston rod thread size coupled with a G1/8 pneumatic connection, this cylinder can be mounted in any orientation, allowing flexible installation in various industrial automation systems, fluid power applications, laboratory equipment, and manufacturing machines.

Double acting operation with 20 mm bore and 320 mm stroke. Body made of aluminium; piston rod is stainless steel for corrosion resistance. Features self-adjusting pneumatic end-position cushioning (PPS type). Complies with ISO 6432 standard and CETOP RP 52 P.

Max operating temperature of 80°C suitable for industrial environments. Single rod type with M8 thread and male piston rod end. G1/8 pneumatic connection port for easy accessory mounting. Supports installation in any position for versatile usage.

These pneumatic cylinders from Festo represent a core product line, enabling reliable, durable, and maintenance-friendly pneumatic actuation solutions suitable for industrial tools, fluid power systems, laboratory devices, and automation projects. Accessories for mounting and connection further increase adaptation flexibility according to specific application needs.
