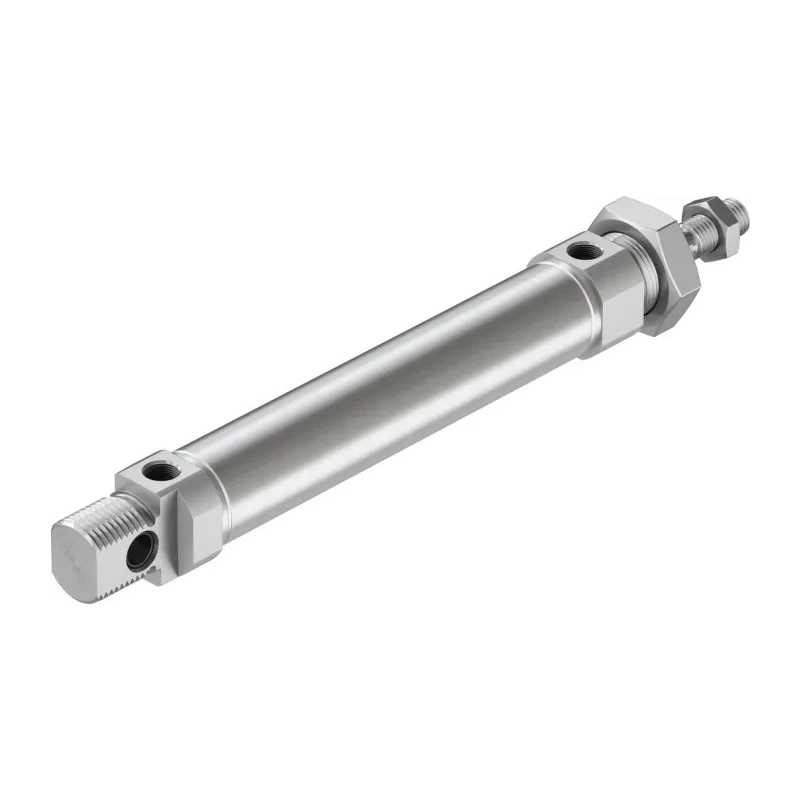

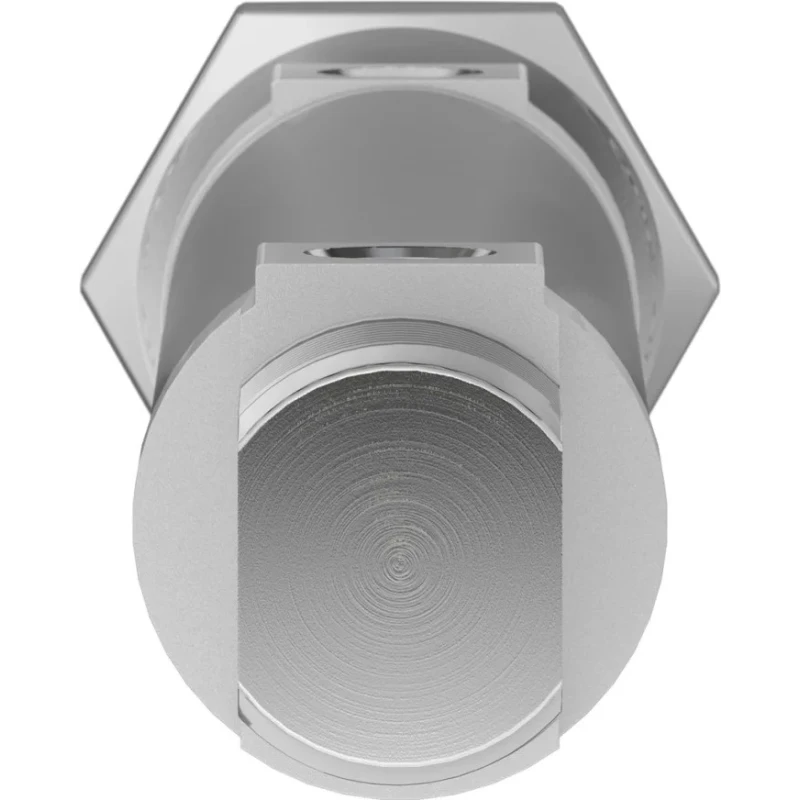

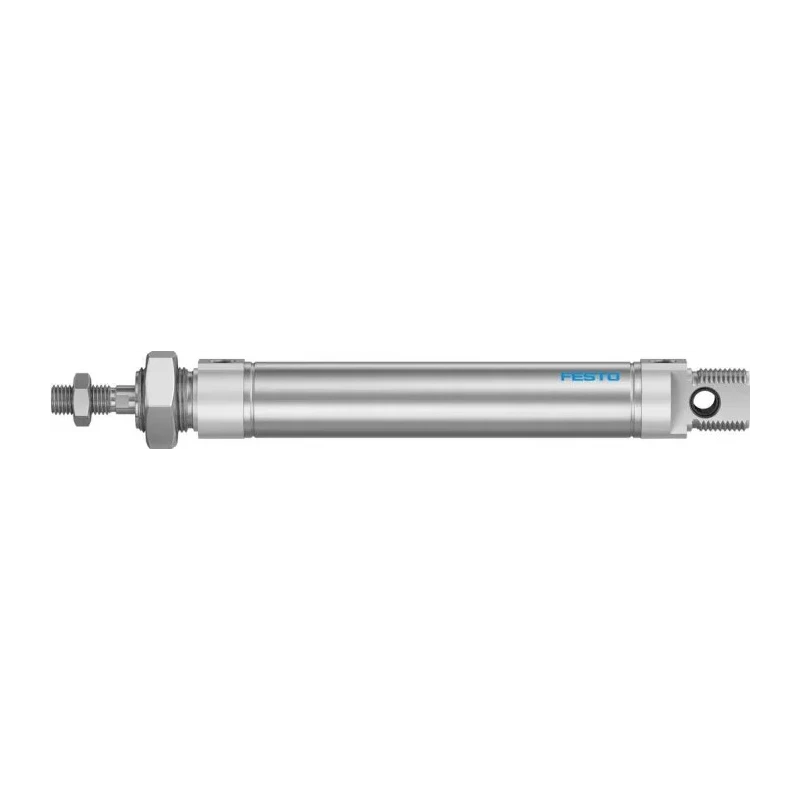

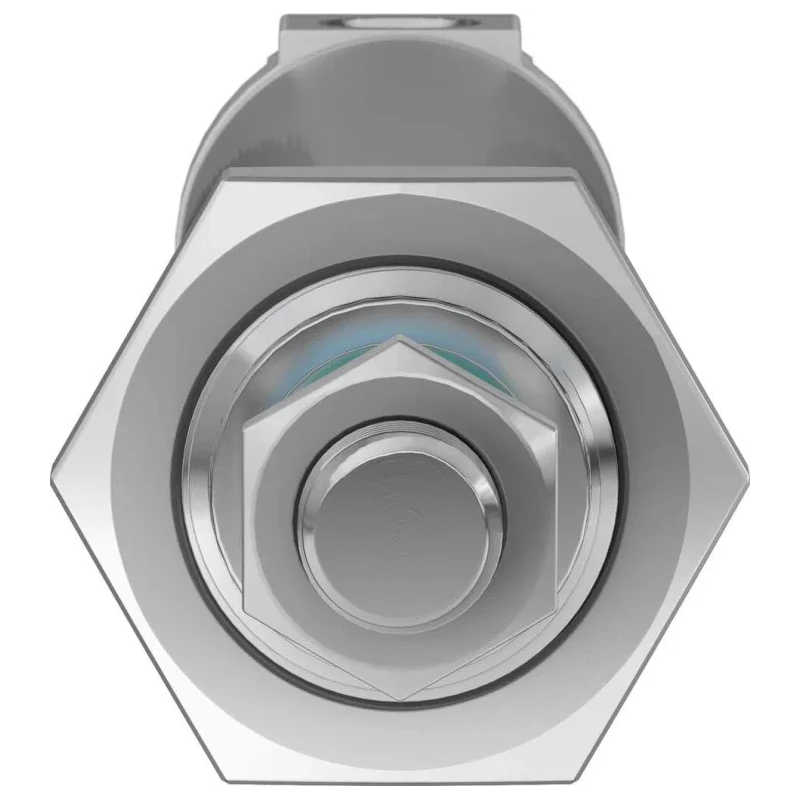

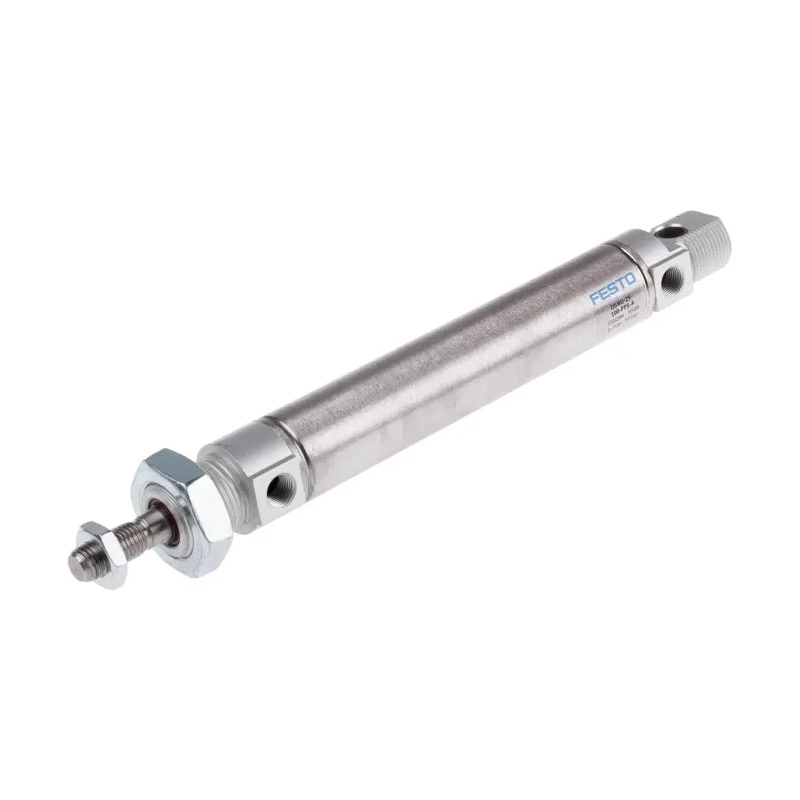

Festo Pneumatic Cylinder 25 mm Bore, 100 mm Stroke, Air Cushion, Rear, Flange, Direct, Swivel, Front & DSNU-25-100-PPS-A

Festo DSNU-25-100-PPS-A pneumatic cylinder is designed for precise and reliable industrial automation tasks, offering a 25 mm bore and 100 mm stroke length. This double-acting cylinder converts compressed air into smooth linear motion with air cushioning at both ends, which self-adjusts to minimize wear and reduce setup time.

The cylinder body is built with durable polyamide and an anodised aluminium cover reinforced by wrought aluminium alloy and high alloy stainless steel, making it suitable for harsh and humid environments. Its versatility is enhanced by multiple mounting options including rear, flange, direct, swivel, front, and foot mounting.

It operates efficiently in a wide temperature range from -20°C to +80°C and supports operating pressures between 1 and 10 bar, ensuring adaptability for various industrial pneumatic applications. The male piston rod features a metric thread standard for compatibility with pneumatic systems and attachments.

This model complies with key industrial standards including ISO 228-1, Germanischer Lloyd, ATEX category for explosion protection, CE marking to EU directives, ISO 1179-1, and ISO 6432, guaranteeing high manufacturing quality and safety.

Typical applications for the DSNU-25-100-PPS-A include automated assembly lines, electronics manufacturing, and hoisting equipment, where consistent linear force and durability are critical.

At 6 bar pressure, the cylinder produces a theoretical force of 247.4 Newtons on retraction strokes and 294.5 Newtons on advance strokes, making it capable of handling medium to heavy-duty tasks with high precision.

Equipped with air cushioning to reduce wear and noise during operation. Constructed from polyamide, anodised aluminium, wrought aluminium alloy, and high alloy stainless steel for corrosion resistance. Compatible with rear, flange, direct, swivel, front, and foot mounting options for versatile installation.

Operates efficiently within temperature ranges from -20°C to 80°C. Designed to handle operating pressures from 1 to 10 bar for varied force requirements. Features a male piston rod with metric thread standard for secure attachment.

Conforms to ISO 228-1, Germanischer Lloyd, ATEX category, CE marking, ISO 1179-1, and ISO 6432 standards. Provides theoretical forces of 247.4N on return strokes and 294.5N on advance strokes at 6 bar pressure. Explore more Pneumatic Cylinders from Festo for your industrial automation needs at EnvMart to enhance system efficiency and reliability.
