Festo Pneumatic Cylinder, 10 mm Stroke Length, 151.5 mm Length, Double Acting, Elastic Cushioning, DSNU-25-10-P-A

Category Pneumatic Cylinder Brand FESTO Condition New

Specifications

Country of Origin Germany
Brand Festo
Length 151.5mm
Model DSNU-25-10-P-A
Mount Type Direct, Swivel, Rear, Screw, Flange, Front, Foot
Series DSNU
Maximum Operating Temperature 80°C
Stroke Length 10mm
Action Type Double Acting
Standards/Approvals Germanischer Lloyd (DSNU-P,DSNU-PPV),ATEX II 2G,II 2D,CE marking to EU Explosion Protection Directive (ATEX), ISO 6432
Cushioning Type Elastic
Piston Rod Gender Male
Piston Rod Thread Standard Metric

Key Features

  • Constructed with an anodised wrought aluminium alloy body for impact and corrosion resistance.
  • Double acting cylinder allows compressed air to push the piston forward and back for versatile motion.
  • Broad operating pressure range from 1 to 10 bar suitable for diverse industrial applications.
  • Lightweight at 238g minimizes strain on machinery and improves efficiency.
  • Operating temperature range from -20°C to +80°C enables use in various environments.
  • Compatible with multiple mount types including direct, swivel, rear, screw, flange, front, and foot mount.
  • Features G1/8 threaded port for widely compatible installation.
  • Suitable for use in food processing, robotics, factory automation, and oil and gas plants.

Product Description

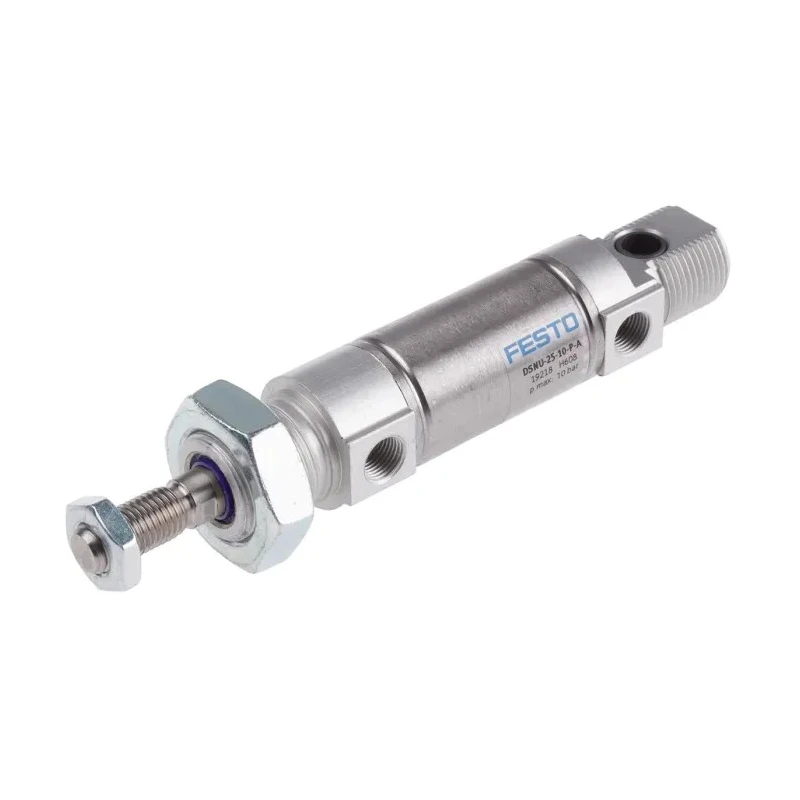

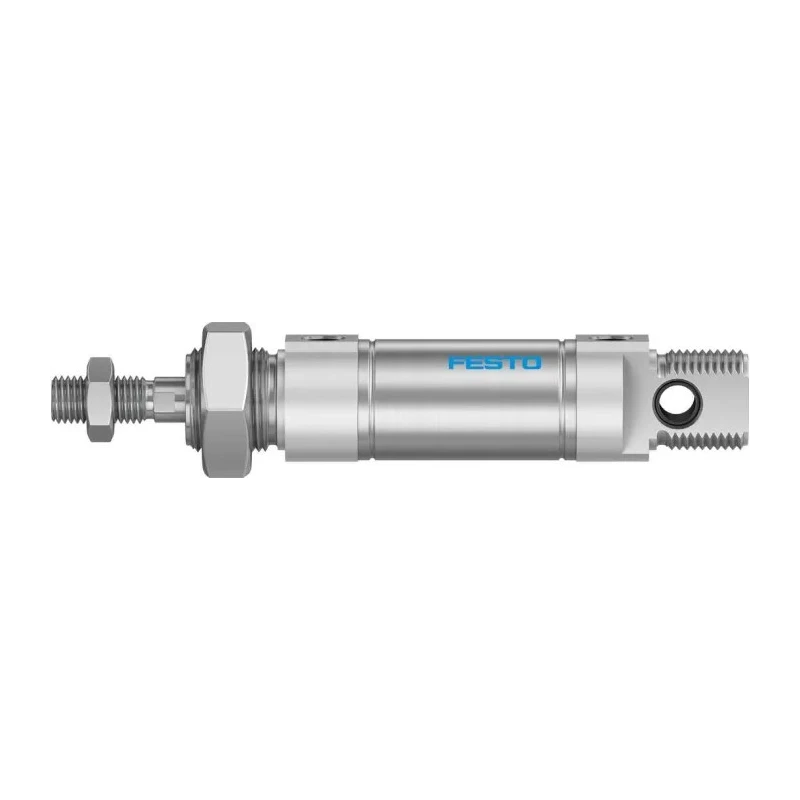

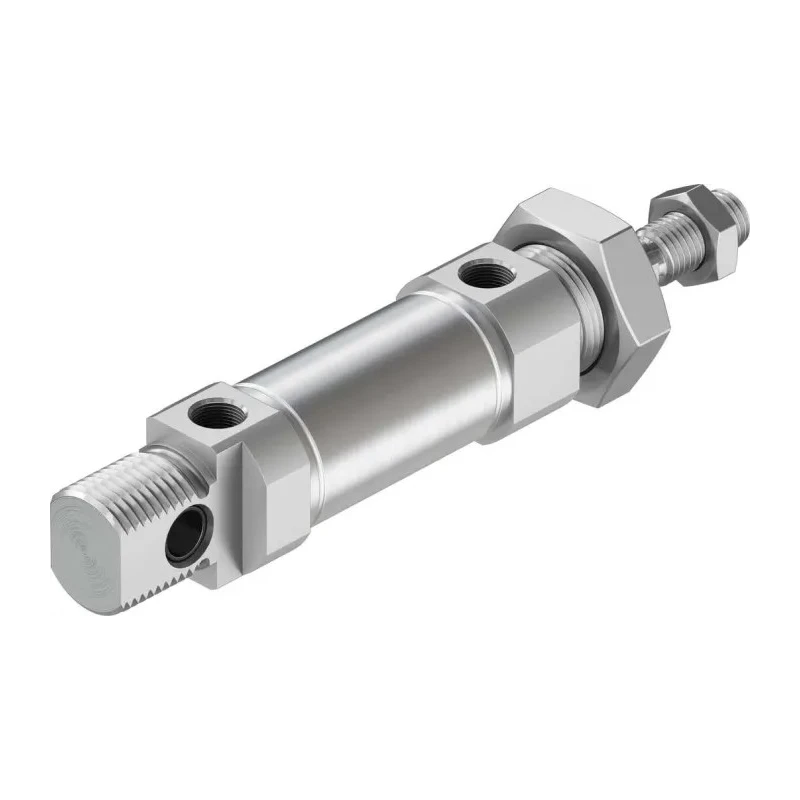

Festo DSNU-25-10-P-A pneumatic cylinder is designed for precise industrial actuation requiring a double acting mechanism. With a compact 10 mm stroke length and an overall length of 151.5 mm, this cylinder provides reliable linear motion driven by compressed air through two ports that alternately move the piston forward and backward.

The robust anodised wrought aluminium alloy construction ensures durability and resistance to impact and corrosion, making it well-suited for harsh industrial environments. Lightweight at only 238 grams, it easily integrates into systems without imposing undue mechanical load.

This pneumatic cylinder supports a broad operating pressure range between 1 and 10 bar and operates safely within a temperature range of -20°C to +80°C. These features allow for versatile installation and use across a wide range of applications, including food processing, robotic systems, factory automation lines, and oil and gas plants.

Mounting options are highly flexible, offering direct, swivel, rear, screw, flange, front, and foot mounting configurations to accommodate several installation needs. The elastic cushioning protects the cylinder and connected mechanisms from impact forces, extending operational life.

The cylinder includes a G1/8 threaded port connection for compatibility with prevailing pneumatic setups. It can be lubricated once when commissioned, requiring continual lubrication thereafter to ensure optimal function.

Anodised aluminium alloy body for corrosion resistance. Double acting for push and pull operations. Multiple mount options available. Lightweight and compact design for flexible integration. Suitable for diverse industrial sectors including food processing, robotics, and oil and gas.

Broad operating pressure and temperature ranges. Elastic cushioning for impact absorption. Threaded G1/8 pneumatic port. Maintenance via lubrication for sustained performance.

This product is manufactured in Germany under Festo's stringent quality standards and certifications including Germanischer Lloyd and ATEX directives, ensuring compliance with European safety and operational protocols.

Discover more Pneumatic Cylinders and industrial automation components in EnvMart's Hydraulic & Pneumatic Tools category to enhance your technical setups and industrial processes.

Festo Pneumatic Cylinder, 10 mm Stroke Length, 151.5 mm Length, Double Acting, Elastic Cushioning, DSNU-25-10-P-A
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The stroke length of this pneumatic cylinder is 10 mm.

The maximum operating temperature for the Festo DSNU-25-10-P-A is 80°C.

This model weighs 238 grams, making it lightweight for easy integration into systems.

The operating pressure range for the Festo DSNU-25-10-P-A is from 1 to 10 bar.

This cylinder supports multiple mounting options including direct, swivel, rear, screw, flange, front, and foot mounts.

It features elastic cushioning, which helps absorb impact forces and extends the operational life of the cylinder.

The Festo DSNU-25-10-P-A complies with Germanischer Lloyd standards, ATEX II 2G, II 2D, and has CE marking to the EU Explosion Protection Directive.

This model is constructed from anodised wrought aluminium alloy, providing impact and corrosion resistance.

The action type of this pneumatic cylinder is double acting, allowing for push and pull operations.

The piston rod thread standard for the Festo DSNU-25-10-P-A is metric.

The overall length of this pneumatic cylinder is 151.5 mm.

This pneumatic cylinder is suitable for various applications including food processing, robotics, factory automation, and oil and gas plants.
