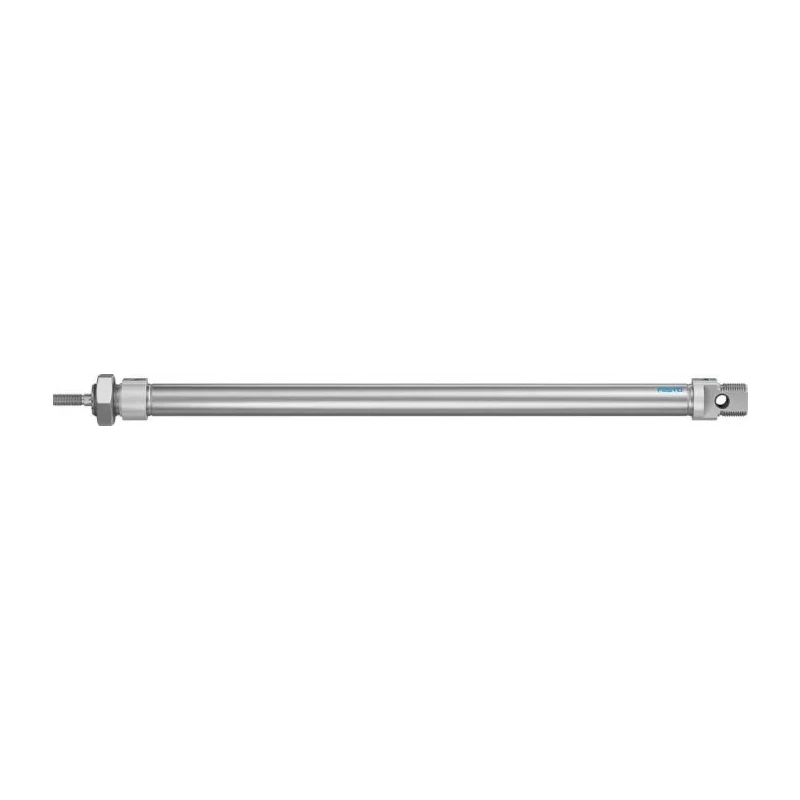

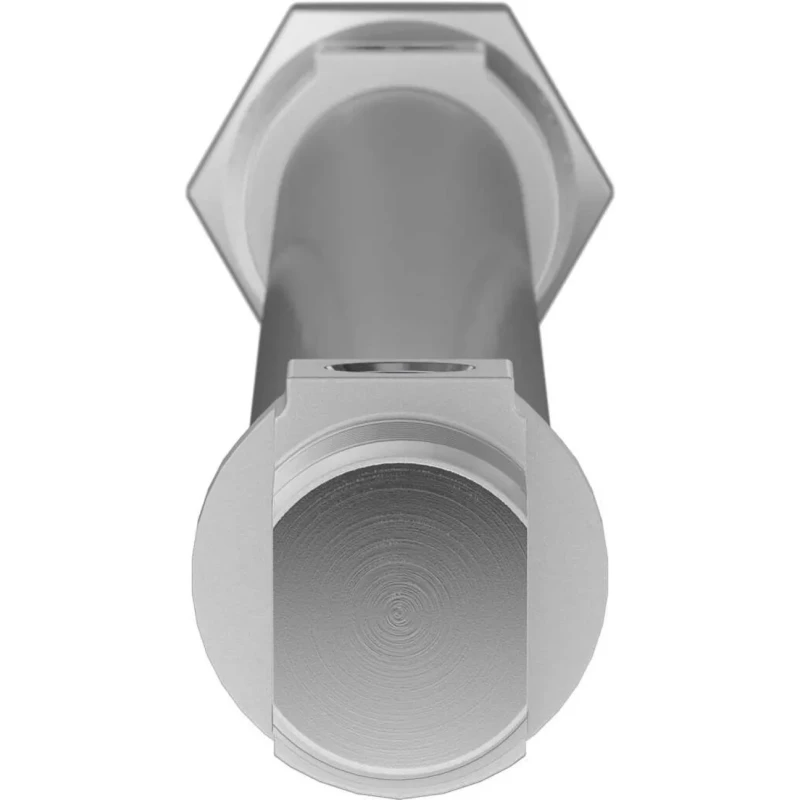

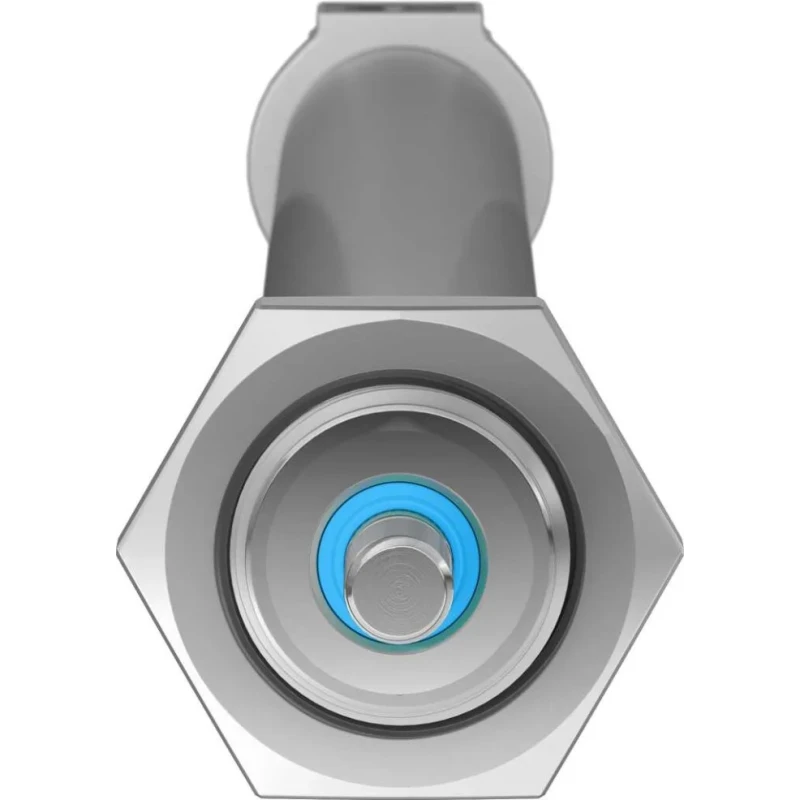

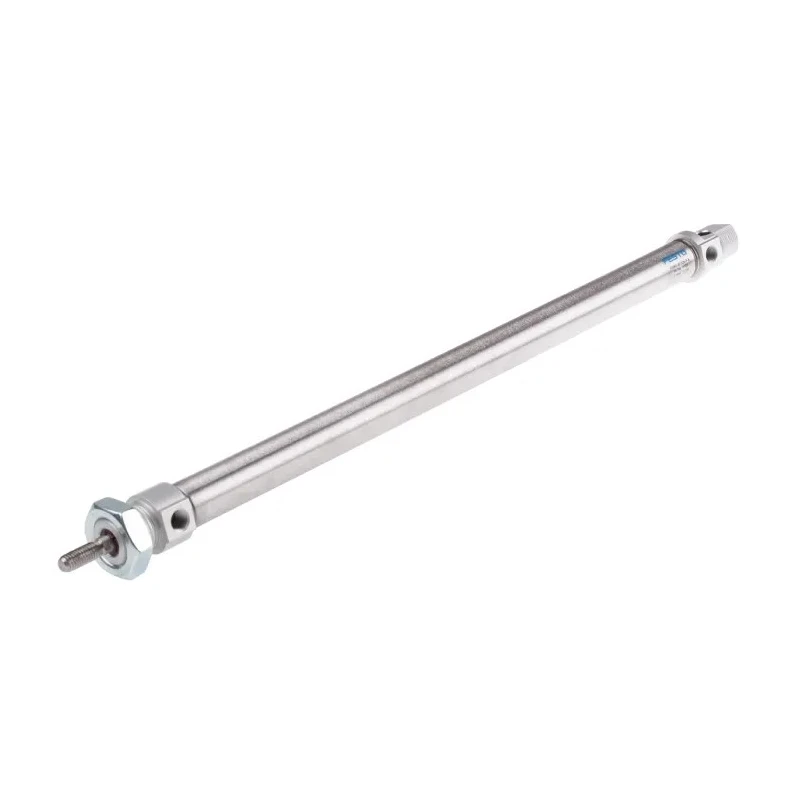

Festo Pneumatic Cylinder 20 mm Diameter 320 mm Stroke 452 mm Length Elastomer Cushioning DSNU-20-320-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Length | 452mm |
| Model | DSNU-20-320-P-A |
| Mount Type | Direct |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 320mm |
| Standards/Approvals | CRC 2/3 to Festo standard FN 940070, ATEX II 2GD, CE (EU Explosion Protection Directive), Germanischer Lloyd, RoHS, ISO 6432 |
| Cushioning Type | Elastomer |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric, ISO 228-1, ISO 1179-1 |
| • The design structure of the cylinder is | Piston, piston rod and cylinder barrel |
| • Forms part of Festo's core product range, Festo Part Number | 34718 |
| • P | Flexible cushioning rings/plates at both ends |
Key Features
- Built to ISO 6432 standard with metric mounting dimensions for interchangeability.
- Double acting operation with G1/8 pneumatic connection ports for both advance and retract function.
- Constructed from high alloy steel piston rod and cylinder barrel for corrosion resistance and long service life.
- Flexible elastomer cushioning rings integrated on both cylinder ends to absorb energy efficiently.
- Male M8 piston rod thread compatible with various mounting accessories.
- Maximum operating temperature of 80°C suitable for diverse industrial environments.
- Can be mounted in any orientation to suit application requirements.
- Conforms to standards including ATEX II 2GD, CE, Germanischer Lloyd, RoHS, and CRC 2/3 to Festo standard FN 940070.
Product Description
Festo DSNU-20-320-P-A pneumatic cylinder is a precision-engineered actuator combining a 20 mm piston diameter with a 320 mm stroke length and overall length of 452 mm. Designed for industrial automation and fluid power applications, this cylinder conforms to ISO 6432 ensuring metric standardized mounting dimensions and interchangeability.
The cylinder adopts a double acting mode of operation with dual G1/8 pneumatic ports allowing compressed air to drive the piston rod forward and backward in a linear motion. Its piston rod and cylinder barrel are crafted from corrosion-resistant high alloy steel, assuring durability and long service life in demanding environments.
Both ends of the actuator barrel are equipped with flexible elastomer cushioning rings to provide smooth operation and energy absorption during piston deceleration, making it especially suitable for low speed and small load applications. The piston rod features a male M8 thread, facilitating mounting with various accessories such as swivel brackets or foot mounts, adaptable to different installation orientations.
With a maximum operating temperature of 80°C, this pneumatic cylinder meets stringent global standards including ATEX II 2GD, CE (EU Explosion Protection Directive), Germanischer Lloyd, RoHS compliance, and CRC 2/3 to Festo standard FN 940070. Manufactured in Germany, it is a core product within Festo’s DSNU series renowned for reliability and versatility.
Built to ISO 6432 standard with metric mounting dimensions for interchangeability. Double acting operation with G1/8 pneumatic connection ports for both advance and retract function. Constructed from high alloy steel piston rod and cylinder barrel for corrosion resistance and long service life.
Flexible elastomer cushioning rings integrated on both cylinder ends to absorb energy efficiently. Male M8 piston rod thread compatible with various mounting accessories. Maximum operating temperature of 80°C suitable for diverse industrial environments.
Can be mounted in any orientation to suit application requirements. Conforms to standards including ATEX II 2GD, CE, Germanischer Lloyd, RoHS, and CRC 2/3 to Festo standard FN 940070.
This pneumatic cylinder is designed for industrial applications such as automation, manufacturing, fluid power systems, and process control where precise linear motion and durability are essential. It is suitable for installation in commercial and industrial environments requiring modular and reliable actuator solutions. Festo DSNU-20-320-P-A offers a balance of robust construction and flexible mounting, making it a versatile choice for pneumatic cylinder needs.
Discover more Pneumatic Cylinders and fluid power solutions in our Industrial Tools & Equipment catalog on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 320 mm.
The overall length of the cylinder is 452 mm, and it features a piston diameter of 20 mm.
The maximum operating temperature for this pneumatic cylinder is 80°C.
It utilizes flexible elastomer cushioning rings at both ends to absorb energy efficiently during operation.
This model conforms to several standards including ATEX II 2GD, CE, Germanischer Lloyd, RoHS, and ISO 6432.
The piston rod features a male M8 thread, which is compatible with various mounting accessories.
Yes, it can be mounted in any orientation to suit application requirements.
It operates in a double acting mode with G1/8 pneumatic connection ports for both advance and retract functions.
The piston rod and cylinder barrel are constructed from high alloy steel for corrosion resistance.
This model is part of the Festo DSNU series.
It is designed for industrial applications such as automation, manufacturing, fluid power systems, and process control.
The mounting type for this pneumatic cylinder is direct.
