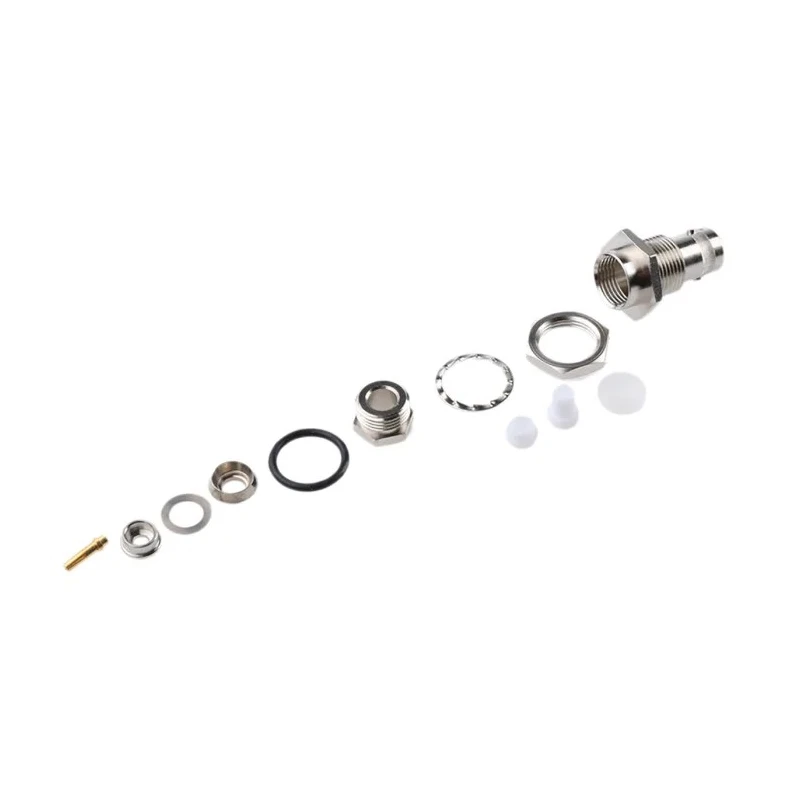

Telegartner BNC Series Coaxial Connector Panel Mount Female BNC 50 Ω Straight Body Clamp J01001A1223
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001A1223 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Clamp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG141A/U, RG142B/U, RG223/U, RG58C/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Features gold-plated beryllium copper contacts for excellent conductivity.
- Supports frequencies up to 4 GHz for reliable signal transmission.
- Nickel-plated body offers robust corrosion resistance.
- Clamp termination ensures secure cable connection.
- Operates within a wide temperature range from -65°C to 165°C.
- Compatible with RG141A/U, RG142B/U, RG223/U, and RG58C/U cable types.
- Designed for panel mounting with a standard size and bulkhead capability.
- Ideal for signal, data, and video transmission applications in industrial and electronic systems.
Product Description
Telegartner J01001A1223 BNC Series Coaxial Connector is a high-quality panel mount female BNC connector designed for reliable coaxial cable connections in electronic systems. This connector features a straight body clamp design with 50 Ω impedance, making it suitable for applications requiring stable signal integrity up to 4 GHz frequency.
The connector’s body is nickel plated for enhanced durability and resistance to environmental factors, while the contacts are manufactured from beryllium copper with gold plating to provide superior conductivity and corrosion resistance. Its clamp termination type offers secure and stable cable fixation, compatible with cable types including RG141A/U, RG142B/U, RG223/U, and RG58C/U.
Operating temperature range from -65°C to 165°C ensures this connector can be used effectively in harsh industrial and laboratory environments. The standard size and bulkhead features facilitate easy panel mounting installation in various equipment setups.
Typical uses for this connector include high-frequency signal transmission, data communication, and video applications in professional electronic, industrial, and communication devices.
Gold-plated beryllium copper contacts ensure excellent electrical conductivity. Bayonet coupling mechanism allows easy connect/disconnect operations with a quarter turn. Body plated with nickel to protect against corrosion and wear.
Supports up to 4 GHz operating frequency. Wide operating temperature range of -65°C to 165°C for diverse environments. Compatible with multiple coaxial cable types including RG141A/U and RG58C/U. Panel mount design with clamp termination for secure connection.
Suitable for industrial, laboratory, construction, and communication system applications. Explore more Coaxial Connectors and electronic components within the EnvMart catalog to suit your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector supports a maximum operating frequency of 4 GHz, ensuring reliable signal transmission for high-frequency applications.
It is compatible with RG141A/U, RG142B/U, RG223/U, and RG58C/U coaxial cable types, allowing for versatile usage in various applications.
The connector operates effectively within a wide temperature range from -65°C to 165°C, making it suitable for harsh environments.
The contacts are made from beryllium copper and are gold-plated for excellent conductivity, while the body is nickel-plated for corrosion resistance.
This model features a clamp termination type, ensuring a secure and stable connection for the coaxial cable.
The connector has a straight body orientation, which is typical for panel mount applications.
This BNC connector has an impedance rating of 50 Ω, making it suitable for various electronic applications that require this specification.
It is designed for panel mounting, facilitating easy installation in various electronic systems and equipment setups.
The connector is manufactured in Germany, ensuring adherence to high standards in production.
It is suitable for signal, data, and video transmission applications in industrial and electronic systems, including communication devices.
This model features a female contact gender, which is standard for BNC connectors used in various applications.
The nickel plating on the body of the connector provides robust corrosion resistance, enhancing its durability in various environments.
