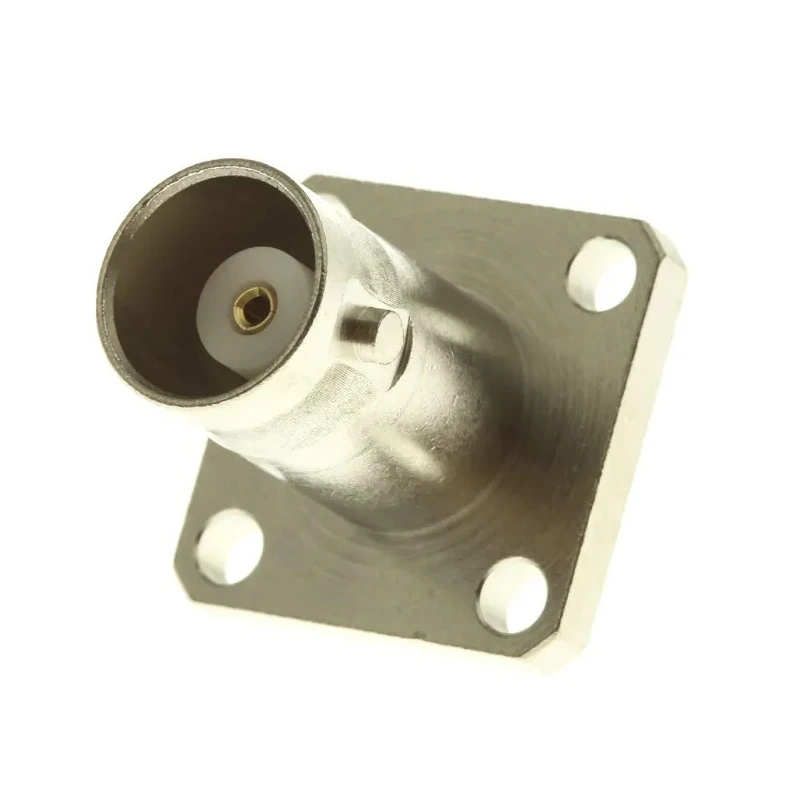

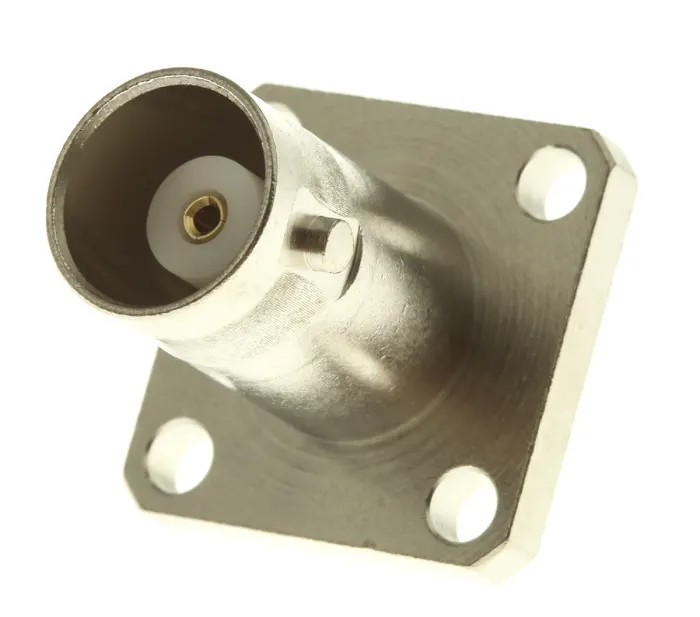

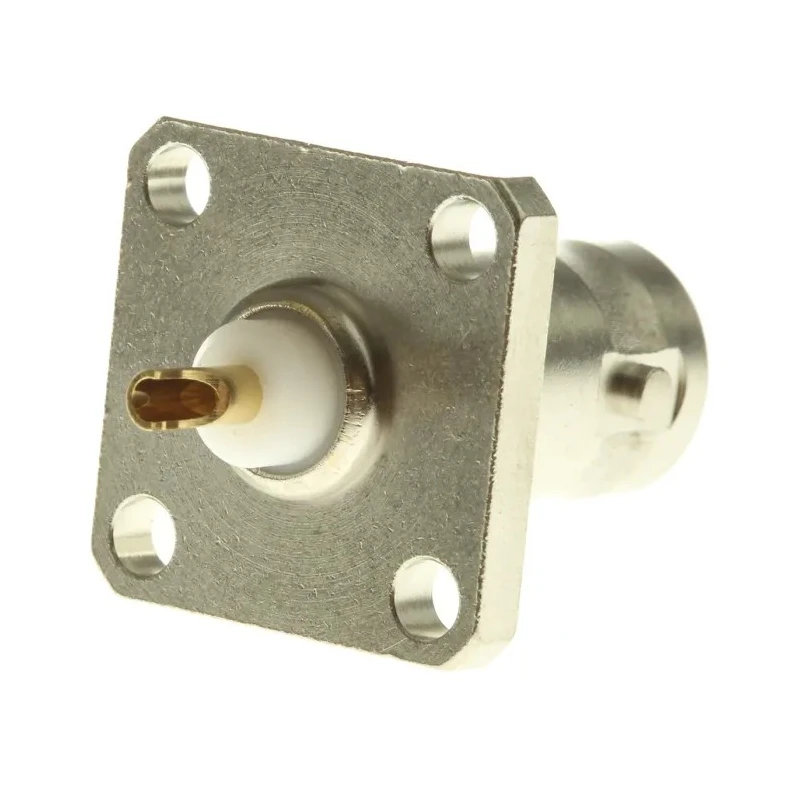

Telegartner BNC Series Coaxial Connector Flange Female 50 Ω Straight Body Solder J01001A0612
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001A0612 |
| Mount Type | Flange |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Features a flange mount type suitable for panel installation.
- Operates efficiently up to a frequency of 4 GHz.
- Constructed with nickel body plating for enhanced durability.
- Contact material is gold-plated beryllium copper ensuring excellent conductivity.
- Designed for a temperature range from -65°C to 165°C.
- Utilizes a bayonet coupling mechanism for quick connect and disconnect.
- Provides an impedance of 50 ohms for standard RF requirements.
- Termination is by solder for secure wiring.
Product Description
Telegartner J01001A0612 BNC Series Coaxial Connector is a flange mount female connector designed for 50 Ω impedance RF applications. This straight body connector features solder termination ensuring reliable signal integrity. It is especially suitable for electronics, telecommunications, and test equipment requiring robust and precise coaxial connections.
The connector operates effectively up to 4 GHz frequency and features a bayonet coupling mechanism allowing efficient quarter-turn mating. Its nickel-plated body resists corrosion and mechanical wear, while the contact tips are crafted from gold-plated beryllium copper for excellent electrical conductivity and longevity.
Designed for use in a wide temperature range from -65°C to 165°C, this connector withstands harsh environments and industrial conditions. The standard flange mount and bulkhead design ease the installation on panels and enclosures, ensuring secure mechanical support.
This Telegartner coaxial connector is ideal for signal, data, and video transmission in industrial, laboratory, telecommunications, manufacturing, and audio-visual applications. Features a flange mount type suitable for panel installation.
Operates efficiently up to a frequency of 4 GHz. Constructed with nickel body plating for enhanced durability. Contact material is gold-plated beryllium copper ensuring excellent conductivity. Designed for a temperature range from -65°C to 165°C.
Utilizes a bayonet coupling mechanism for quick connect and disconnect. Provides an impedance of 50 ohms for standard RF requirements. Termination is by solder for secure wiring. Compact standard size with bulkhead mounting capability.
Manufactured in Germany ensuring high production standards. Explore more Coaxial Connectors and related high-quality components in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently up to a frequency of 4 GHz, making it suitable for various RF applications.
It utilizes solder termination, ensuring secure wiring and reliable signal integrity.
The connector provides an impedance of 50 ohms, which is standard for RF applications.
The contact material is gold-plated beryllium copper, which ensures excellent electrical conductivity.
It is designed to operate within a temperature range from -65°C to 165°C, suitable for harsh environments.
This model features a flange mount type, making it suitable for panel installation.
The connector is constructed with nickel body plating, which enhances durability and resistance to corrosion.
It has a straight orientation, which is typical for many coaxial connections.
It utilizes a bayonet coupling mechanism, allowing for quick connect and disconnect.
This model is manufactured in Germany, ensuring high production standards.
It is ideal for signal, data, and video transmission in industrial, laboratory, telecommunications, and audio-visual applications.
The connector gender is female, designed for compatibility with other male connectors in RF applications.
