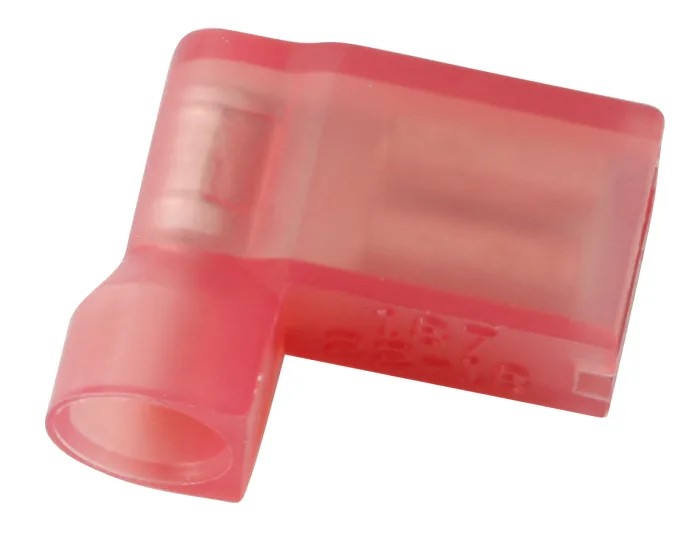

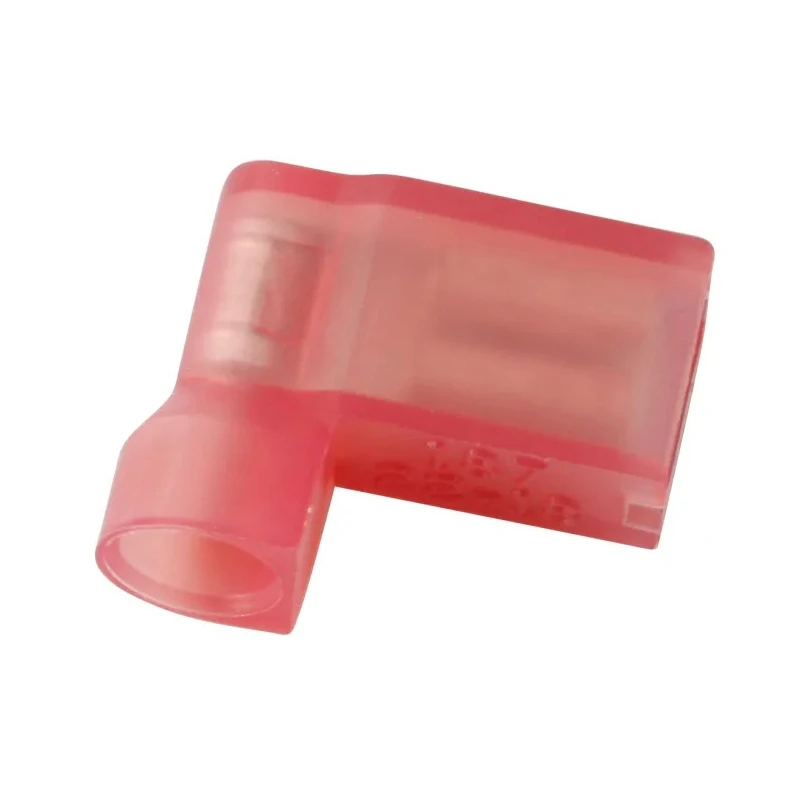

RS PRO Red Insulated Female Spade Connector Crimp 0.8 x 4.75 mm Tab Size 22 AWG to 18 AWG 178-8339

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector Crimp 0.8 x 4.75 mm Tab Size 22 AWG to 18 AWG 178-8339

Name: RS PRO Red Insulated Female Spade Connector Crimp 0.8 x 4.75 mm Tab Size 22 AWG to 18 AWG 178-8339
Brand: RS PRO
SKU: 153814
Price: 0.11 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	300 V max
Brand	RS PRO
Colour	Red
Orientation	Angled
Model	178-8339
Gender	Female
Insulation	Insulated
Overall Length	15mm
Contact Material	Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	0.75mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	4.75mm
Tab Thickness	0.8mm
Tab Size	0.8 x 4.75 mm

Key Features

Constructed with brass contact material for excellent conductivity.
Features nylon insulation to protect against electrical mishaps.
Compatibility with wire gauges 22 AWG to 18 AWG ensures wide applicability.
Designed with a 15 mm overall length and angled orientation for easy installation in tight spaces.
Rated for 300 V maximum voltage to support various electrical needs.
Color-coded red insulation for quick wire size identification.
Crimp termination ensures a secure and durable connection.
Provides protection against dust and liquids with full insulation.

Product Description

RS PRO 178-8339 Red Insulated Female Spade Connector Crimp terminal is engineered to deliver secure and efficient electrical connections. With a robust brass contact plated in tin, this connector ensures high conductivity and corrosion resistance. The full nylon insulation protects against electrical shocks and environmental factors, enhancing connection safety.

This spade connector features an angled design with a 15 mm overall length, allowing for easy crimping and installation in confined spaces. It supports wire sizes between 22 AWG and 18 AWG (0.5mm² to 0.75mm²) making it versatile for many wiring tasks.

The connector is rated for up to 300 volts, making it suitable for use in automotive, industrial, and general electrical applications. The color-coded red insulation simplifies wire size identification, improving efficiency during installation and maintenance.

RS PRO Spade Connectors are fabricated to meet rigorous performance standards, though no formal certifications are indicated. They are ideal for professional electric servicing and automotive wiring, ensuring dependable connectivity where needed.

Installation requires only basic crimping tools and the connector's design facilitates a secure mechanical and electrical connection, minimizing risks of failure. It also provides a shield against dust, liquids, and other contaminants.

Constructed from brass contact material with tin plating for reliable conductivity and corrosion resistance. Nylon insulation provides safety and protects against environmental exposure. Crimp termination offers a robust mechanical and electrical connection.

Angled orientation facilitates installation in hard-to-reach locations. Electrical rating of 300 V max accommodates various applications. Compact 15 mm overall length suits tight wiring assemblies. Red color-coding simplifies correct wire size identification.

Available country of origin: Taiwan, Province Of China. Explore more professional electrical connectors and wire terminal solutions on EnvMart to enhance your project's reliability and safety.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This spade connector is rated for a maximum voltage of 300 V, making it suitable for various electrical applications.

It is compatible with wire gauges from 22 AWG to 18 AWG, which corresponds to minimum and maximum wire sizes of 0.5mm² to 0.75mm².

The overall length of this connector is 15 mm, allowing for installation in tight spaces.

The connector features a brass contact material with tin plating for excellent conductivity and corrosion resistance, along with nylon insulation for safety.

This model utilizes a crimp termination type, ensuring a secure mechanical and electrical connection.

The connector is designed with an angled orientation, which facilitates installation in hard-to-reach locations.

The insulation is color-coded red, which simplifies wire size identification during installation and maintenance.

The tab size of this connector is 0.8 mm in thickness and 4.75 mm in width.

The country of origin for this spade connector is Taiwan, Province Of China.

This model is suitable for automotive, industrial, and general electrical applications, providing dependable connectivity.

The nylon insulation provides protection against electrical shocks and environmental factors, enhancing connection safety.

Installation requires only basic crimping tools, making it straightforward to achieve a secure connection.
