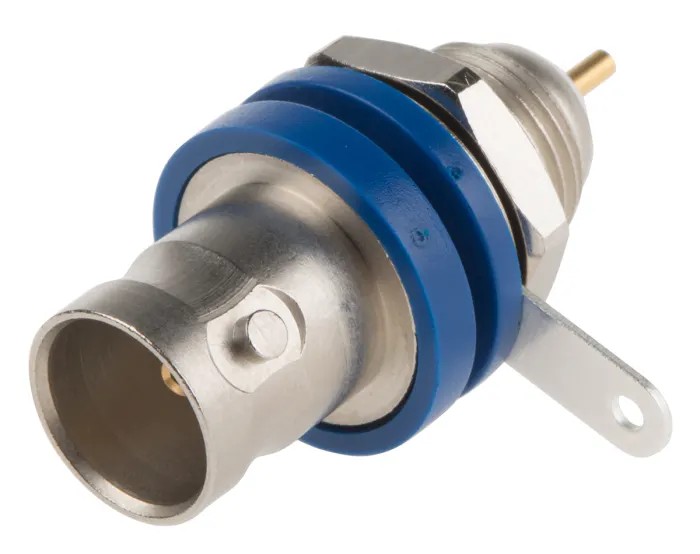

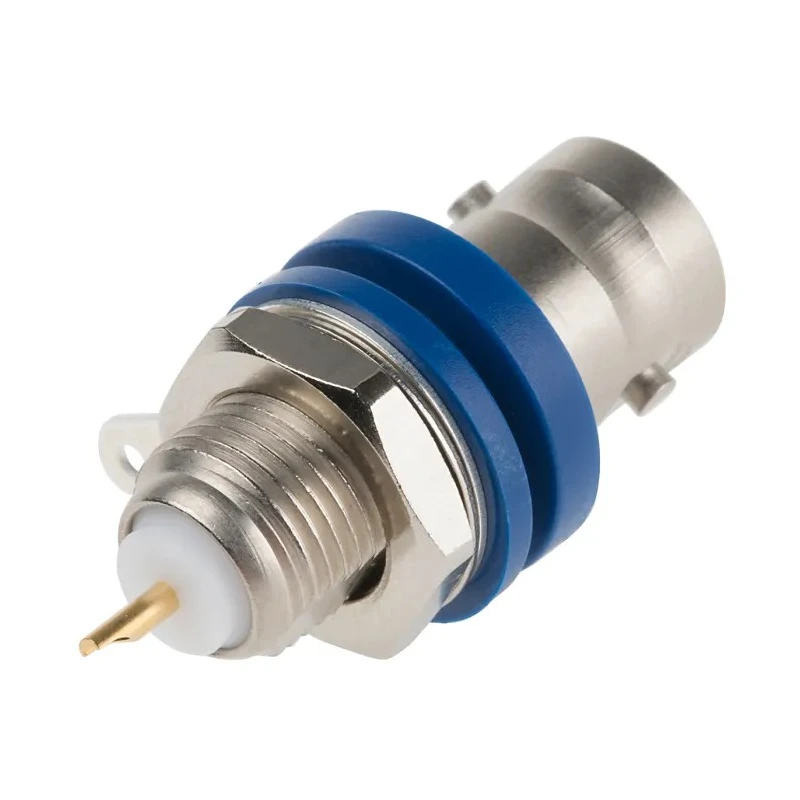

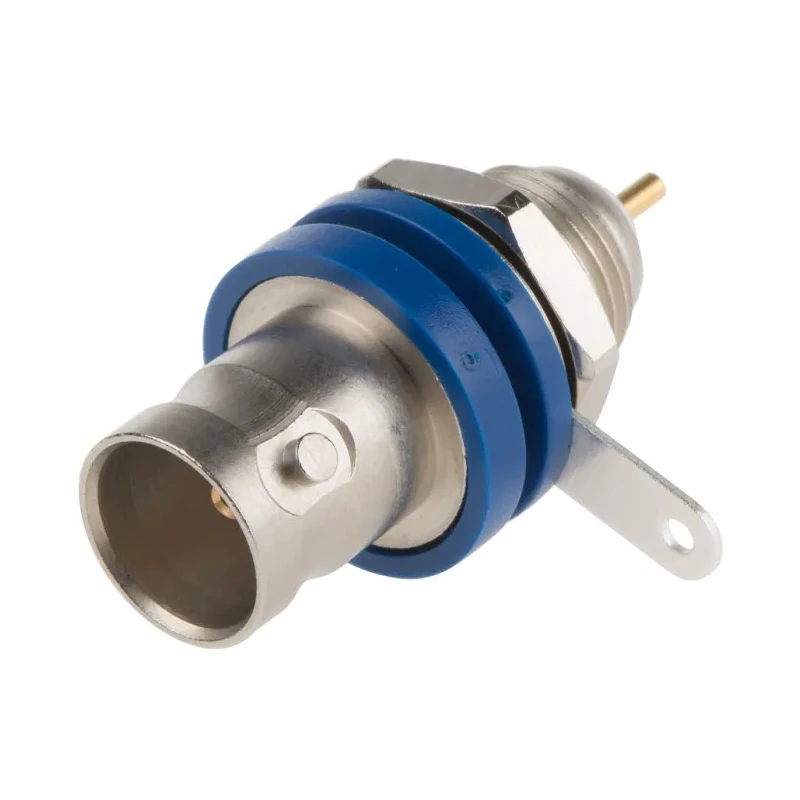

Telegartner BNC Series Coaxial Connector Panel Mount Female, 75 Ω, Straight Body Solder J01003D1286
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01003D1286 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Features a panel mount design for easy installation.
- Operates with an impedance of 75 ohms suitable for high-frequency signals.
- Straight body orientation with female connector gender.
- Constructed with nickel-plated body and gold-plated beryllium copper contacts for corrosion resistance.
- Supports operating frequency up to 4 GHz for wide application range.
- Termination type is solder, ensuring secure and stable connections.
- Operating temperature range from -65°C to 165°C, ensuring performance in harsh environments.
- Simple bayonet coupling mechanism enables quick connect and disconnect.
Product Description
Telegartner J01003D1286 BNC Series Coaxial Connector Panel Mount Female 75 Ω Straight Body Solder is a precision-engineered coaxial connector offering excellent electrical performance designed for electronic, signal, and data transmission applications.
This connector features a panel mount type with a robust nickel-plated body providing exceptional durability and resistance to corrosion. Its gold-plated beryllium copper contacts ensure optimal conductivity and signal integrity over extended use.
The product operates reliably across a wide frequency range up to 4 GHz, making it suitable for RF, video, and data transmission in industrial, commercial, and laboratory environments. The solder termination guarantees secure and permanent cable attachment for stable signal reception and transmission.
Designed for harsh environments, it supports operation in temperatures ranging from -65°C to 165°C. Its straight body orientation and female gender configuration provide versatile connection options in various setups.
The bayonet coupling system allows quick quarter-turn connection and disconnection for ease of maintenance while providing a secure mechanical lock to prevent accidental disconnections.
Features a panel mount design for easy installation. Operates with an impedance of 75 ohms suitable for high-frequency signals. Straight body orientation with female connector gender. Constructed with nickel-plated body and gold-plated beryllium copper contacts for corrosion resistance.
Supports operating frequency up to 4 GHz for wide application range. Termination type is solder, ensuring secure and stable connections. Operating temperature range from -65°C to 165°C, ensuring performance in harsh environments.
Simple bayonet coupling mechanism enables quick connect and disconnect.
This connector is widely used in electronic components, power and connectors assemblies, RF and coaxial connector systems, and is suited for applications in signal processing, data transmission, and video systems across industrial, manufacturing, telecommunications, and laboratory settings.
Explore the comprehensive selection of Telegartner Coaxial Connectors on EnvMart for reliable, high-quality solutions to your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an impedance of 75 ohms, making it suitable for high-frequency signals.
It supports an operating frequency of up to 4 GHz, allowing for a wide range of applications in RF, video, and data transmission.
The operating temperature range is from -65°C to 165°C, ensuring performance in harsh environments.
This model features a solder termination type, ensuring secure and stable connections for reliable signal transmission.
It is constructed with a nickel-plated body and gold-plated beryllium copper contacts, providing corrosion resistance and optimal conductivity.
This BNC connector is designed for panel mount installation, which facilitates easy integration into various setups.
This model has a female connector gender, allowing it to connect with male counterparts in coaxial systems.
It features a straight body orientation, providing versatile connection options in different configurations.
It employs a simple bayonet coupling mechanism, enabling quick connect and disconnect while ensuring a secure mechanical lock.
The country of origin for this connector is Germany.
It is widely used in electronic components, RF and coaxial connector systems, and is suited for signal processing, data transmission, and video systems across various industries.
This connector is classified as a standard size, making it compatible with a variety of equipment and setups.
