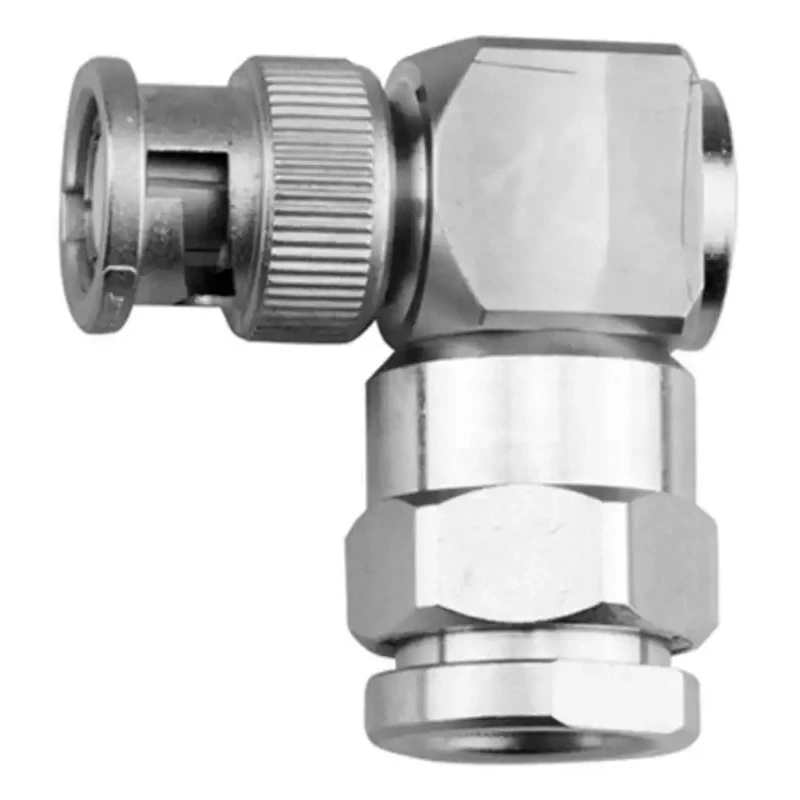

Telegartner BNC Series Coaxial Connector Cable Male BNC 50 Ω Right Angle Body Clamp J01000B1195

Free Delivery in India | Lowest Global Shipping Charges

Telegartner BNC Series Coaxial Connector Cable Male BNC 50 Ω Right Angle Body Clamp J01000B1195

Name: Telegartner BNC Series Coaxial Connector Cable Male BNC 50 Ω Right Angle Body Clamp J01000B1195
Brand: Telegartner
SKU: 185383
Price: 48.46 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Telegartner
Orientation	Right Angle
Model	J01000B1195
Mount Type	Cable
Operating Frequency	4GHz
Contact Material	Beryllium Copper
Series	BNC
Termination Type	Clamp
Maximum Operating Temperature	165°C
Cable Type	RG213/U
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	BNC
Body Plating	Nickel

Key Features

Constructed with beryllium copper contacts plated in gold for excellent conductivity.
Features a nickel-plated body for robust durability and corrosion resistance.
Rated for operation up to 4 GHz frequency, suitable for high-frequency applications.
Clamp termination type ensures reliable and tight cable attachment.
Operates in temperatures ranging from -65°C to 165°C for versatile environmental use.
Bayonet coupling mechanism allows quick connect and disconnect with a quarter turn.
Compatible with RG213/U cable type and standard size for broad usability.
Made in Germany, ensuring high manufacturing standards and quality.

Product Description

Telegartner J01000B1195 BNC Series Coaxial Connector Cable Male BNC is designed for reliable signal transmission with a 50 Ω impedance and right angle body clamp configuration. It is engineered for use in electronic components, connectors, and RF coaxial connector applications requiring robust and efficient cabling solutions.

The connector features high-quality beryllium copper contacts with gold plating that provide excellent electrical conductivity and resistance to wear. Its robust nickel-plated housing enhances durability and corrosion resistance in various industrial and electronic environments.

Rated to operate efficiently at frequencies up to 4 GHz, this cable connector is ideal for signal, data, and video transmission applications in industrial, laboratory, and commercial settings. Its clamp termination design ensures a secure and stable cable connection, minimizing signal loss and mechanical failures.

Operating within a broad temperature range from -65°C to 165°C, the connector performs reliably in harsh and demanding conditions. Utilization of RG213/U cable type and adherence to standard size dimensions allow this BNC connector to fit a wide variety of coaxial cables and assemblies.

The simple bayonet coupling mechanism ensures user-friendly installation and dismounting with just a quarter turn, facilitating maintenance and adjustments in signal systems. Constructed with beryllium copper contacts plated in gold for excellent conductivity.

Features a nickel-plated body for robust durability and corrosion resistance. Rated for operation up to 4 GHz frequency suitable for high-frequency applications. Clamp termination type ensures reliable and tight cable attachment.

Operates in temperatures ranging from -65°C to 165°C for versatile environmental use. Bayonet coupling mechanism allows quick connect and disconnect with a quarter turn. Compatible with RG213/U cable type and standard size for broad usability.

Manufactured in Germany to meet high-quality standards.

This connector is essential for industrial, laboratory, communication, and commercial electronics systems requiring dependable coaxial cable connectivity. Explore additional Coaxial Connectors and related components in EnvMart's comprehensive catalogue.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector is rated for operation up to 4 GHz, making it suitable for high-frequency applications.

It is compatible with RG213/U cable type, allowing for broad usability in various applications.

This connector operates effectively in temperatures ranging from -65°C to 165°C, suitable for diverse environmental conditions.

The contacts are made of beryllium copper plated in gold for excellent conductivity, while the body is nickel-plated for durability and corrosion resistance.

The bayonet coupling mechanism allows for quick connect and disconnect with a simple quarter turn, facilitating easy installation and maintenance.

This model features a clamp termination type, ensuring a reliable and tight cable attachment to minimize signal loss.

This connector has a right angle orientation, which can be advantageous in space-constrained installations.

The connector has an impedance rating of 50 Ω, which is standard for many RF applications.

This model features a male connector gender, suitable for connecting to female counterparts in coaxial systems.

This connector is manufactured in Germany, ensuring adherence to high manufacturing standards.

This connector belongs to the BNC series, which is commonly used for coaxial cable connections in various applications.

It is classified as a standard size, allowing compatibility with a wide range of coaxial cables and assemblies.
