Pico Technology PC Based Oscilloscope 100 MHz Bandwidth, 2-Channel, USB Powered PicoScope 2206B

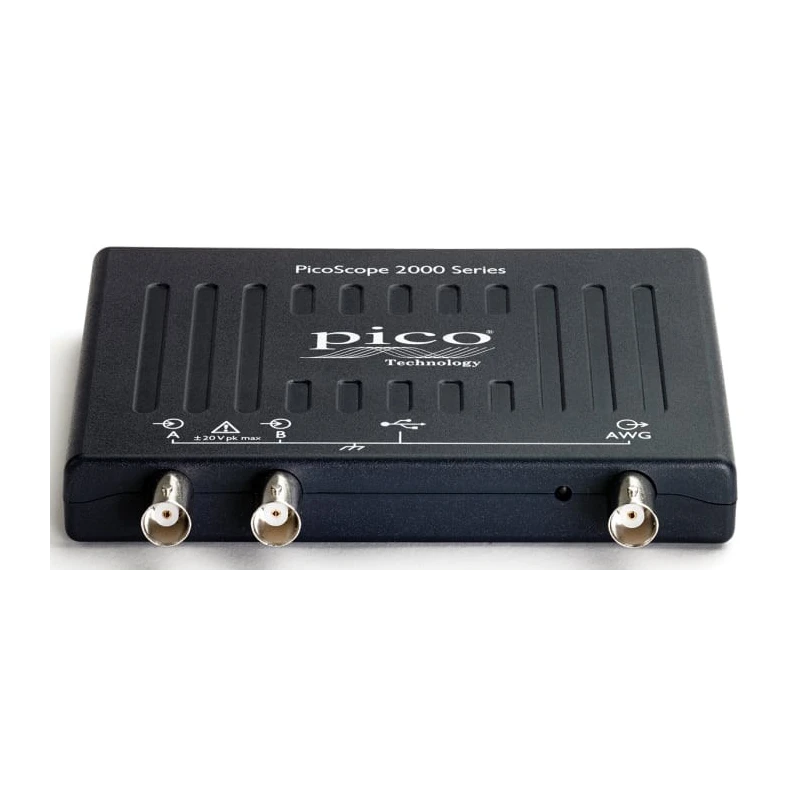

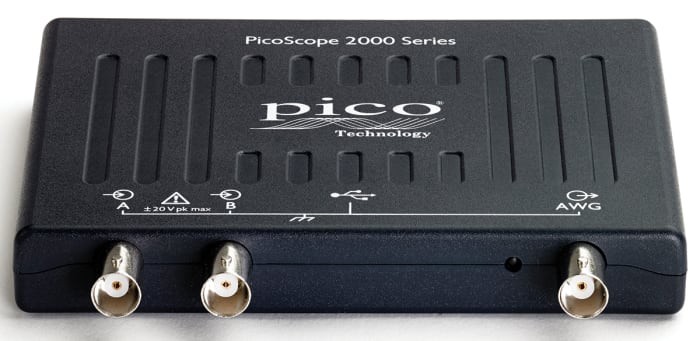

Pico Technology PicoScope 2206B is a 2-channel, PC based oscilloscope with 100 MHz bandwidth designed for precision electronic signal measurement and analysis. USB powered and compact, it conveniently sits beside the circuit under test without occupying valuable bench space.

The oscilloscope's high-speed USB interface allows seamless connection to Windows and Linux PCs and laptops, providing fast data transfer and power so no bulky external supply is needed. This model features a sample rate of 500 MS/s and supports a minimum time base of 1 ns/div, enabling detailed visualization of fast transient signals.

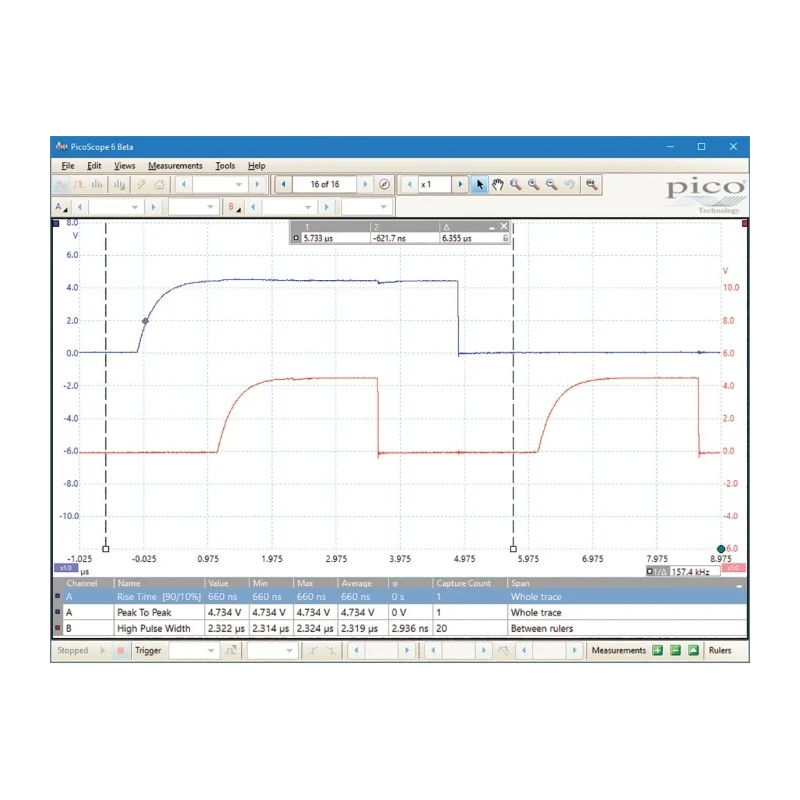

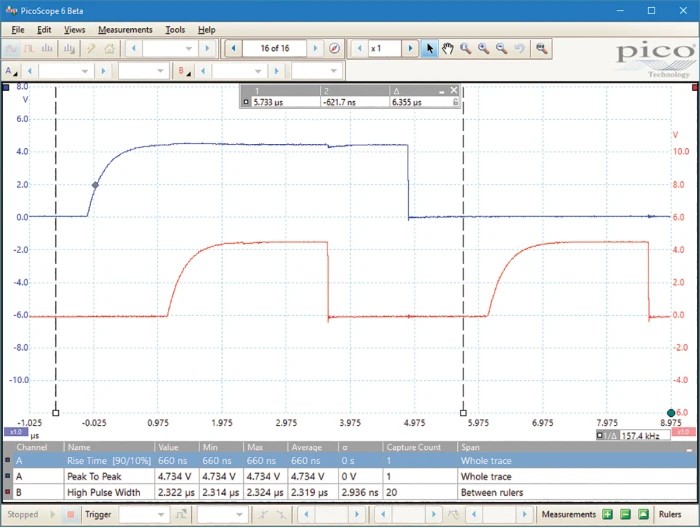

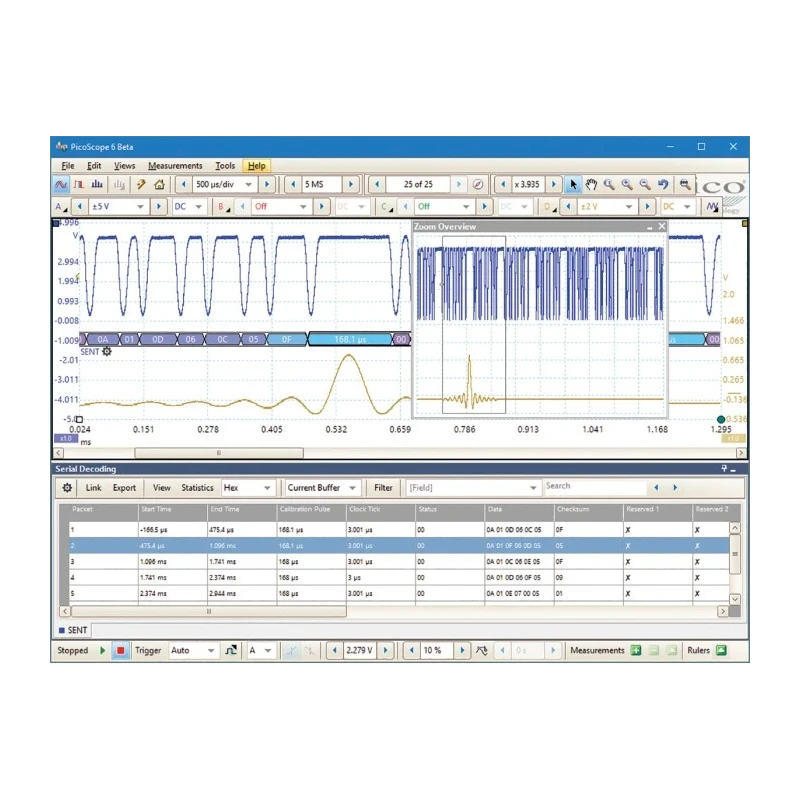

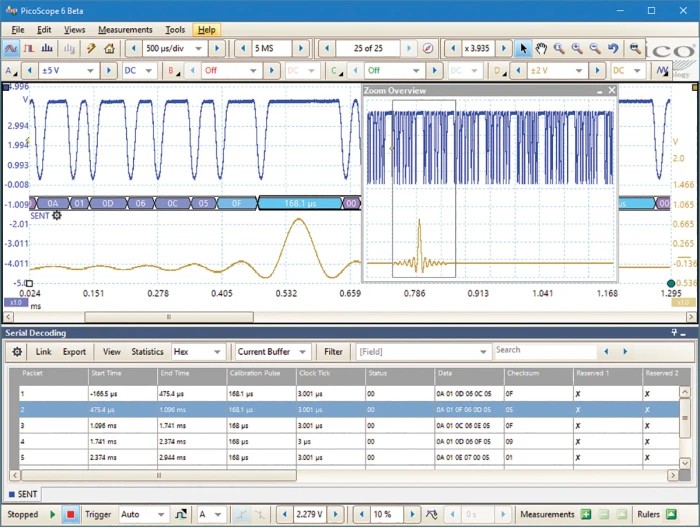

PicoScope6 software, included with the device, offers enhanced functionalities such as serial decoding, mask limit testing, and waveform buffer memory of 10,000 waves. Advanced trigger options and equivalent-time sampling modes make it a versatile instrument for applications in design, manufacturing, testing, education, fault diagnosis, and repair.

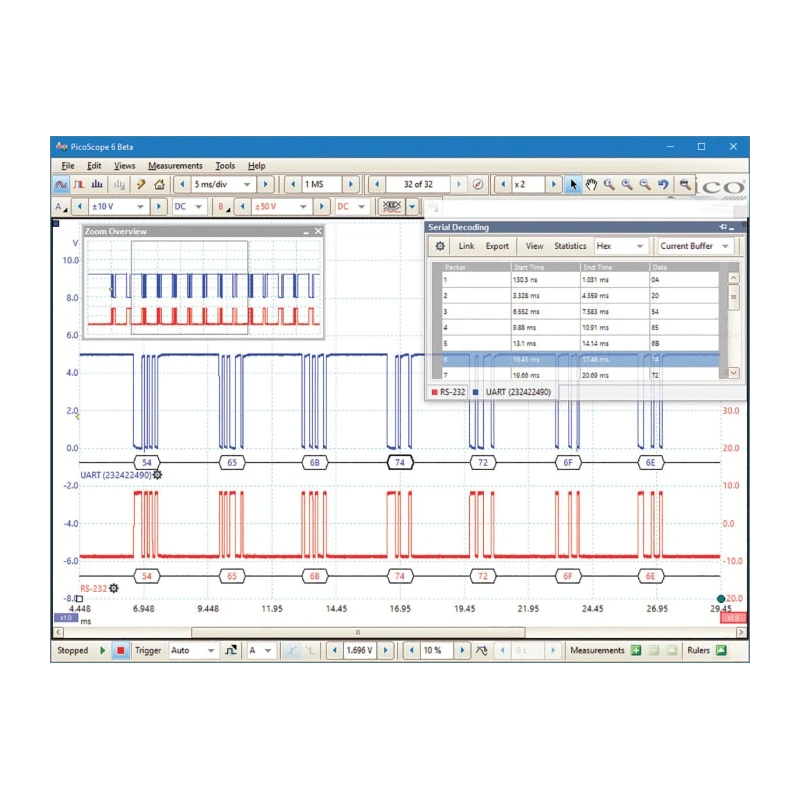

Interfaces supported include CAN, IIC, LIN, RS232, SPI, UART, and USB, facilitating versatile measurement tasks in automotive, industrial, and consumer electronics development. The ergonomic design incorporates 2 x 60 MHz probes, a USB connection cable, quick start guide, and reference CD containing software and example programs for various platforms including C, Visual Basic, Excel VBA, and LabVIEW.

Certified to standards EN 61010-1:2010 and EN 61326-1:2006, this oscilloscope meets safety and EMC requirements for professional use. The compact size with dimensions 130 mm length, 104 mm width, and 18.8 mm height, combined with 8-bit vertical resolution and 7 ns rise time, deliver accurate signal acquisition for complex analysis.

Its low vertical sensitivity starting from 4 mV/div to 4 V/div maximum allows detailed signal amplitude measurements. Ideal for industrial, laboratory, educational, and electronics repair applications, the PicoScope 2206B is a reliable high-performance PC based oscilloscope solution.

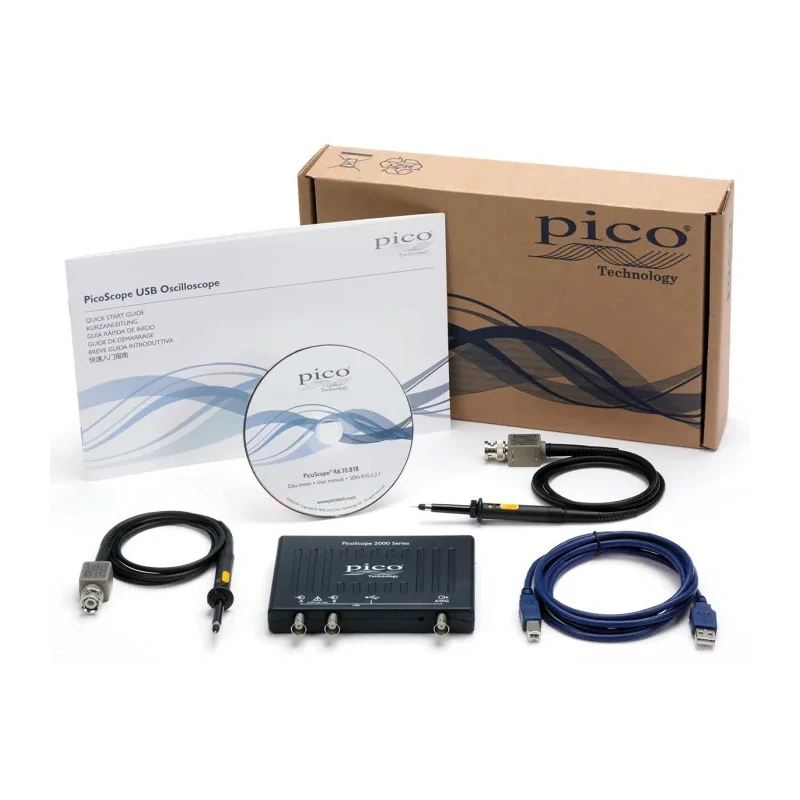

Set contents include the PicoScope 2206B oscilloscope device, two 60 MHz probes, USB cable, Quick Start guide, and software with reference CD. Explore high-quality Oscilloscopes and test & measurement instruments at EnvMart for your precision measurement needs.

Features a bandwidth of 100 MHz suitable for detailed waveform analysis. Includes two input channels for simultaneous dual-signal measurement. Compact and lightweight design ideal for benchtop or field use. USB powered with fast data transfer and eliminates the need for an external power supply.

Includes PicoScope6 software that supports serial decoding and mask limit testing. Offers sample rates up to 500 MS/s for accurate real-time data capture. Supports multiple interface protocols including CAN, IIC, LIN, RS232, SPI, UART, and USB.

Comes with two 60 MHz probes, USB cable, quick start guide, and software CD. Equipped with advanced digital triggers and persistence display modes. Applications include design, testing, education, fault finding, and servicing.
