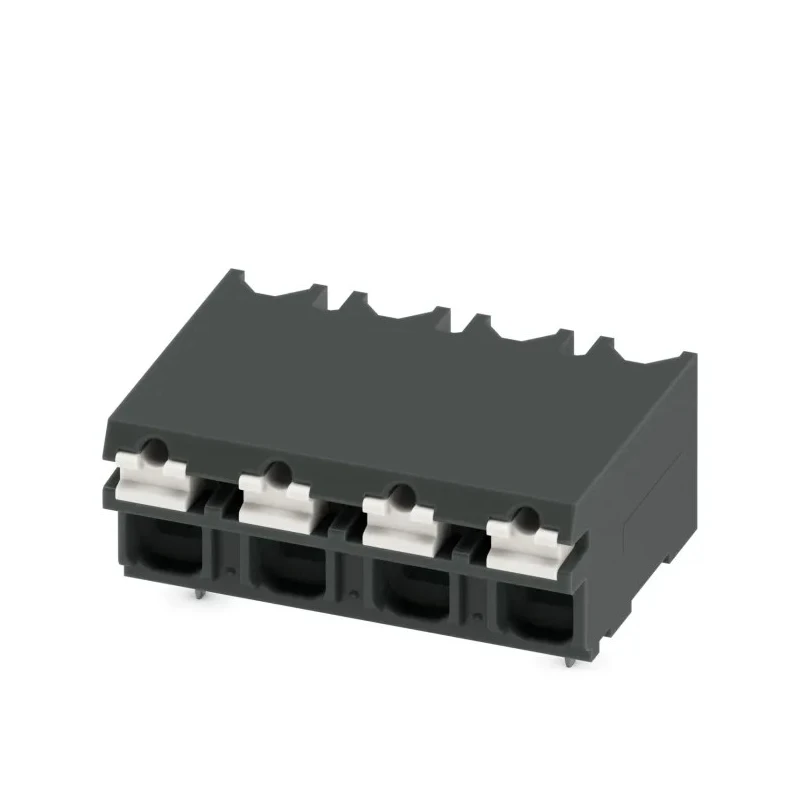

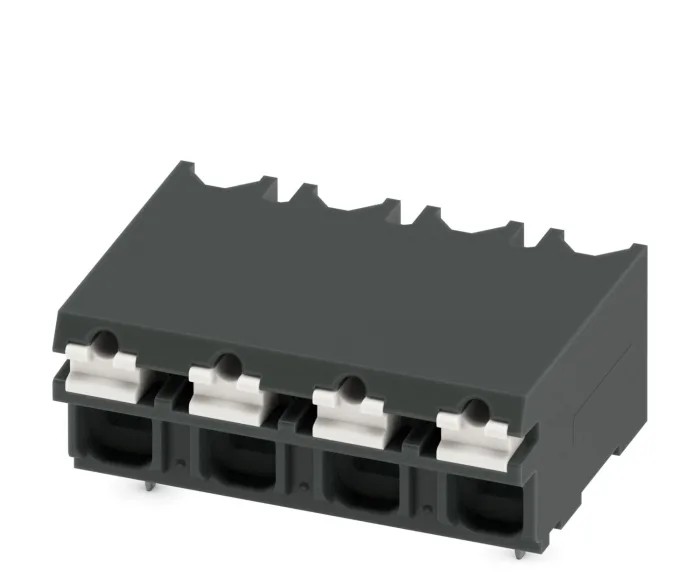

Phoenix Contact SPT-SMD 1.5/ 4-H-5.08 R44 Series PCB Terminal Block 4-Contact 5.08 mm Pitch Surface 1 Row 1824873
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 19.24mm |
| Model | 1824873 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 4-H-5.08 R44 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 4 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Designed for currents up to 13.5 A and voltages up to 500 V.
- Features spring actuation lever for easy conductor connection and disconnection.
- Supports wire sizes from 0.2 mm² (24 AWG) to 1.5 mm² (16 AWG).
- Constructed from durable liquid crystal polymer housing in black color.
- Includes push-in spring technology for secure, tool-free wire connection.
- Horizontal and vertical versions available with PCB anchoring pins and soldering pins.
- Tape on reel packaging allows automated assembly via the reflow process.
Product Description
Phoenix Contact 1824873 PCB Terminal Block from the SPT-SMD 1.5/ 4-H-5.08 R44 series offers a reliable solution for PCB electrical connections with 4 contacts, a 5.08 mm pitch, surface mount type, and 1 row layout. It is engineered for applications requiring up to 13.5 amperes current and 500 volts voltage rating, supporting wire sizes from 0.2 mm² (24 AWG) up to 1.5 mm² (16 AWG).
This terminal block features a spring actuation lever that facilitates easy and secure wiring without the need for additional tools. The use of push-in spring connection technology combines spring cage and direct push-in designs, optimizing connection reliability while minimizing assembly time and cost.
The housing is made from liquid crystal polymer, providing durability and electrical insulation. Its black coloration supports easy identification and integration.
These terminal blocks are supplied in tape-on-reel packaging compliant with IEC 60283-3 standards, suitable for automated pick-and-place machines and reflow soldering processes. Horizontal variants include anchoring pins for precise PCB positioning, while vertical variants have twin soldering pins for enhanced mechanical stability.
This product is ideal for use in industrial electronics, electronic component assemblies, control panels, and other electrical devices requiring compact and efficient PCB connection solutions.
Designed for currents up to 13.5 A and voltages up to 500 V. Spring actuation lever enables effortless conductor connection and disconnection. Compatible with wire sizes 0.2 mm² to 1.5 mm² (24 to 16 AWG). Housing made from liquid crystal polymer for durability and insulation.
Push-in spring technology provides secure, tool-free wire attachment. Supports both horizontal and vertical mounting on PCB with anchoring and soldering pins. Supplied in tape-on-reel packaging for automated assembly compatibility.
Compact size dimensions suitable for high-density circuit board layouts.
Choose Phoenix Contact terminal blocks for reliable, efficient PCB wiring solutions in electronic manufacturing, laboratory instrumentation, industrial controls, and HVAC equipment. Explore related products and more technical solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 13.5 A.
It can handle voltages up to 500 V.
It supports wire sizes ranging from 0.2 mm² (24 AWG) to 1.5 mm² (16 AWG).
The pitch of the contacts is 5.08 mm.
The housing is constructed from liquid crystal polymer.
It utilizes a push-in spring connection method for secure, tool-free wire attachment.
The dimensions are 19.24 mm in length, 13.6 mm in depth, and 7.7 mm in width.
Yes, it is supplied in tape-on-reel packaging, making it compatible with automated pick-and-place machines and reflow soldering processes.
The orientation of this model is straight.
This model features 4 contacts.
It belongs to the SPT-SMD 1.5/ 4-H-5.08 R44 series.
The country of origin for this terminal block is Germany.
